MCPBearings, Spherical Rod End · Female
MSFL-3S

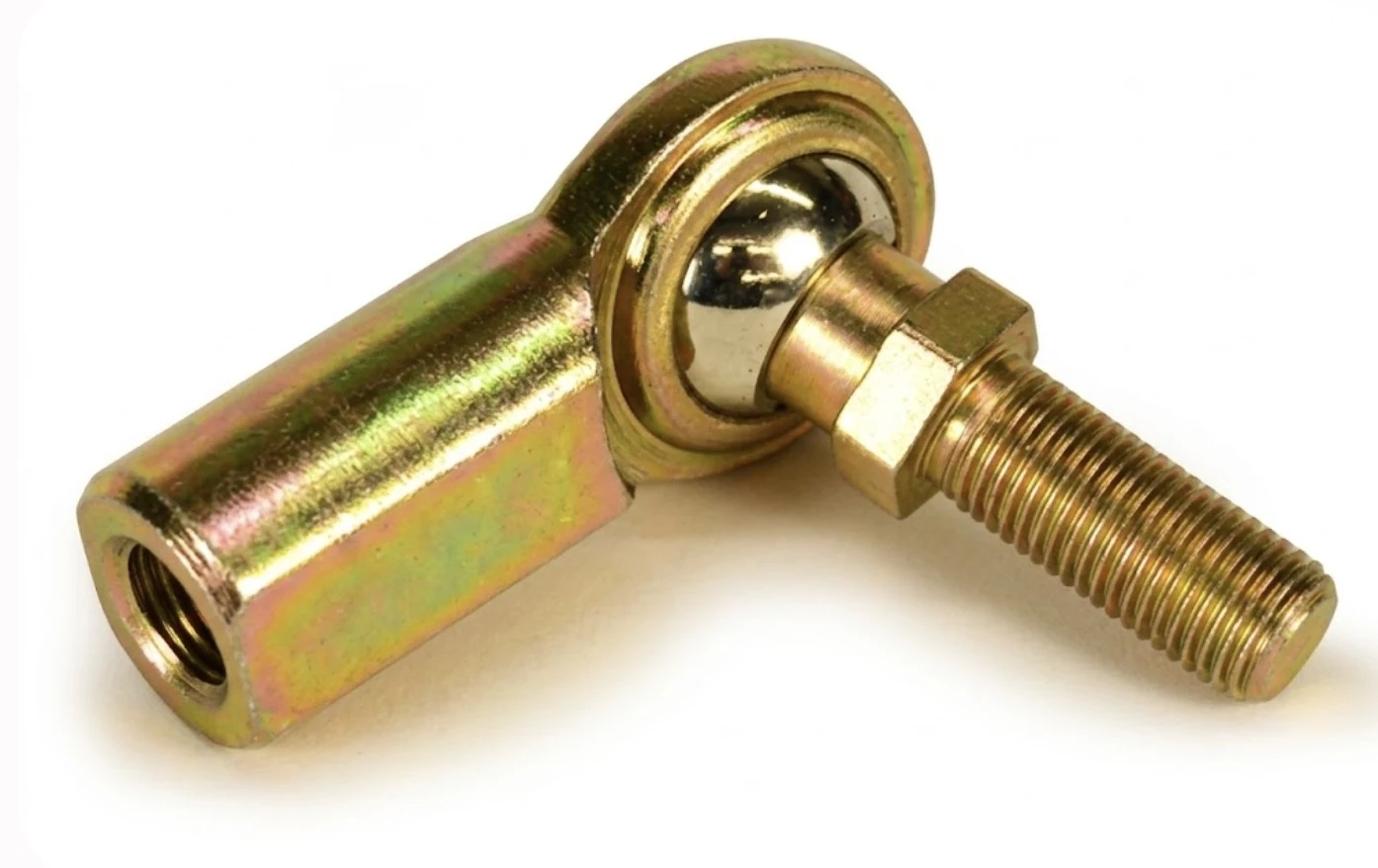

MSFL-3S, Bearings, Spherical Rod End, Female 10-32 LH Steel Housing, Steel Race with Integral Ball Stud

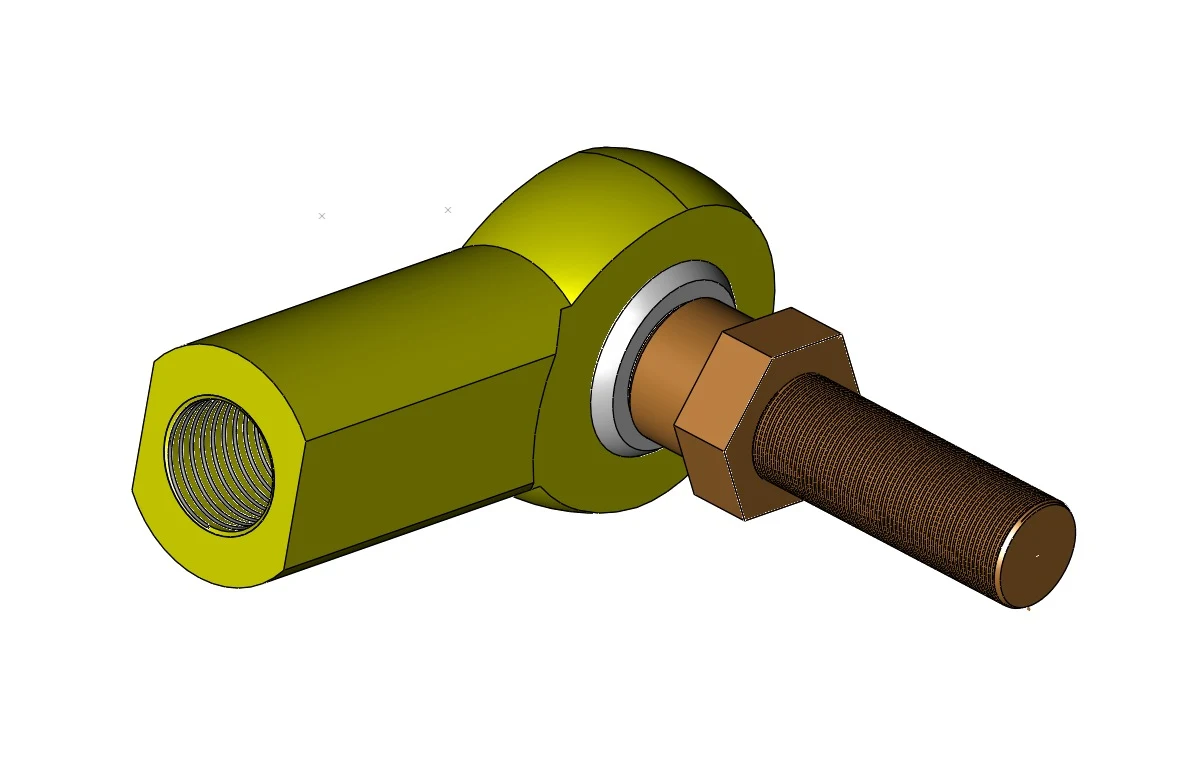

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$25.35 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 LH |
|---|---|
| Housing construction | Steel |
| Race material | Steel |
| Stud included | Yes |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $25.35 |
| 2+ | $20.10 |
| 3+ | $17.07 |
| 4+ | $16.65 |
| 5+ | $15.03 |
| 10+ | $11.23 |
| 30+ | $9.80 |
| 50+ | $9.18 |
| 100+ | $7.75 |
| 200+ | $6.63 |
Drawing dimensions
| Threads | 10-32 LH |
|---|---|
| Stud Included | Studded |
| Plating | Zinc Yellow |
| A | 0.190 |
| B | 0.125 |
| D | 0.437 |
| E | 0.437 |
| F | 0.312 |
| G | 1.062 |
| H | 0.562 |
| J | 0.625 |
| M | 0.250 |
| N | 0.312 |
| O | 0.406 |
| P | 0.312 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: The MSF-series features a close fit between the ball and the low carbon steel housing that allows the housing member itself to act as the bearing race. The ball is low carbon steel, surface hardened for wear resistance and plated for corrosion resistance. The housing is plated and dichromate treated for corrosion resistance.
Mounting Stud: an optional feature specified by adding an "S" after the nominal size (i.e., MSF-6S), mounting studs are made from low carbon steel, and are plated and dichromate treated for corrosion resistance. Standard stud threads are right hand.
