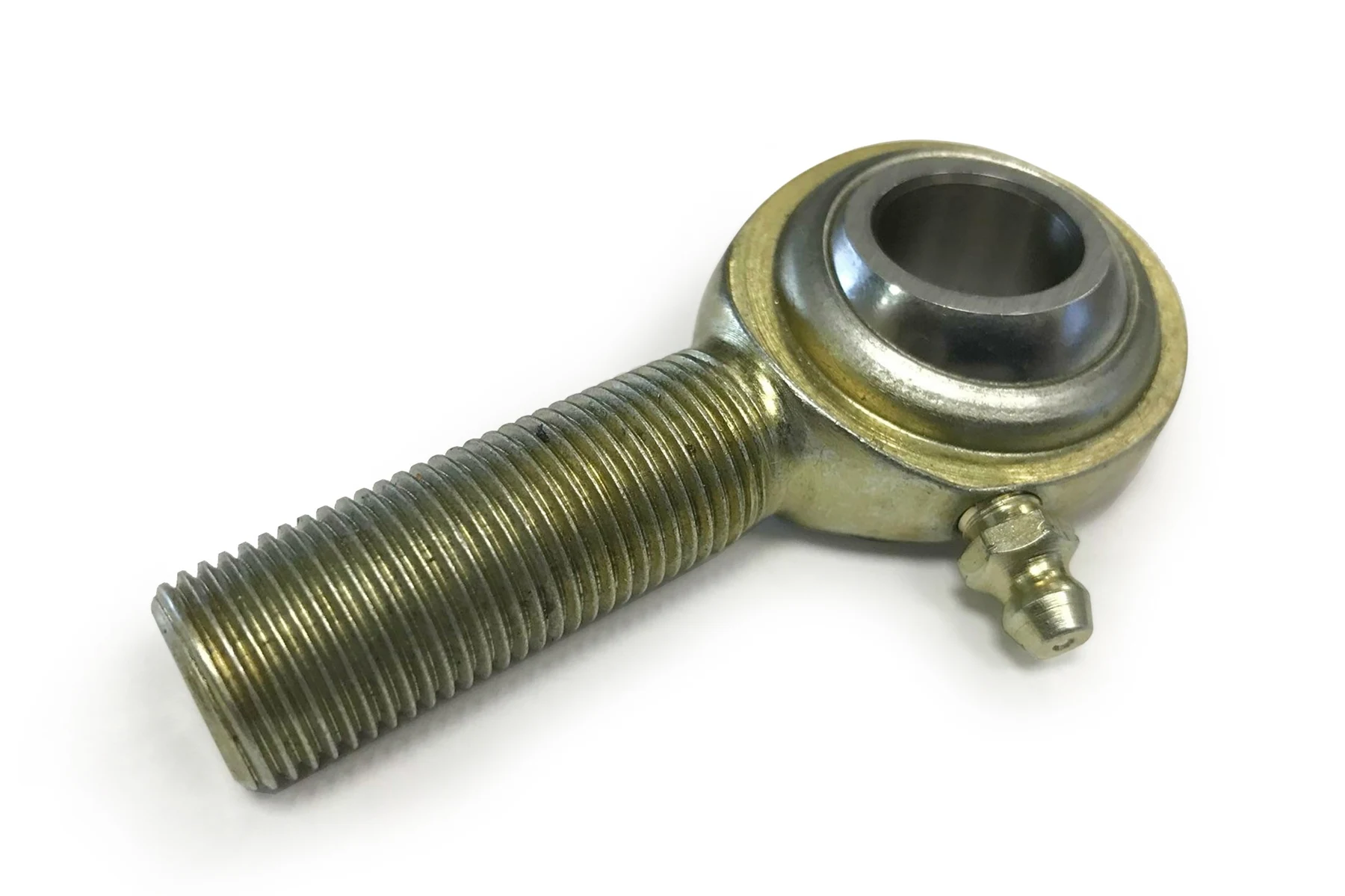

MSM-12Z, Bearings, Spherical Rod End, Male 3/4-16 RH Steel Housing, Steel Race 0.751 Bore with Grease Zerk
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$39.81 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/4-16 RH |
|---|---|
| Bore diameter | 0.751 |
| Housing construction | Steel |
| Race material | Steel |
| Stud included | No |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $39.81 |
| 2+ | $28.85 |
| 3+ | $25.67 |
| 4+ | $25.25 |
| 8+ | $18.98 |
| 10+ | $18.86 |
| 30+ | $15.71 |
| 60+ | $13.27 |
| 90+ | $13.24 |
| 120+ | $11.35 |
| 150+ | $11.34 |
| 210+ | $11.31 |
| 420+ | $11.11 |
| 600+ | $11.10 |
Drawing dimensions
| Threads | 3/4-16 RH |
|---|---|
| Stud Included | no |
| Plating | Zinc Yellow |
| A | 0.751 |
| G | 2.875 |
| H | 1.750 |
| J | 1.750 |
| M | 0.687 |
| N | 0.875 |
Lettered dimensions refer to the drawing for this part.
Product information
Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance.
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Housing: low carbon steel, plated and dichromate treated for corrosion resistance.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MSML-6).
Mounting Stud: an optional feature specified by adding an “S” after the nominal size (i.e., MSM-6S).
Race: the MSM-series features a close fit between the ball and the housing that allows the housing member itself to act as the bearing race.
