MCPBearings, Spherical Rod End · Male
MSM-3

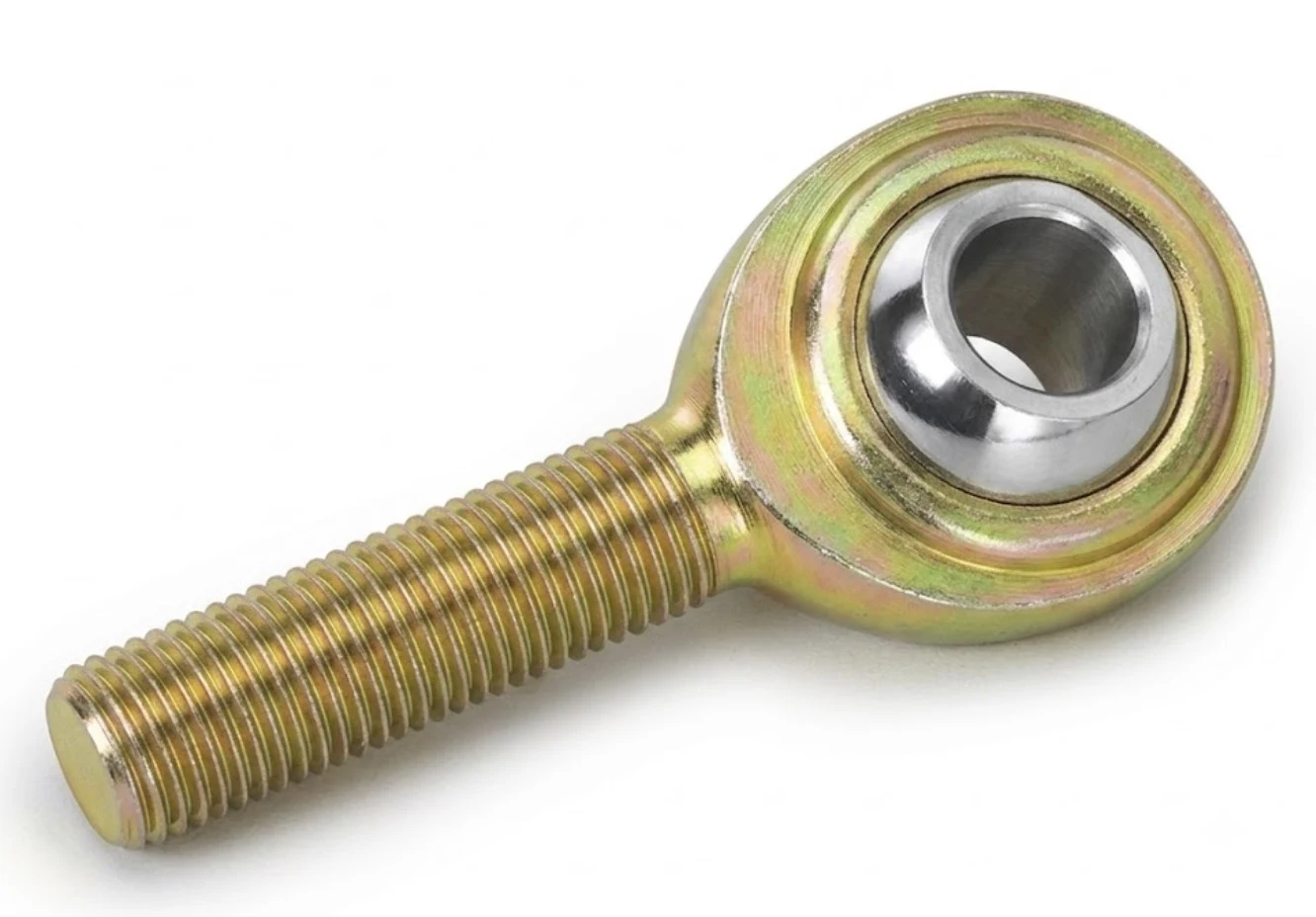

MSM-3, Bearings, Spherical Rod End, Male 10-32 RH Steel Housing, Steel Race 0.190 Bore
3D CAD preview
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.06 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 RH |
|---|---|
| Bore diameter | 0.19 |
| Housing construction | Steel |
| Race material | Steel |
| Stud included | No |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.06 |
| 2+ | $10.88 |
| 3+ | $9.23 |
| 4+ | $8.81 |
| 5+ | $7.54 |
| 10+ | $6.22 |
| 30+ | $4.16 |
| 50+ | $3.68 |
| 100+ | $3.63 |
| 300+ | $2.88 |
| 600+ | $2.46 |

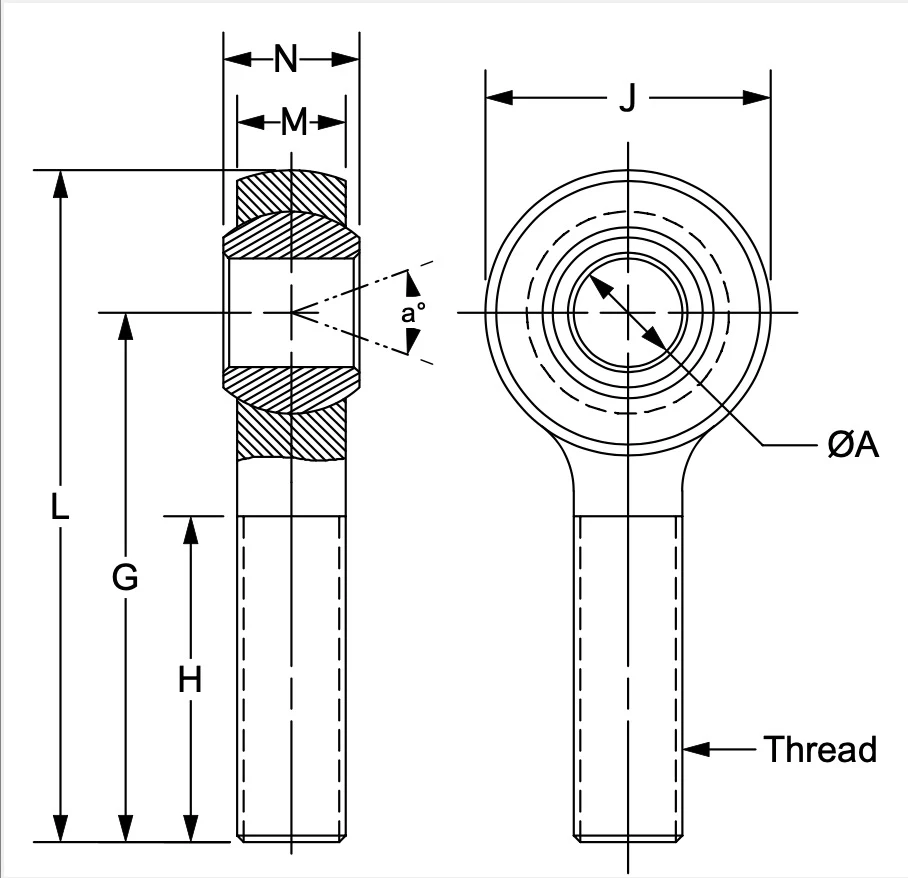

Drawing dimensions
| Threads | 10-32 RH |
|---|---|
| Stud Included | no |
| Plating | Zinc Yellow |
| A | 0.190 |
| G | 1.250 |
| H | 0.750 |
| J | 0.625 |
| M | 0.250 |
| N | 0.312 |
| Ultimate Radial Static Load Rating (lbs) | 2080 |
Lettered dimensions refer to the drawing for this part.
Product information
Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance.
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Housing: low carbon steel, plated and dichromate treated for corrosion resistance.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MSML-6).
Mounting Stud: an optional feature specified by adding an “S” after the nominal size (i.e., MSM-6S).
Race: the MSM-series features a close fit between the ball and the housing that allows the housing member itself to act as the bearing race.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
