Bearings, Spherical Rod End · Male

MSML-8S

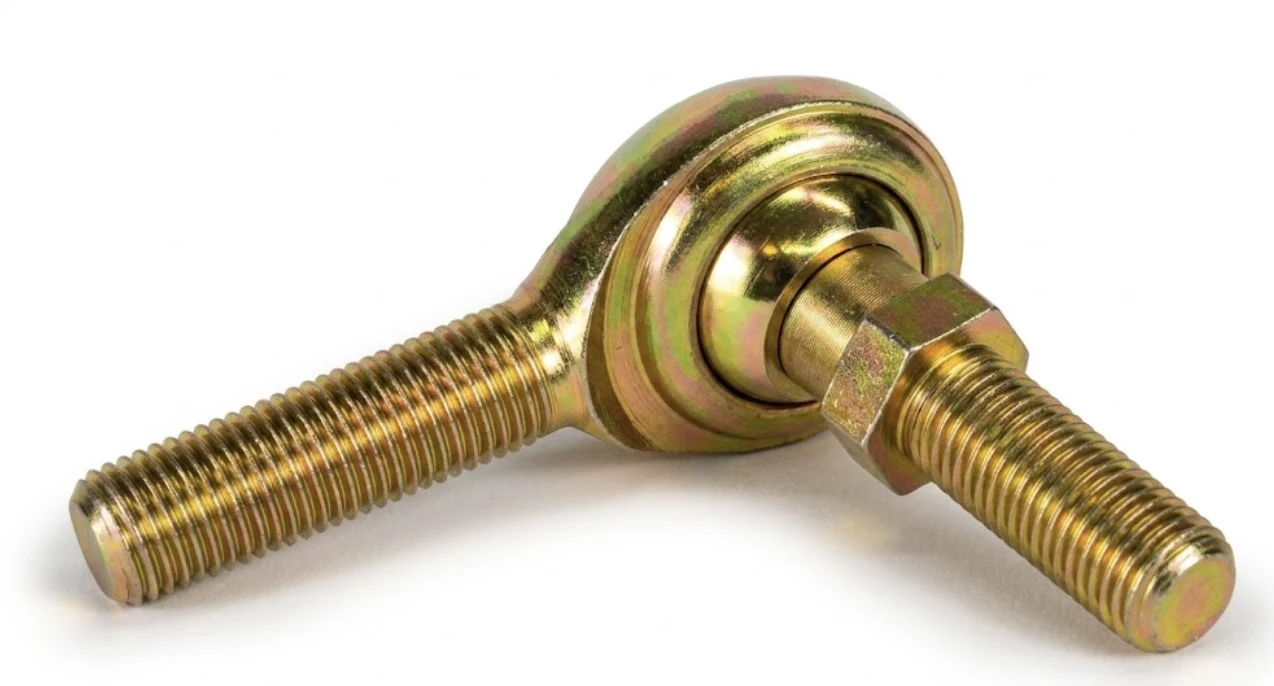

MSML-8S, Bearings, Spherical Rod End, Male 1/2-20 LH Steel Housing, Steel Race 0.501 Bore with Integral Ball Stud

MSML-8S dimension drawing 1 — Dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$23.38 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Thread	1/2-20 LH
Bore diameter	0.501
Housing construction	Steel
Race material	Steel
Stud included	Yes
Finish / plating	Zinc Clear

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

Quantity	Price per piece
1+	$23.38
2+	$19.09
3+	$16.01
4+	$13.81
5+	$13.56
10+	$11.94
20+	$9.00
30+	$8.02
60+	$7.49
120+	$6.33
180+	$6.32
300+	$5.39
540+	$5.38
1,500+	$5.30

Drawing dimensions

Threads	1/2-20 LH
Stud Included	Yes
Plating	Zinc Clear
A	0.501
B	0.250
D	0.875
E	1.125
F	0.625
G	2.438
H	1.500
J	1.312
K	0.564
M	0.500
N	0.625

Lettered dimensions refer to the drawing for this part.

Product information

Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance. Configuration: housing and stud dimensions are subject to change based on manufacturing considerations. Housing: low carbon steel, plated and dichromate treated for corrosion resistance. Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MSML-6). Mounting Stud: an optional feature specified by adding an “S” after the nominal size (i.e., MSM-6S). Race: the MSM-series features a close fit between the ball and the housing that allows the housing member itself to act as the bearing race.
