MCPClevis and Yoke Ends · Female
MTC-5S
MTC-5S, Clevis and Yoke Ends, Female M5 x 0.80 RH 5mm Pin Holes 5 x 10 Housing Zinc Yellow Plating Turned Construction

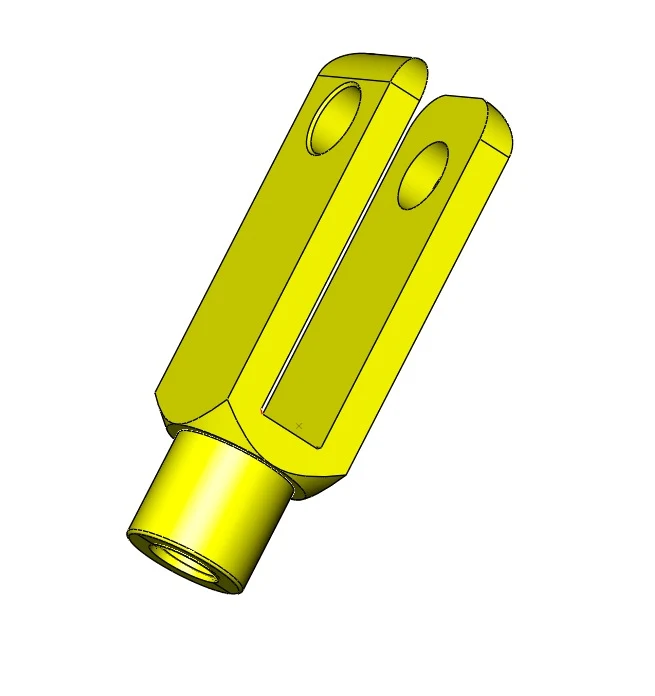

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.90 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M5 x 0.8 RH |
|---|---|
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.90 |
| 2+ | $3.40 |
| 3+ | $2.57 |
| 4+ | $2.15 |
| 5+ | $1.90 |
| 10+ | $1.40 |
| 25+ | $0.81 |
| 50+ | $0.65 |
| 100+ | $0.53 |
| 200+ | $0.41 |
| 300+ | $0.40 |
| 500+ | $0.30 |

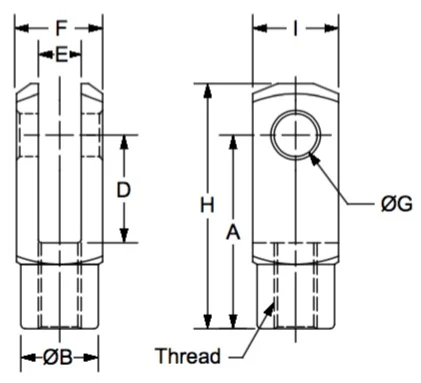

Drawing dimensions
| Threads | M5 x 0.80 RH |
|---|---|
| A | 20 |
| B | 9 |
| D | 10 |
| E | 5 |
| F | 10 |
| G | 5 |
| H | 26 |
| I | 10 |
| Finish | Zinc Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Attaching Hardware: Inch clevis spring pins, cotter pins, safety clips, etc. are available in volume.
Construction: per DIN 71752, low carbon steel, zinc plated
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More clevis and yoke ends
Compare specifications and drawings to select the right part.
