MCPClevis and Yoke Ends · Female
MTCP-4S

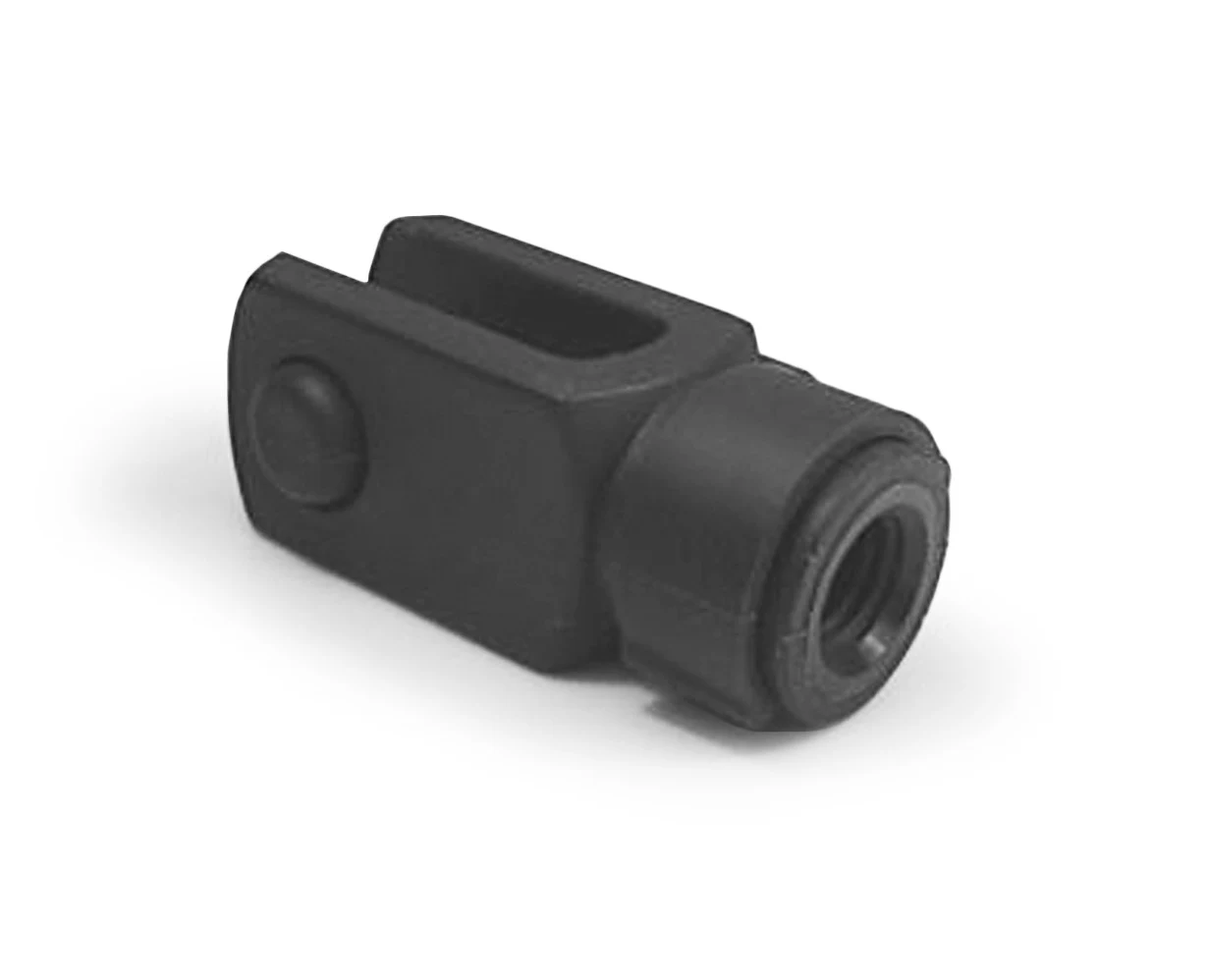

MTCP-4S, Clevis and Yoke Ends, Female M4 x 0.70 RH 4mm Pin Holes 4 x 8 Housing Plastic
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$11.74 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M4 x 0.7 RH |
|---|---|
| Finish / plating | Plastic Housing |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $11.74 |
| 2+ | $9.13 |
| 3+ | $6.27 |
| 4+ | $5.85 |
| 5+ | $5.16 |
| 10+ | $4.09 |
Drawing dimensions
| Threads | M4 x 0.70 RH |
|---|---|
| A | 20 |
| B | 8.0 |
| D | 7.5 |
| E | 8 |
| F | 4.14 |
| G | 8 |
| H | 4 |
| I | 21.0 |
| Finish | Plastic Housing |
Lettered dimensions refer to the drawing for this part.
Product information
Attaching Hardware: Inch clevis spring pins, cotter pins, safety clips, etc. are available in volume.
Construction: per DIN 71752, low carbon steel, zinc plated
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
