MCPClevis and Yoke Ends · Female
MTCV-12S-ZCHF
MTCV-12S-ZCHF, Clevis and Yoke Ends, Female M12 x 1.75 RH Offset 12 x 24 Housing Zinc Clear Hex Free (ROHS) Turned Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$24.79 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M12 x 1.75 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $24.79 |
| 2+ | $20.36 |
| 3+ | $17.11 |
| 4+ | $14.77 |
| 5+ | $14.52 |
| 10+ | $12.82 |
| 25+ | $8.66 |
| 50+ | $8.56 |
| 100+ | $7.79 |
| 250+ | $5.83 |

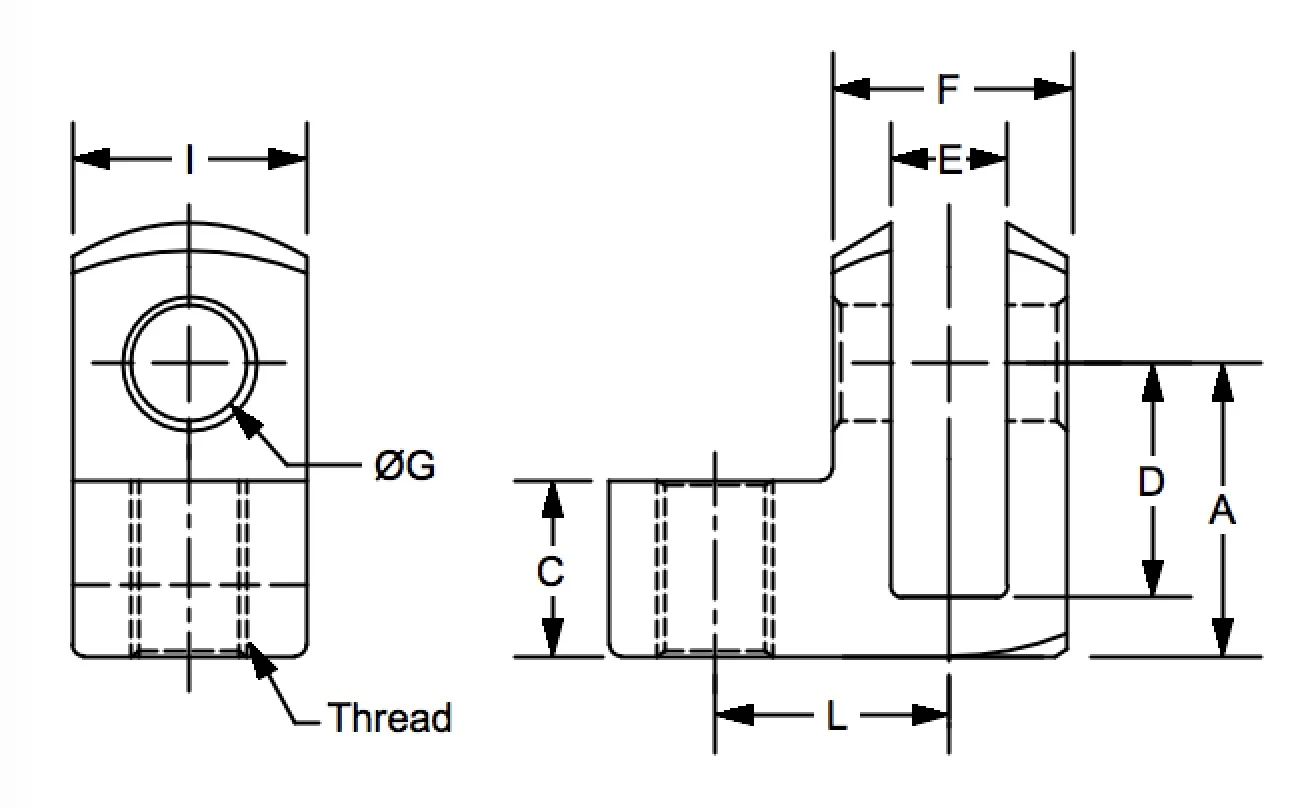

Drawing dimensions
| Thread | M12 x 1.75 RH |
|---|---|
| A | 30 |
| C | 18 |
| D | 24 |
| E | 12.15 |
| F | 24 |
| G | 12 |
| i | 24 |
| L | 22.5 |
Lettered dimensions refer to the drawing for this part.
Product information
Attaching Hardware: Clevis pins, cotter pins, safety clips, etc. are available in volume.
Construction: per DIN 71752, low carbon steel, zinc plated except for 'offset' feature
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
