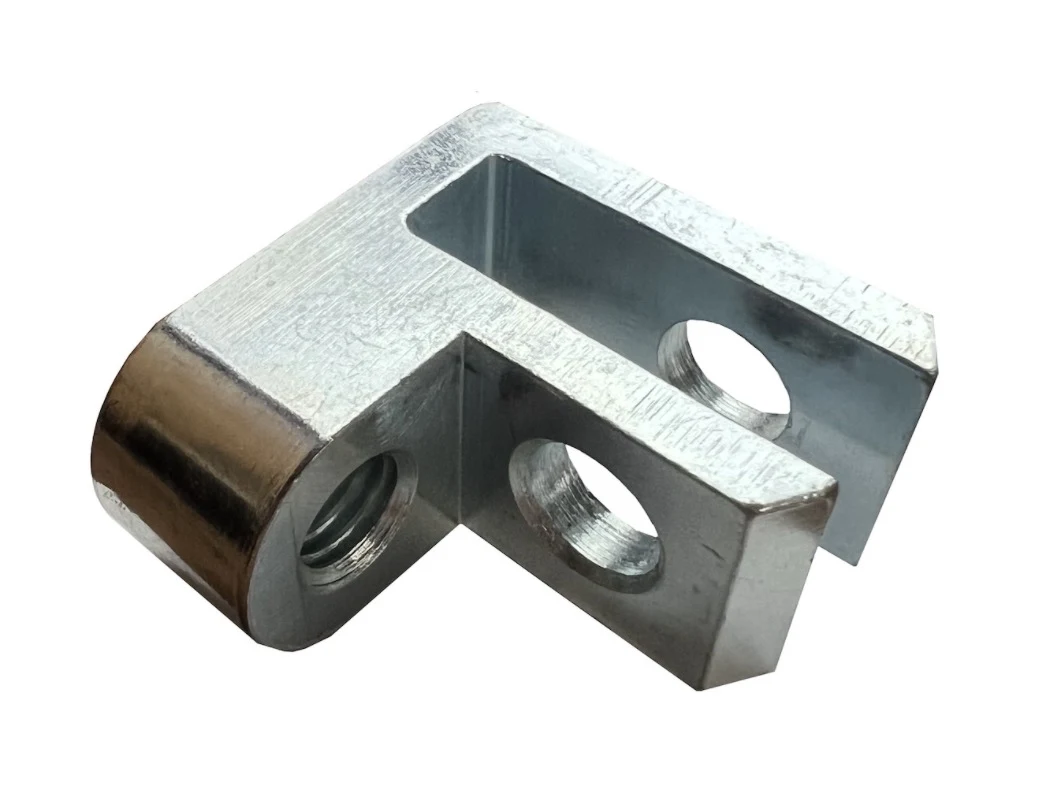

MTCV-8S-ZCHF, Clevis and Yoke Ends, Female M8 x 1.25 RH Offset 8 x 16 Housing Zinc Clear Hex Free (ROHS) Turned Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.80 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M8 x 1.25 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.80 |
| 2+ | $14.96 |
| 3+ | $12.44 |
| 4+ | $12.03 |
| 5+ | $10.43 |
| 10+ | $9.09 |
| 25+ | $6.77 |
| 50+ | $6.00 |
| 100+ | $5.61 |
| 250+ | $4.74 |

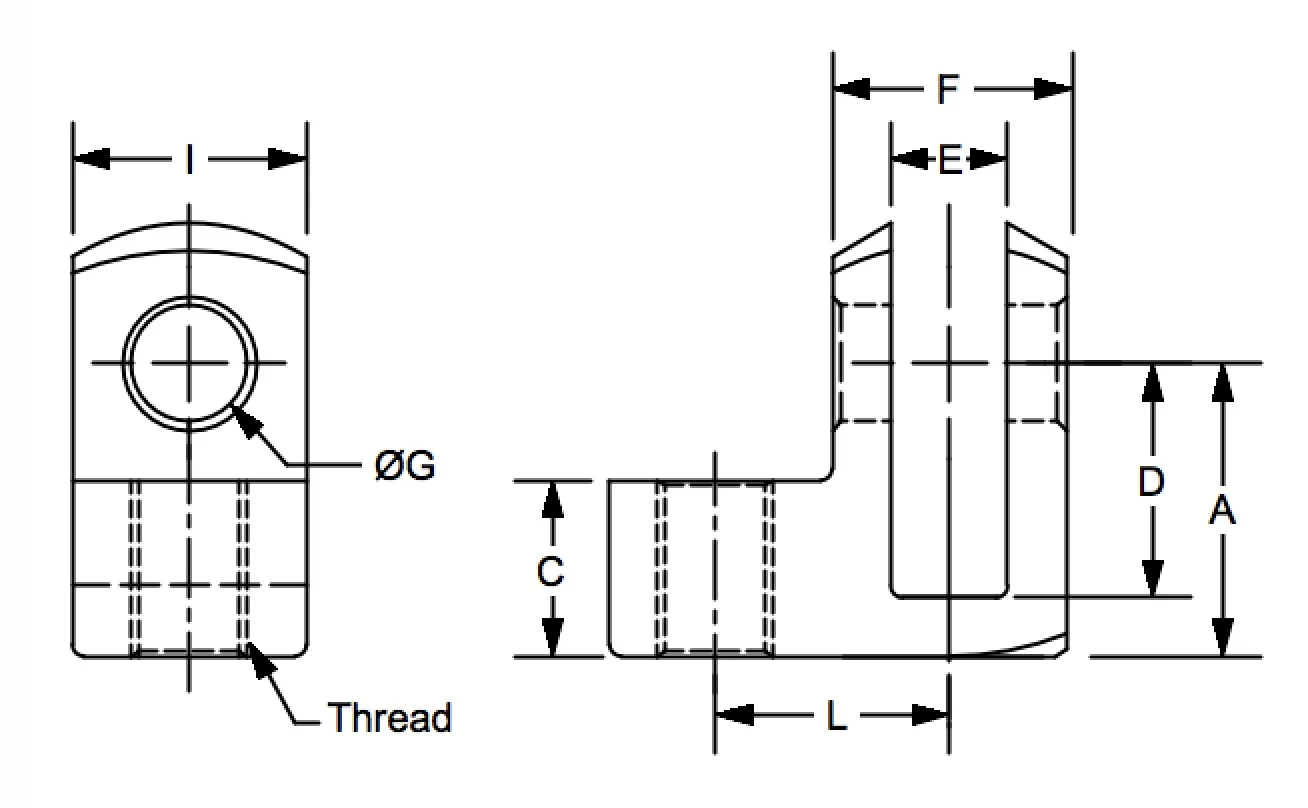

Drawing dimensions
| Thread | M8 x 1.25 RH |
|---|---|
| A | 20 |
| C | 12 |
| D | 16 |
| E | 8.15 |
| F | 16 |
| G | 8 |
| i | 16 |
| L | 15.5 |
Lettered dimensions refer to the drawing for this part.
Product information
Attaching Hardware: Clevis pins, cotter pins, safety clips, etc. are available in volume.
Construction: per DIN 71752, low carbon steel, zinc plated except for 'offset' feature
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
