MCPBearings, Spherical Rod End · Male
MTML-3S

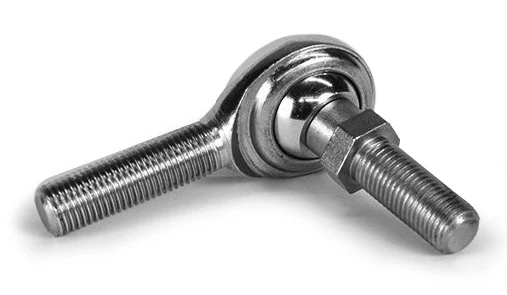

MTML-3S, Bearings, Spherical Rod End, Male 10-32 LH Steel Housing, PTFE Race 0.190 Bore with Integral Ball Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.50 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 LH |
|---|---|
| Bore diameter | 0.19 |
| Housing construction | Steel |
| Race material | PTFE |
| Stud included | Yes |
| Finish / plating | Zinc Clear |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.50 |
| 2+ | $12.88 |
| 3+ | $12.05 |
| 4+ | $10.22 |
| 5+ | $9.97 |
| 10+ | $7.65 |
| 25+ | $5.67 |
| 50+ | $5.01 |
| 100+ | $4.68 |
Drawing dimensions
| Threads | 10-32 LH |
|---|---|
| Stud Included | Yes |
| Plating | Zinc Clear |
| A | 0.190 |
| B | 0.125 |
| D | 0.437 |
| E | 0.437 |
| F | 0.312 |
| G | 1.250 |
| H | 0.750 |
| J | 0.625 |
| K | 0.187 |
| M | 0.250 |
| N | 0.312 |
Lettered dimensions refer to the drawing for this part.
Product information
Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance.
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Housing: low carbon steel, plated and dichromate treated for corrosion resistance.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MTML-6).
Race: the MTM-series features a PTFE bearing race.
