Bearings, Spherical Rod End · Female

MVF-4

MVF-4, Bearings, Spherical Rod End, Female 1/4-28 RH Steel Housing, Bronze Race

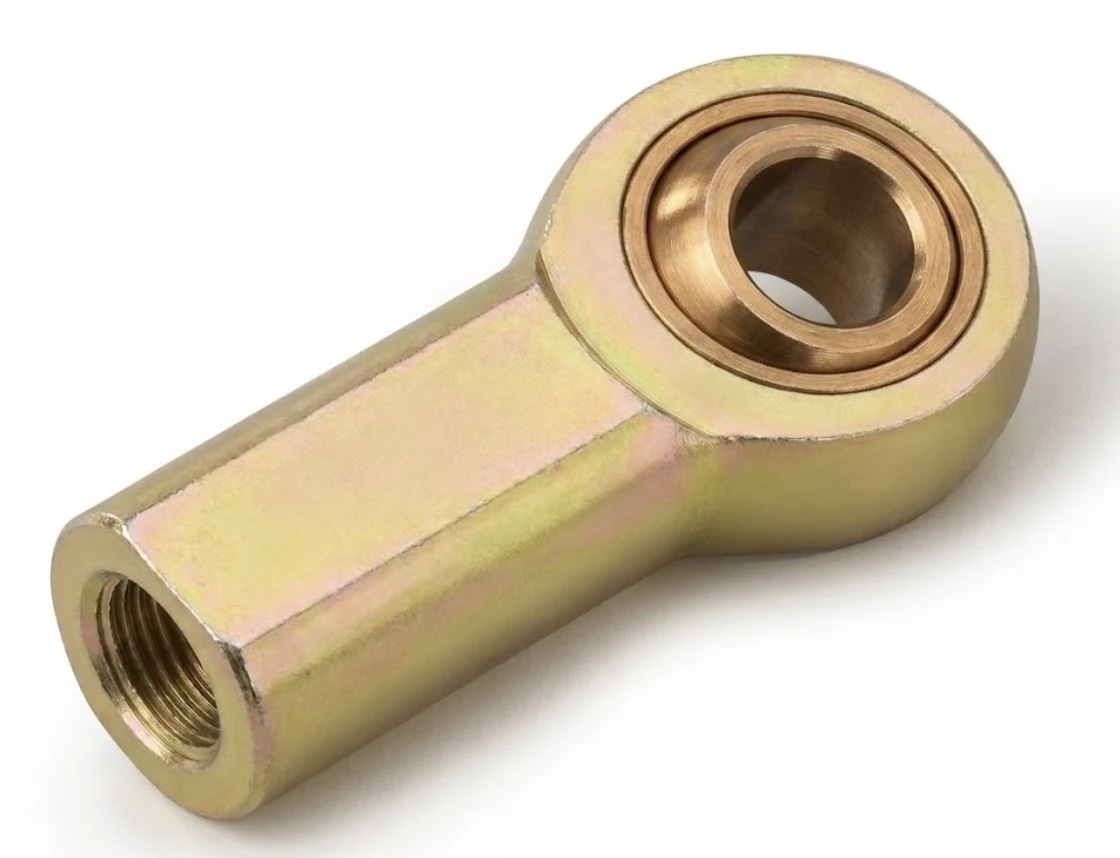

Product image
MVF-4 product image

3D CAD preview

Drag to rotate · scroll or pinch to zoom · right-drag or two fingers to pan.

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

$19.76 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Thread1/4-28 RH
Housing constructionSteel
Race materialBronze
Stud includedNo
Finish / platingZinc Yellow

Values without units follow the drawing.

Drawing & dimensions

MVF-4 dimension drawing
Threads1/4-28 RH
Stud Includedno
PlatingZinc Yellow
A0.251
G1.312
H0.750
J0.750
M0.281
N0.375
O0.469
P0.375
Item envelope L × W × H (in)1.687 × 0.75 × 0.469
Unit weight (lb)0.056

Lettered dimensions refer to the drawing for this part.

CAD & file downloads

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$19.76
2+$15.82
4+$12.77
6+$10.92
10+$9.68
20+$7.27
25+$7.22
50+$6.40
100+$5.81
200+$5.07
400+$4.34
800+$4.26
1,600+$4.26
2,000+$4.25

Product information

Application: MVF-series spherical rod ends may be assembled to a rod, pipe, tube or cable connecting linkage to allow misalignment between two moving points. Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance. Configuration: housing styles are subject to change based on manufacturing considerations. Housing: low carbon steel, plated and dichromate treated for corrosion resistance. Mounting Stud: an optional feature specified by adding an "S" after the nominal size (i.e., MVF-6S), mounting studs are made from low carbon steel, and are plated and dichromate treated for corrosion resistance. Standard stud threads are right hand. Specify mounting studs on your spherical rod ends to minimize assembly time, reduce the number of purchased components, overcome workspace limitations and increase the total misalignment to a minimum of 50°. Race: the MVF-series features a bronze bearing race.
