MCPBearings, Spherical Rod End · Male
MVM-4

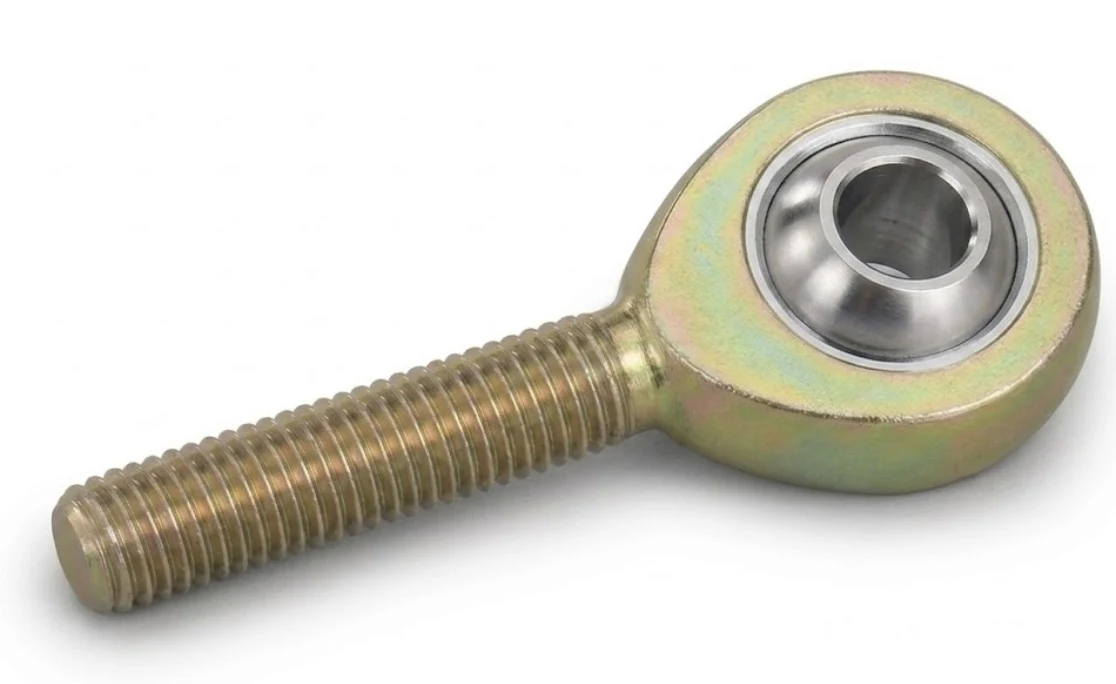

MVM-4, Bearings, Spherical Rod End, Male 1/4-28 RH Steel Housing, Bronze Race 0.251 Bore
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.28 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Bore diameter | 0.251 |
| Housing construction | Steel |
| Race material | Bronze |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.28 |
| 2+ | $8.16 |
| 3+ | $7.33 |
| 4+ | $6.36 |
| 5+ | $6.11 |
| 10+ | $4.92 |
| 25+ | $3.72 |
| 50+ | $2.79 |
| 100+ | $2.47 |
| 250+ | $2.30 |
Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| Plating | Zinc Yellow |
| A | 0.251 |
| G | 1.562 |
| H | 1.000 |
| J | 0.750 |
| M | 0.281 |
| N | 0.375 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: MVM-series spherical rod ends may be purchased as individual components, or as part of a linkage assembly (ie: with the connecting rod or tubular linkage).
Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance.
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Housing: low carbon steel, plated and dichromate treated for corrosion resistance.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MVML-6).
Race: the MVM-series features a bronze bearing race.
