MCPBearings, Spherical Rod End · Female
MXF-8-6-Short

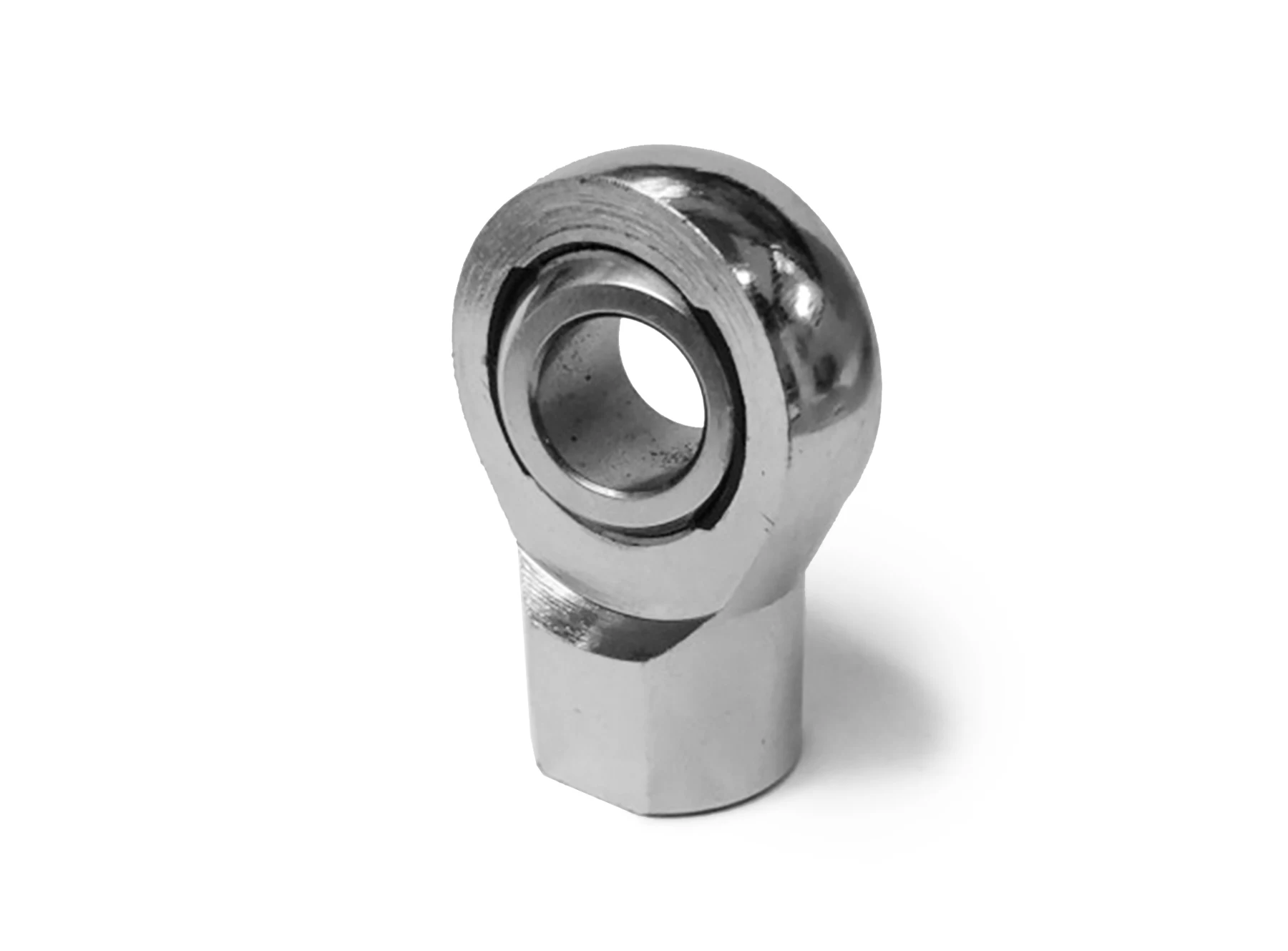

MXF-8-6-Short, Bearings, Spherical Rod End, Female 3/8-24 RH Chrome Moly Housing, Slotted Nylon Race 0.501 Bore
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$21.82 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 RH |
|---|---|
| Bore diameter | 0.501 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $21.82 |
| 2+ | $17.68 |
| 4+ | $12.74 |
| 6+ | $12.32 |
| 8+ | $11.10 |
| 10+ | $10.97 |
| 20+ | $8.26 |
| 30+ | $7.36 |
| 50+ | $7.29 |
| 70+ | $6.85 |
| 100+ | $6.62 |
Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| A | 0.501 |
| G | 1.250 |
| H | 0.500 |
| J | 1.312 |
| M | 0.453 |
| N | 0.625 |
| O | 0.875 |
| P | 0.750 |
| Ultimate Radial Static Load Rating | 8560 Lbs |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Material: heat treated chrome moly
Finish: bright polished chrome
Application: these are typically used in high strength automotive aftermarket suspension applications - end links, shock absorber rod ends, torque arms
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
