MCPBearings, Spherical Rod End · Female
MXFL-4

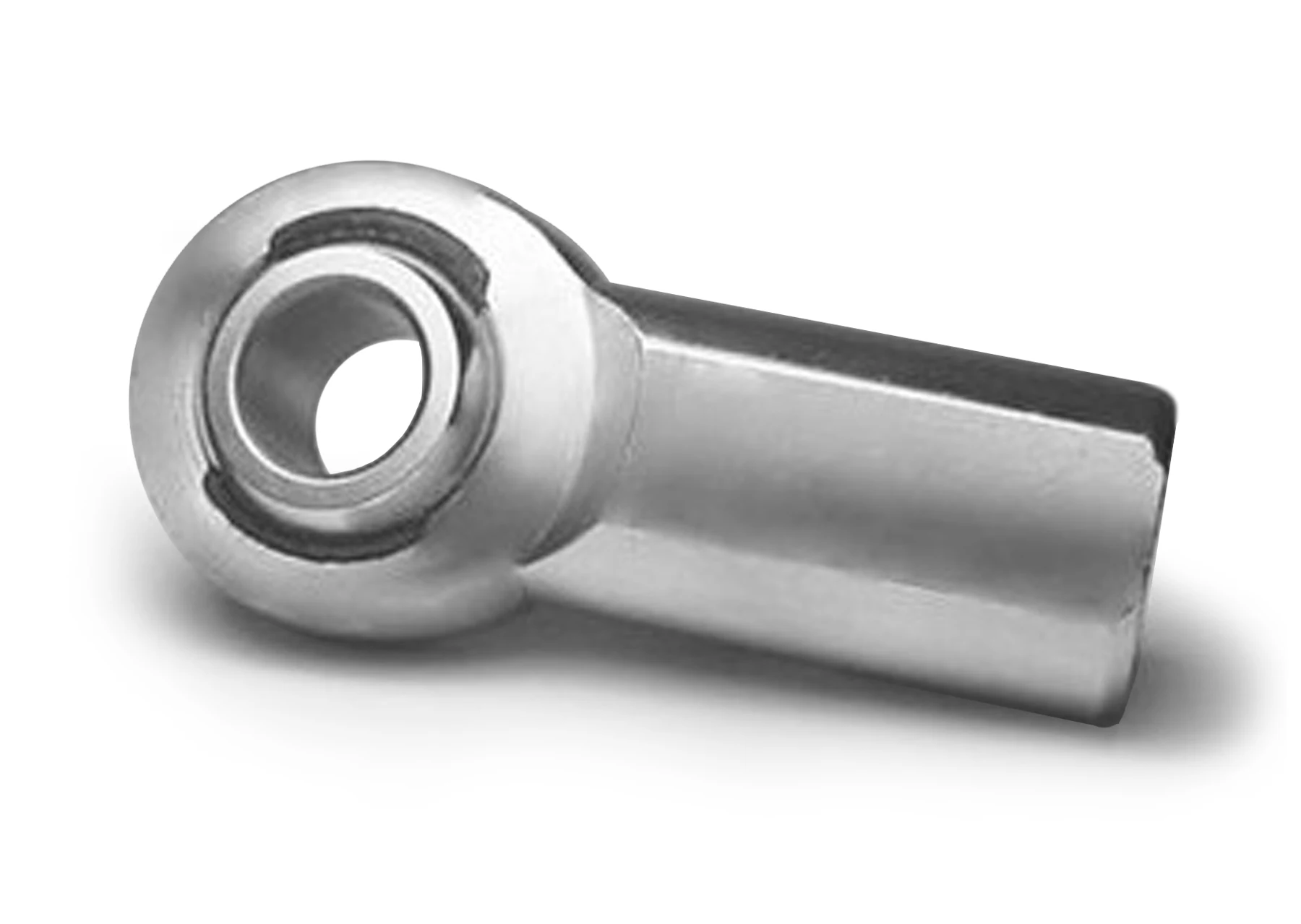

MXFL-4, Bearings, Spherical Rod End, Female 1/4-28 RH Chrome Moly Housing, Slotted Nylon Race 0.251 Bore

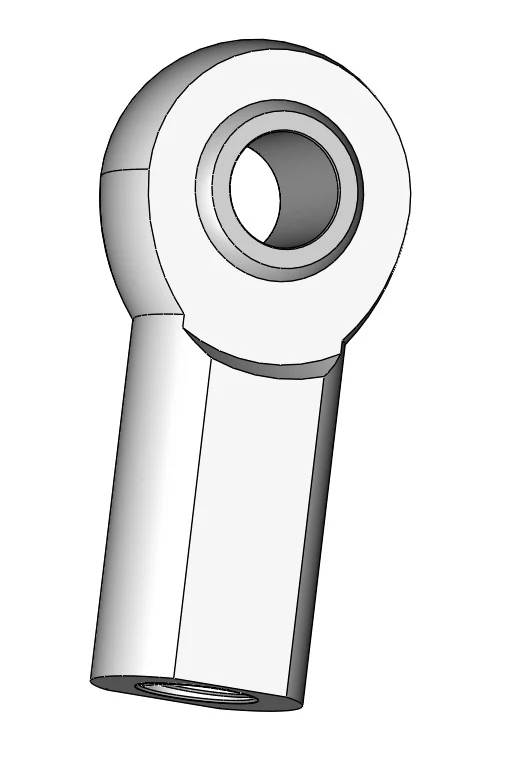

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.40 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Bore diameter | 0.251 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.40 |
| 2+ | $8.24 |
| 3+ | $7.41 |
| 4+ | $6.43 |
| 5+ | $6.18 |
| 10+ | $4.98 |
| 25+ | $3.77 |
| 50+ | $2.83 |
| 75+ | $2.52 |
| 100+ | $2.50 |
Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 0.251 |
| G | 1.312 |
| H | 0.750 |
| J | 0.750 |
| M | 0.281 |
| N | 0.375 |
| O | 0.469 |
| P | 0.375 |
| Ultimate Radial Static Load Rating | 5,230 Lbs |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Material: heat treated chrome moly
Finish: bright polished chrome
Application: these are typically used in high strength automotive aftermarket suspension applications - end links, shock absorber rod ends, torque arms
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
