MCPBearings, Spherical Rod End · Female
MXFX-10
MXFX-10, Bearings, Spherical Rod End, Female 5/8-18 RH Chrome Moly Housing, Slotted Nylon Race 0.626 Bore Extra Long Housing
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$48.08 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/8-18 RH |
|---|---|
| Bore diameter | 0.626 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $48.08 |
| 2+ | $41.74 |
| 3+ | $40.90 |
| 4+ | $31.26 |
| 8+ | $27.56 |
| 12+ | $27.35 |
| 16+ | $27.25 |
| 24+ | $24.84 |
| 48+ | $21.66 |
| 72+ | $18.55 |

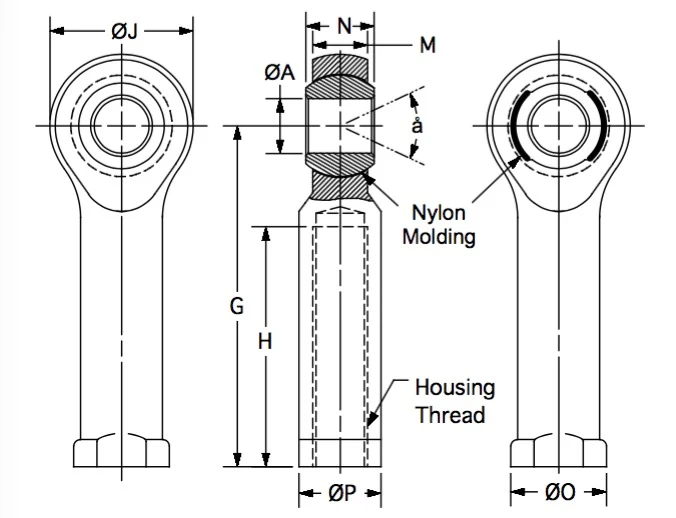

Drawing dimensions
| Threads | 5/8-18 RH |
|---|---|
| a | 44º |
| A | 0.626 |
| G | 5.875 |
| H | 4.875 |
| J | 1.500 |
| M | 0.562 |
| N | 0.750 |
| O | 1.000 |
| P | 0.875 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Material: heat treated chrome moly
Finish: bright polished chrome
Application: these are typically used in high strength automotive aftermarket suspension applications - end links, shock absorber rod ends, torque arms
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
