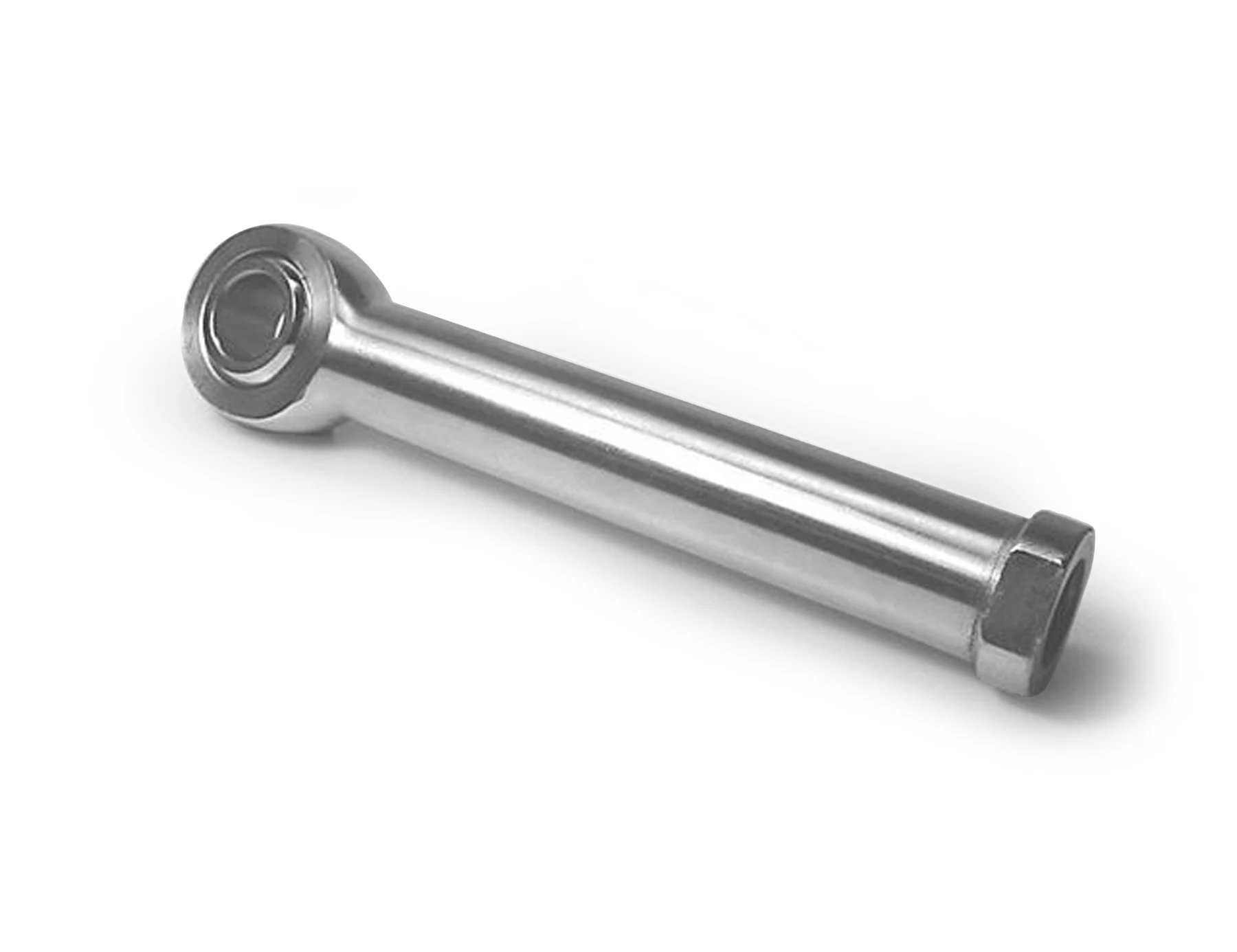

MXFX-5, Bearings, Spherical Rod End, Female 5/16-24 RH Chrome Moly Housing, Slotted Nylon Race 0.314 Bore Extra Long Housing
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$34.24 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/16-24 RH |
|---|---|
| Bore diameter | 0.314 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $34.24 |
| 2+ | $24.63 |
| 3+ | $23.79 |
| 4+ | $21.41 |
| 5+ | $21.16 |
| 10+ | $15.92 |
| 20+ | $14.09 |

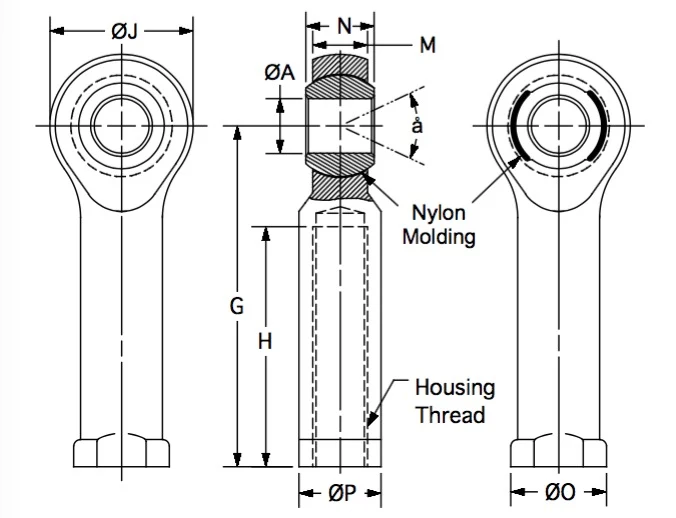

Drawing dimensions
| Threads | 5/16-24 RH |
|---|---|
| a | 48º |
| A | 0.314 |
| G | 4.375 |
| H | 3.750 |
| J | 0.875 |
| M | 0.344 |
| N | 0.437 |
| O | 0.500 |
| P | 0.437 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Material: heat treated chrome moly
Finish: bright polished chrome
Application: these are typically used in high strength automotive aftermarket suspension applications - end links, shock absorber rod ends, torque arms
