MCPBearings, Spherical Rod End · Male
MXM-28
MXM-28, Bearings, Spherical Rod End, Male 1.75-12 RH Chrome Moly Housing, Slotted Nylon Race 1.750 Bore

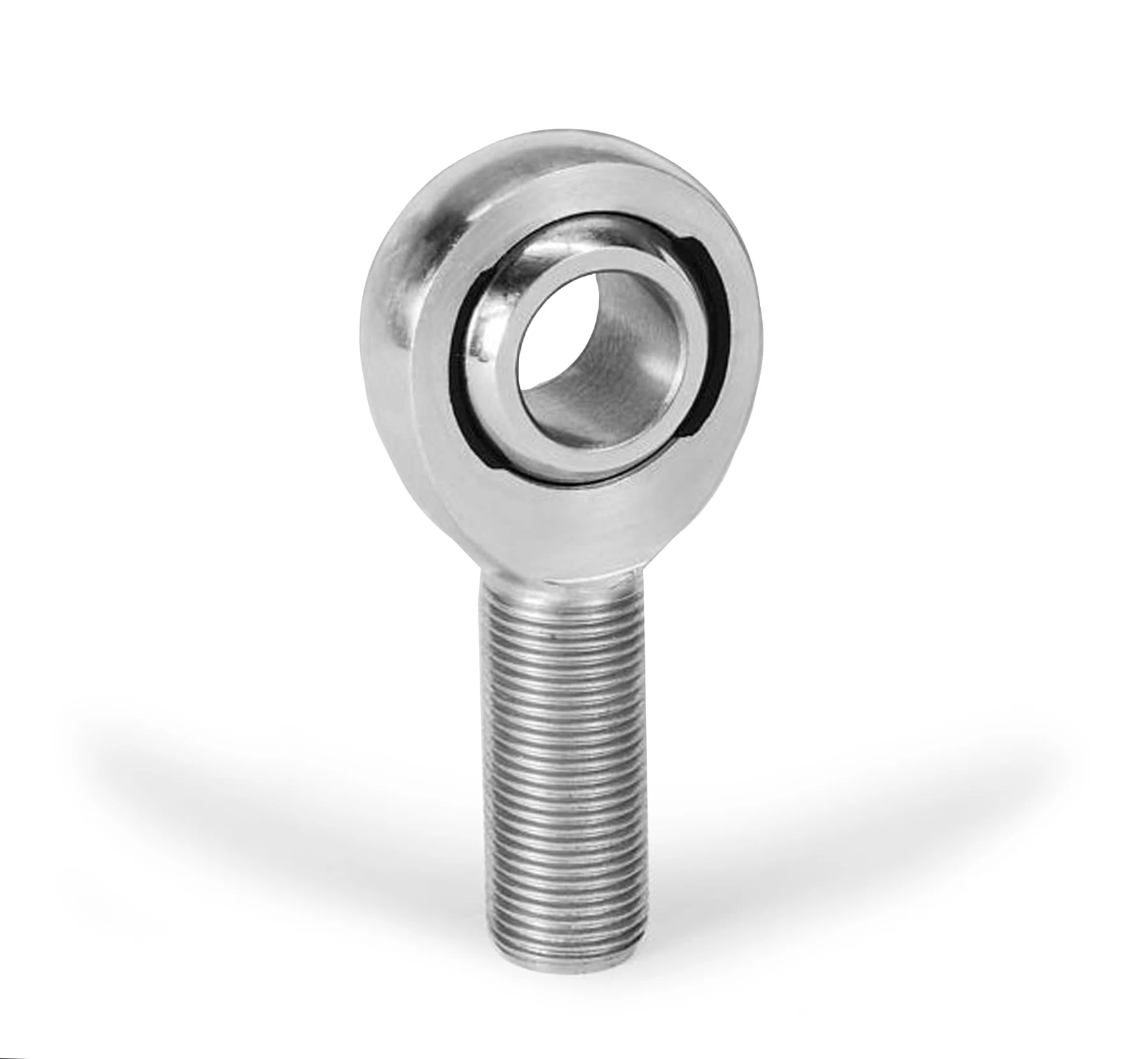

Additional photos

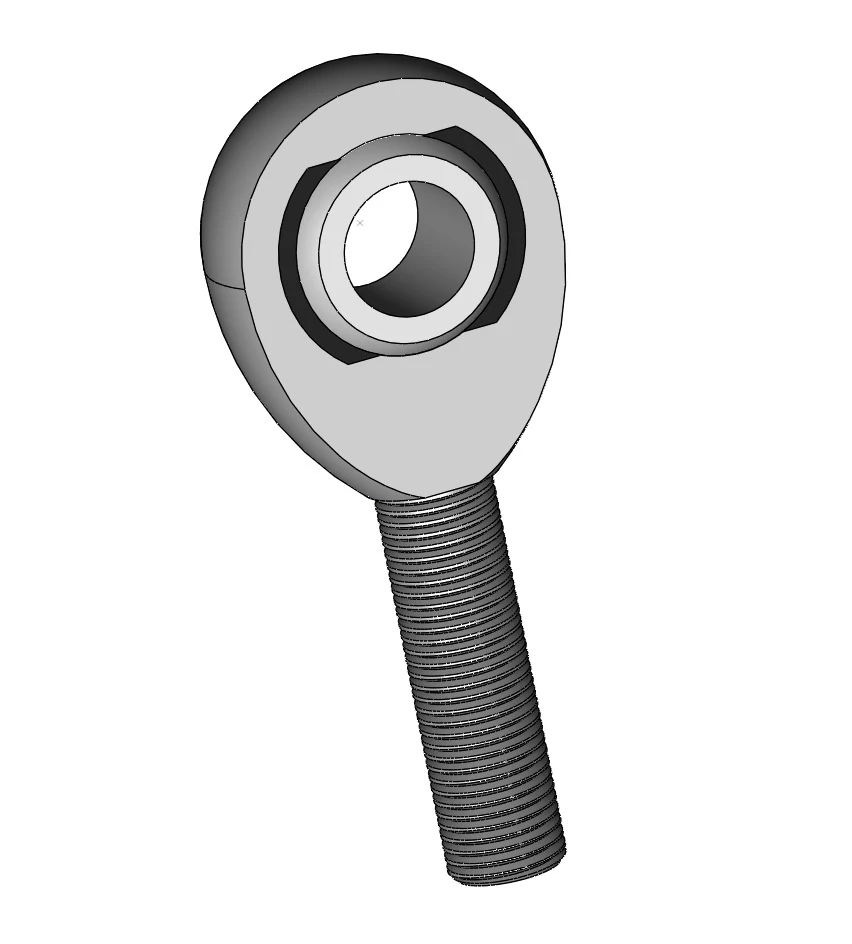

Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.37 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1.75-12 RH |
|---|---|
| Bore diameter | 1.75 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.37 |
| 2+ | $2.87 |
| 3+ | $2.04 |
| 4+ | $1.62 |
| 5+ | $1.37 |
| 10+ | $0.87 |
| 25+ | $0.39 |
| 50+ | $0.29 |

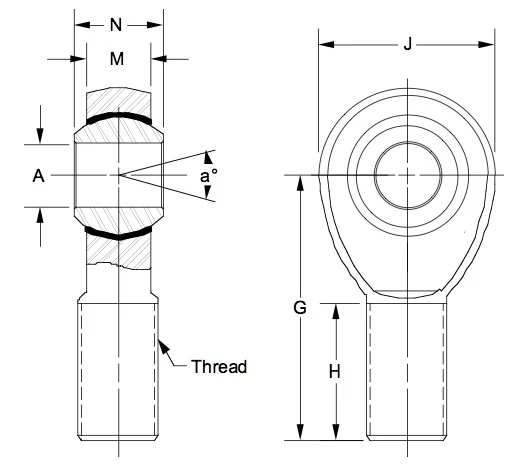

Drawing dimensions
| Threads | 1.75-12 RH |
|---|---|
| A | 1.750 |
| G | 5.375 |
| H | 3.000 |
| J | 3.500 |
| M | 1.125 |
| N | 1.312 |
| a° | 13 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Housing: 4130 heat treated chrome moly steel

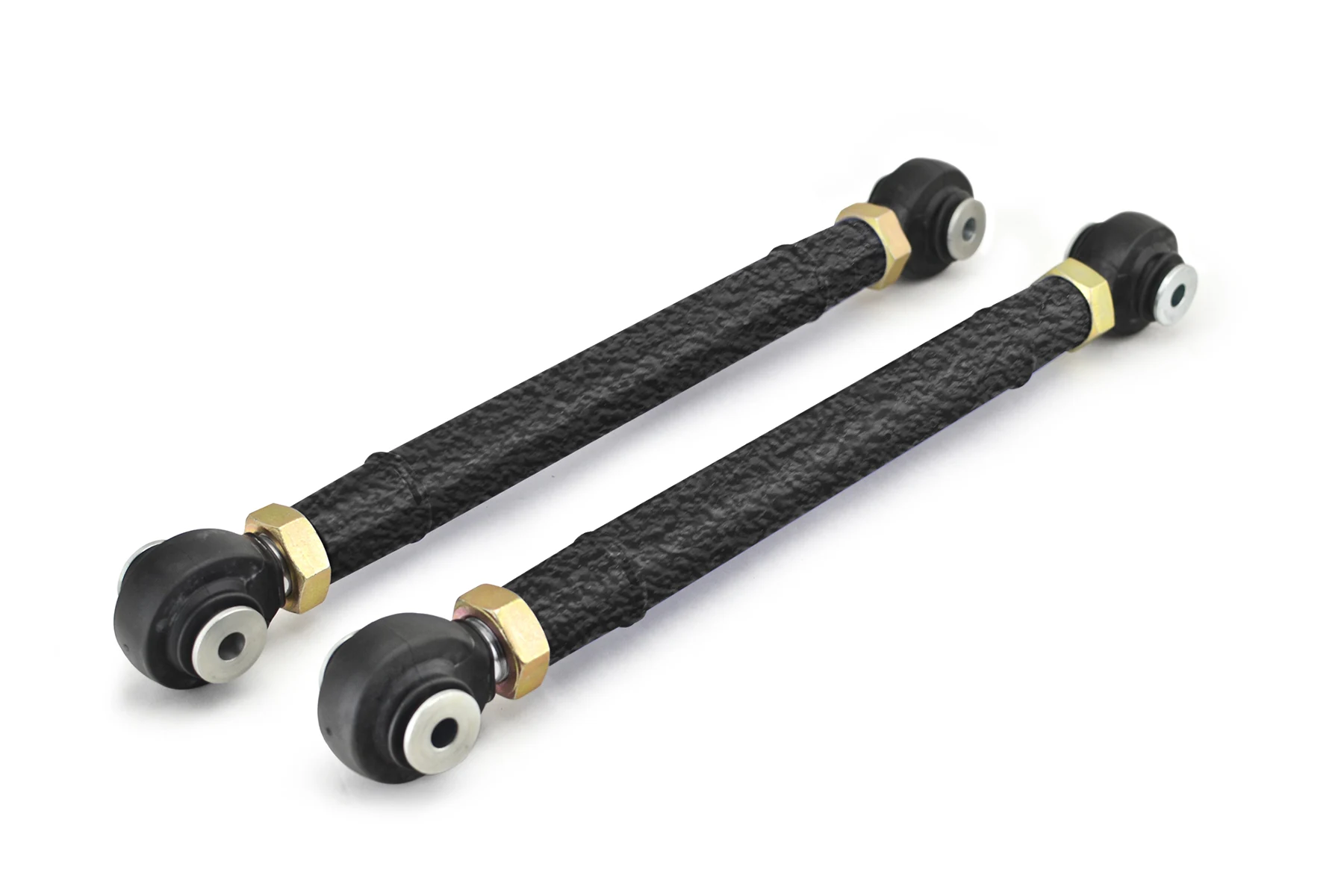

Application: Our chrome moly rod MXM rod ends are ideal for most automotive after market suspensions such as control arms, end links.
