MXM-4

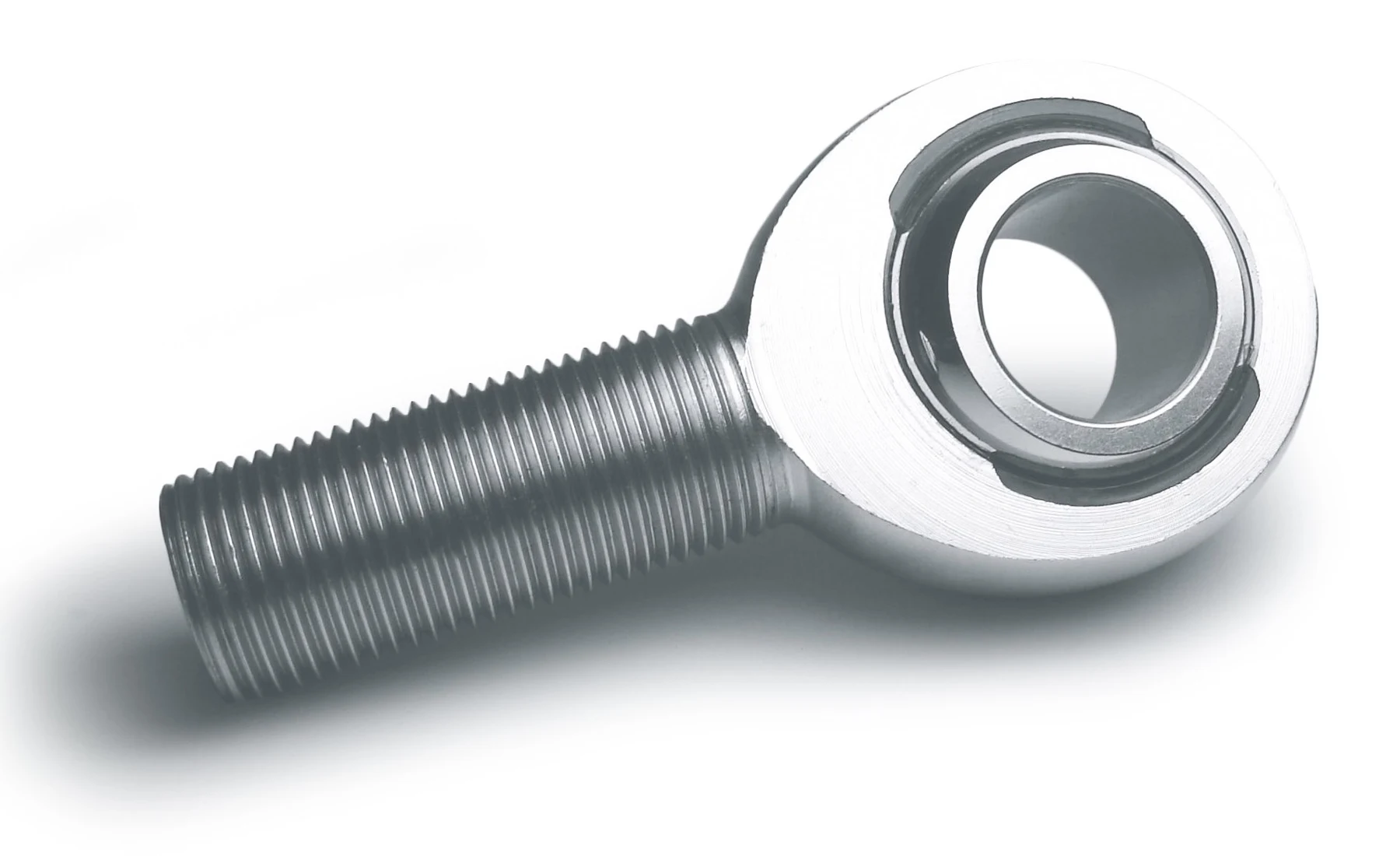

MXM-4, Bearings, Spherical Rod End, Male 1/4-28 RH Chrome Moly Housing, Slotted Nylon Race 0.251 Bore

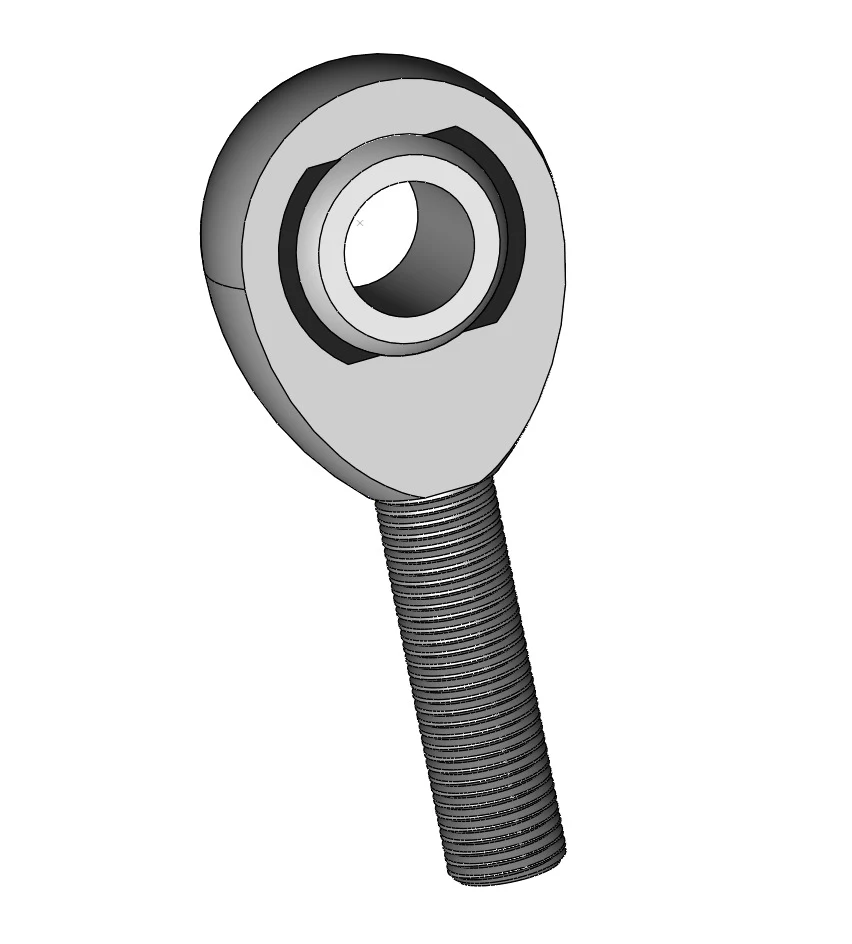

3D CAD preview

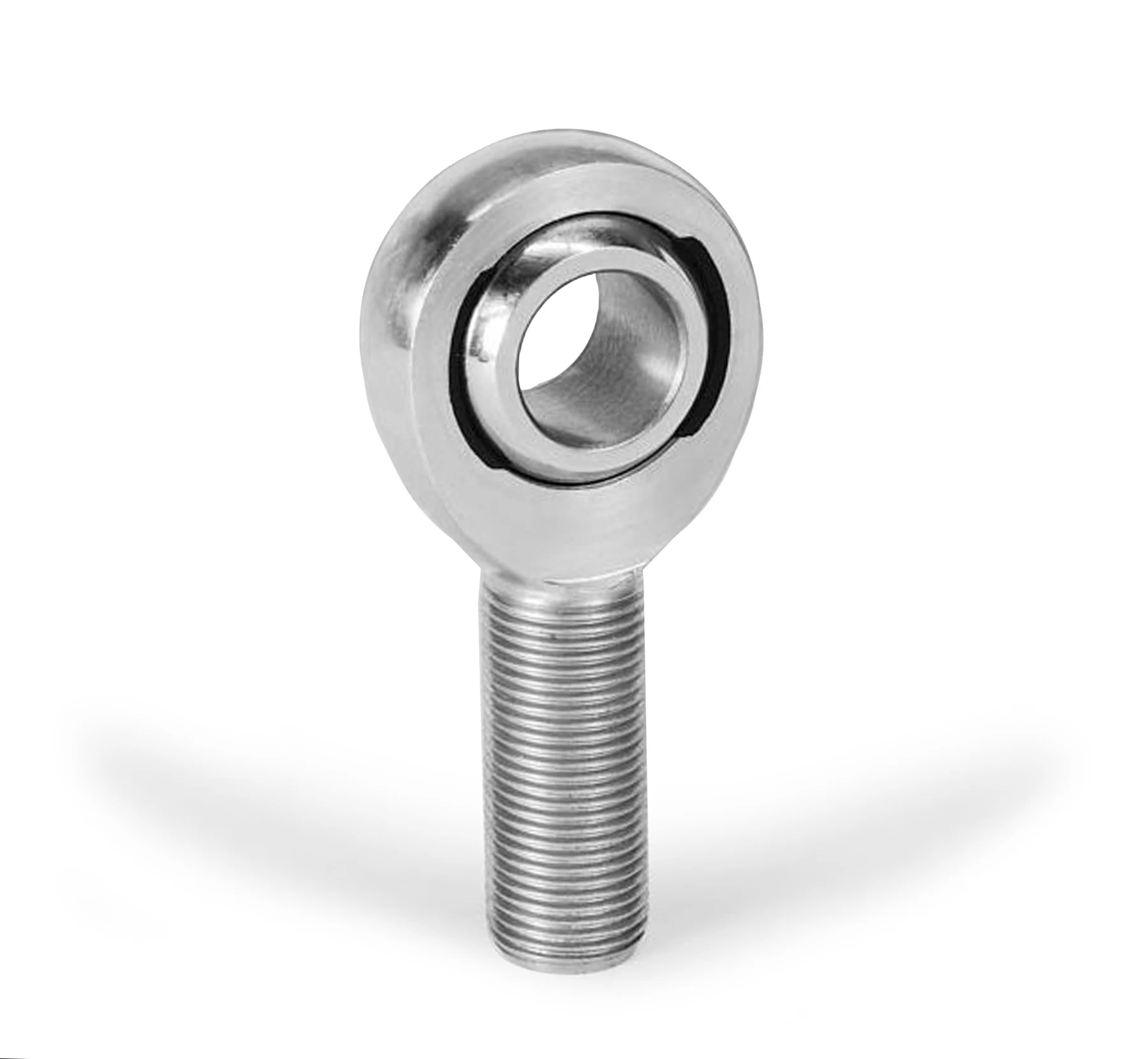

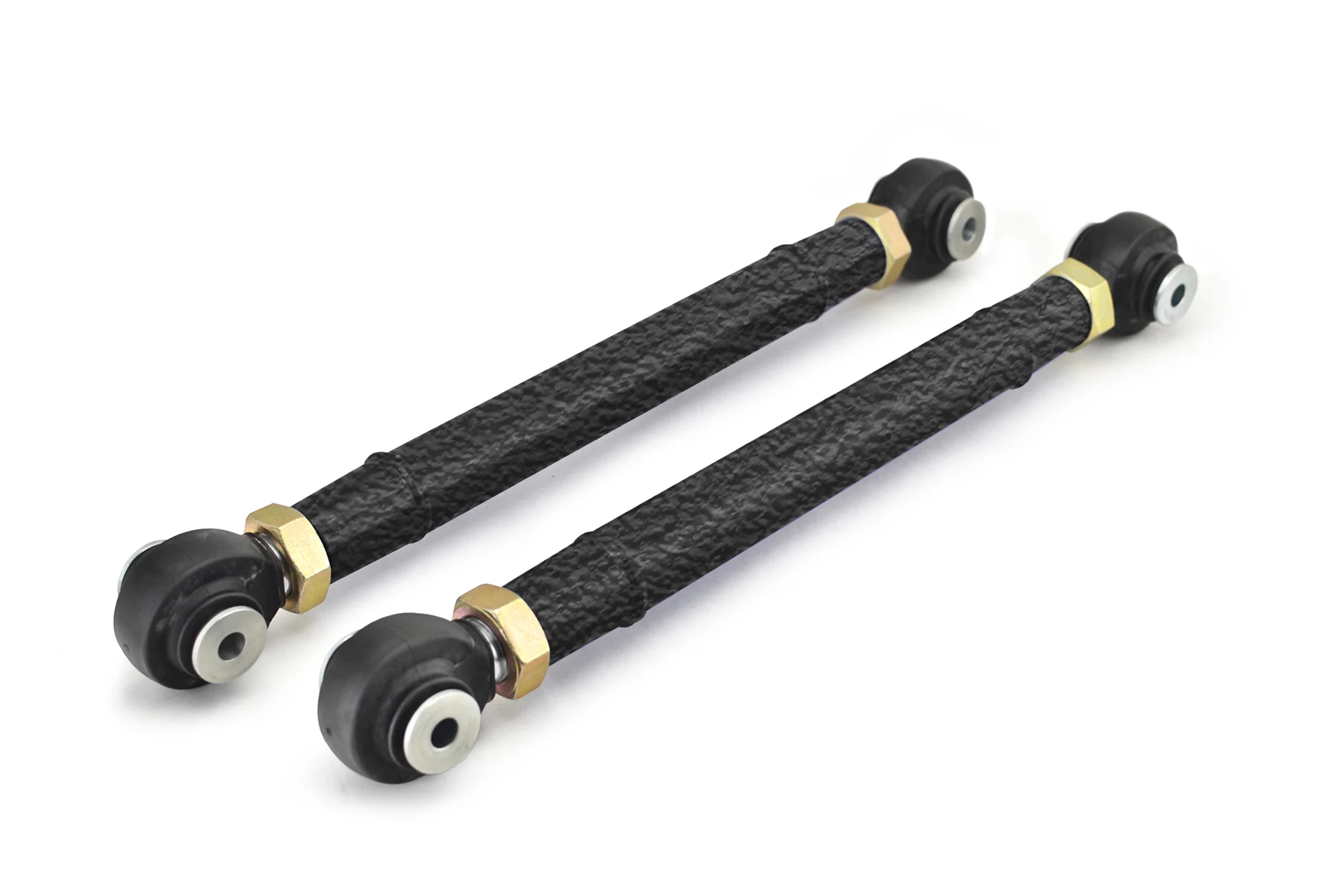

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$20.99 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Bore diameter | 0.251 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $20.99 |
| 2+ | $16.93 |
| 3+ | $14.15 |
| 4+ | $12.17 |
| 5+ | $11.92 |
| 10+ | $10.45 |
| 25+ | $7.81 |
| 50+ | $6.93 |
| 100+ | $6.29 |
| 250+ | $5.48 |
| 500+ | $4.69 |
| 1,000+ | $4.61 |
Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 0.251 |
| G | 1.562 |
| H | 1.000 |
| J | 0.750 |
| M | 0.281 |
| N | 0.375 |
| a° | 50° |
| Ultimate Radial Static Load (lbs) | 3,900 lbs 17,347 N |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Housing: 4130 heat treated chrome moly steel
Application: Our chrome moly rod MXM rod ends are ideal for most automotive after market suspensions such as control arms, end links.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More bearings, spherical rod end
Compare specifications and drawings to select the right part.
