Rod End Kits · Rod Ends, Bungs, Nuts

MXM-8: 1.000 OD x 0.083 W

MXM-8: 1.000 OD x 0.083 W , Rod End Kits, Rod Ends, Bungs, Nuts 1/2-20 Bungs fit 1.000 OD x 0.083 W

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

Photo 513 · JPG

$50.73 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Thread	1/2-20

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

Quantity	Price per piece
1+	$50.73
2+	$44.15
3+	$43.32
4+	$33.12
5+	$32.87
10+	$29.10
25+	$26.36
50+	$23.00
100+	$19.63
250+	$19.28

Drawing dimensions

Thread Size	1/2-20
Bungs Fit	1.000 OD x 0.083 W

Lettered dimensions refer to the drawing for this part.

Product information

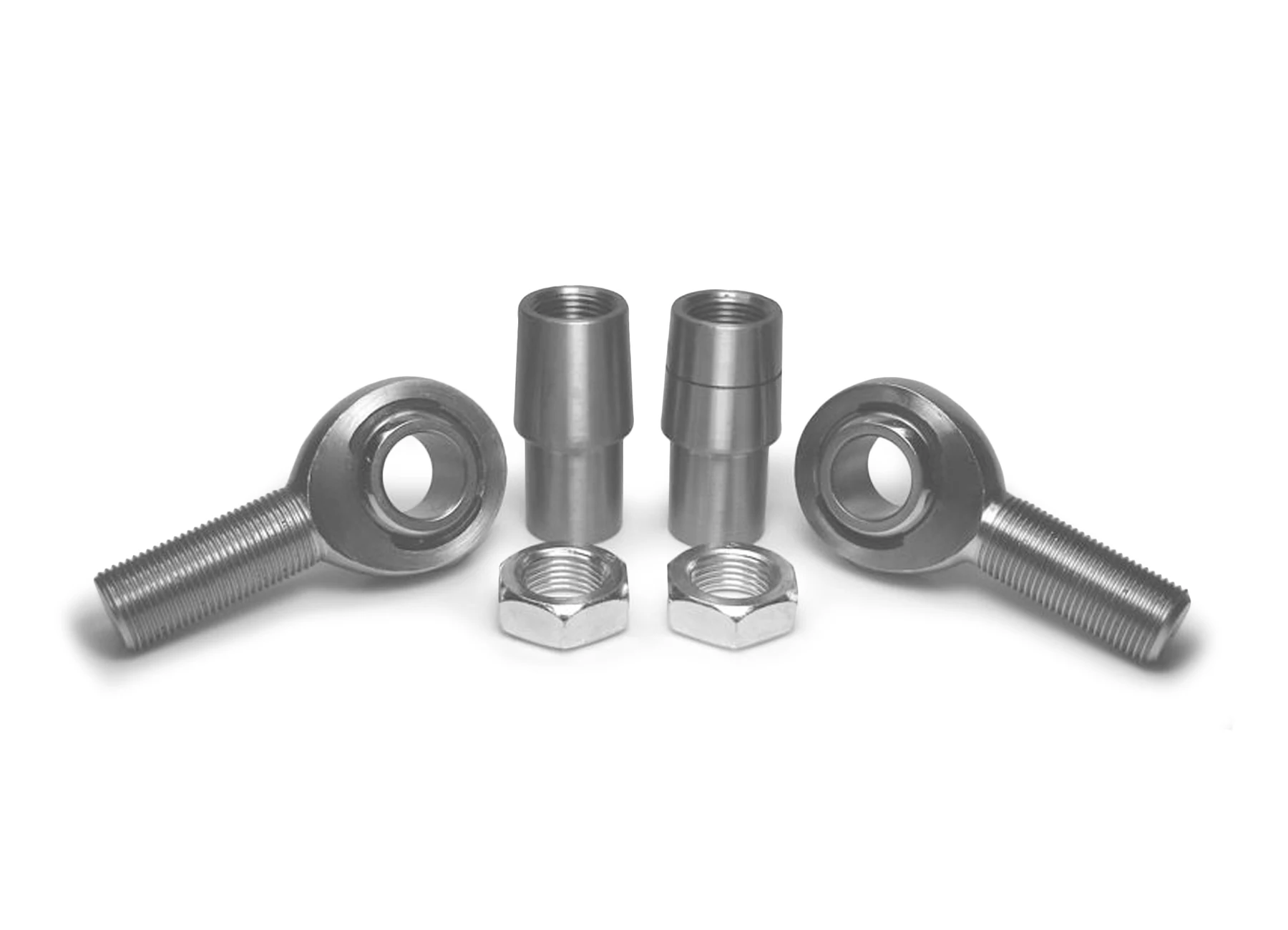

Each kit contains the following: (1) RH chrome moly male rod end (1) LH chrome moly male rod end (1) zinc clear (silver) RH jam nut (1) zinc clear (silver) LH jam nut (1) chrome moly thread bung (1) chrome moly thread bung
