MCPBearings, Spherical Rod End · Male
MXM-8-A

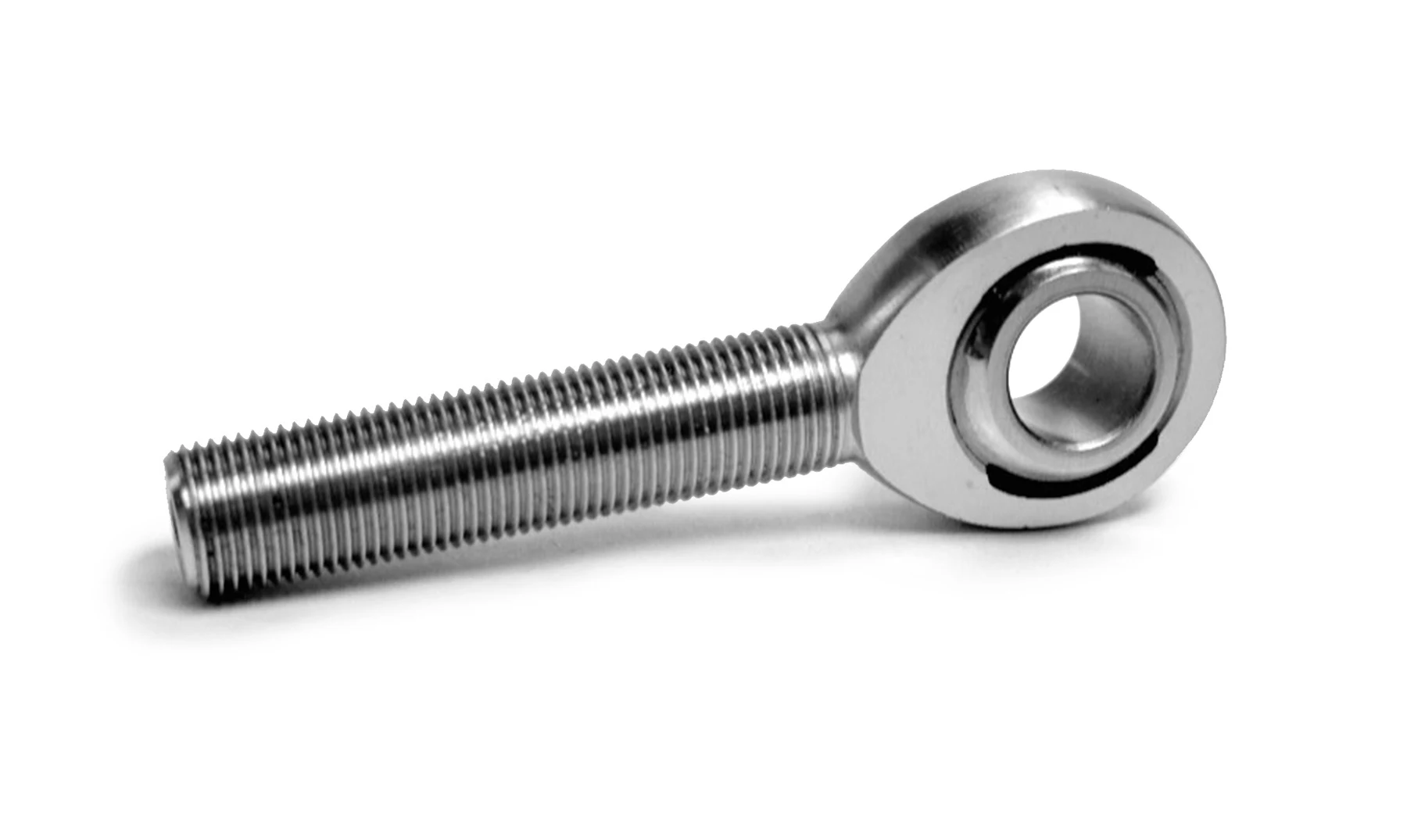

MXM-8-A, Bearings, Spherical Rod End, Male 1/2-20 RH Chrome Moly Housing, Slotted Nylon Race 0.501 Bore Extra Long

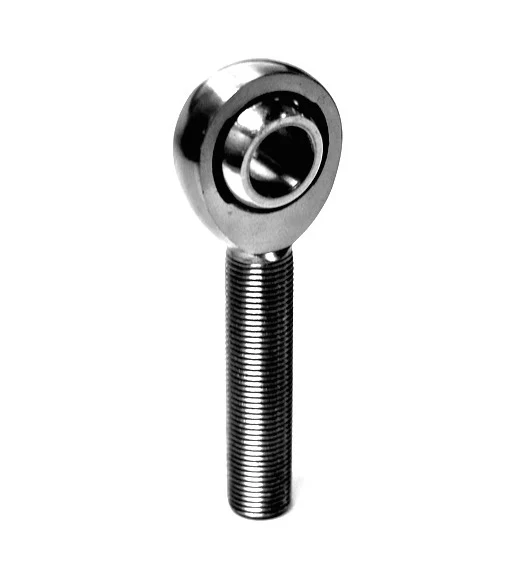

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$28.84 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 RH |
|---|---|
| Bore diameter | 0.501 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $28.84 |
| 2+ | $23.12 |
| 3+ | $19.71 |
| 4+ | $17.69 |
| 5+ | $17.44 |
| 10+ | $13.08 |
| 20+ | $11.54 |
| 30+ | $11.45 |
| 40+ | $10.76 |
| 50+ | $10.74 |
| 70+ | $10.39 |
| 100+ | $9.08 |
| 150+ | $9.06 |
| 300+ | $7.76 |
| 450+ | $7.61 |
Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| A | 0.501 |
| G | 3.438 |
| H | 2.500 |
| J | 1.312 |
| M | 0.453 |
| N | 0.625 |
| a° | 44° |
| Ultimate Radial Static Load (lbs) | 17,850 lbs |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Housing: 4130 heat treated chrome moly steel
Application: Our chrome moly rod MXM-A rod ends are ideal for most automotive after market suspensions such as control arms, end links. The extra long stem gives the added adjustment needed in many applications.
