MCPBearings, Spherical Rod End · Male
MXML-TRS-12-10
MXML-TRS-12-10, Bearings, Spherical Rod End, Male 3/4-16 LH Chrome Moly Housing, Slotted Nylon Race 5/8-18 RH Tapered Stud

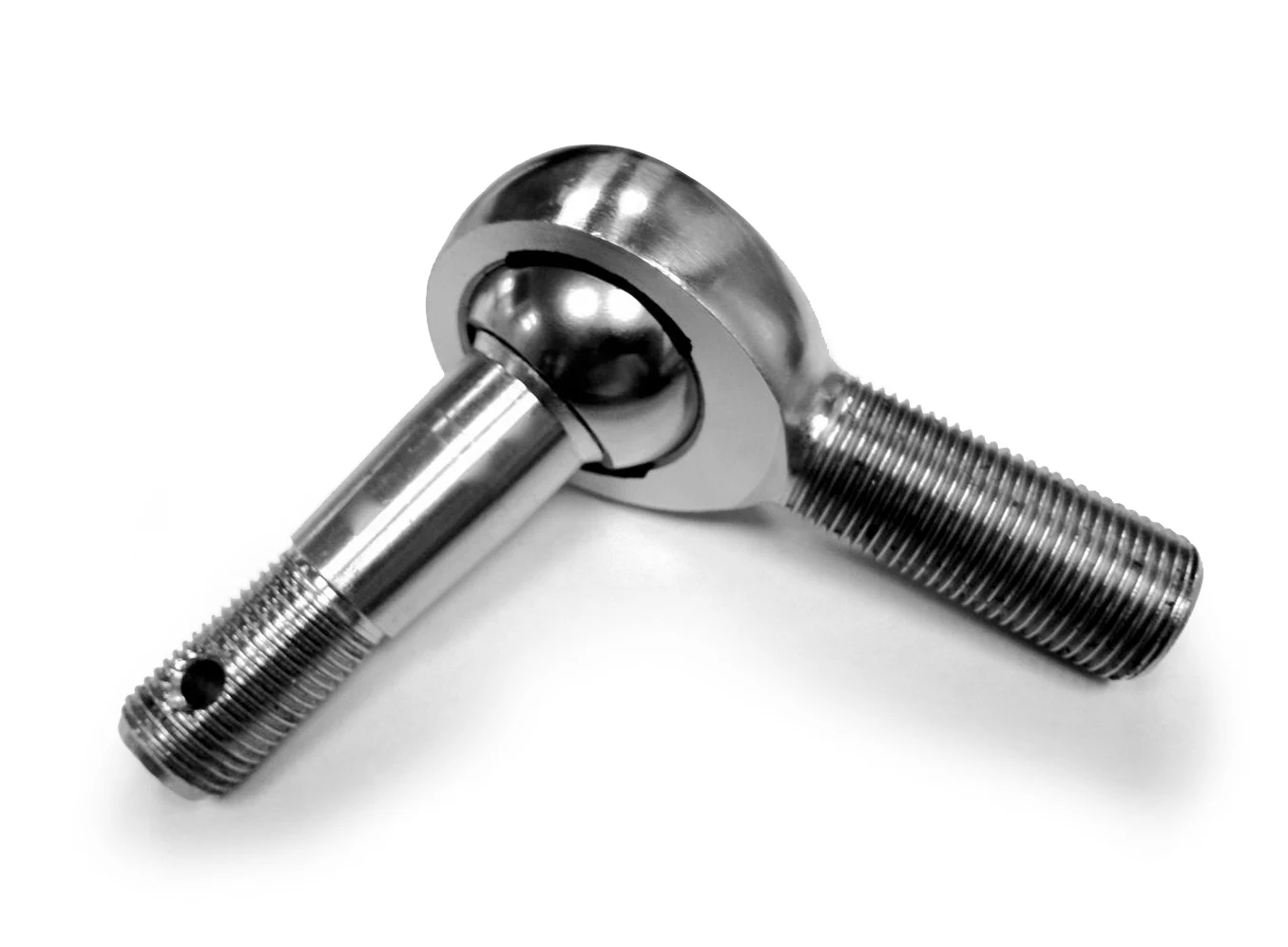

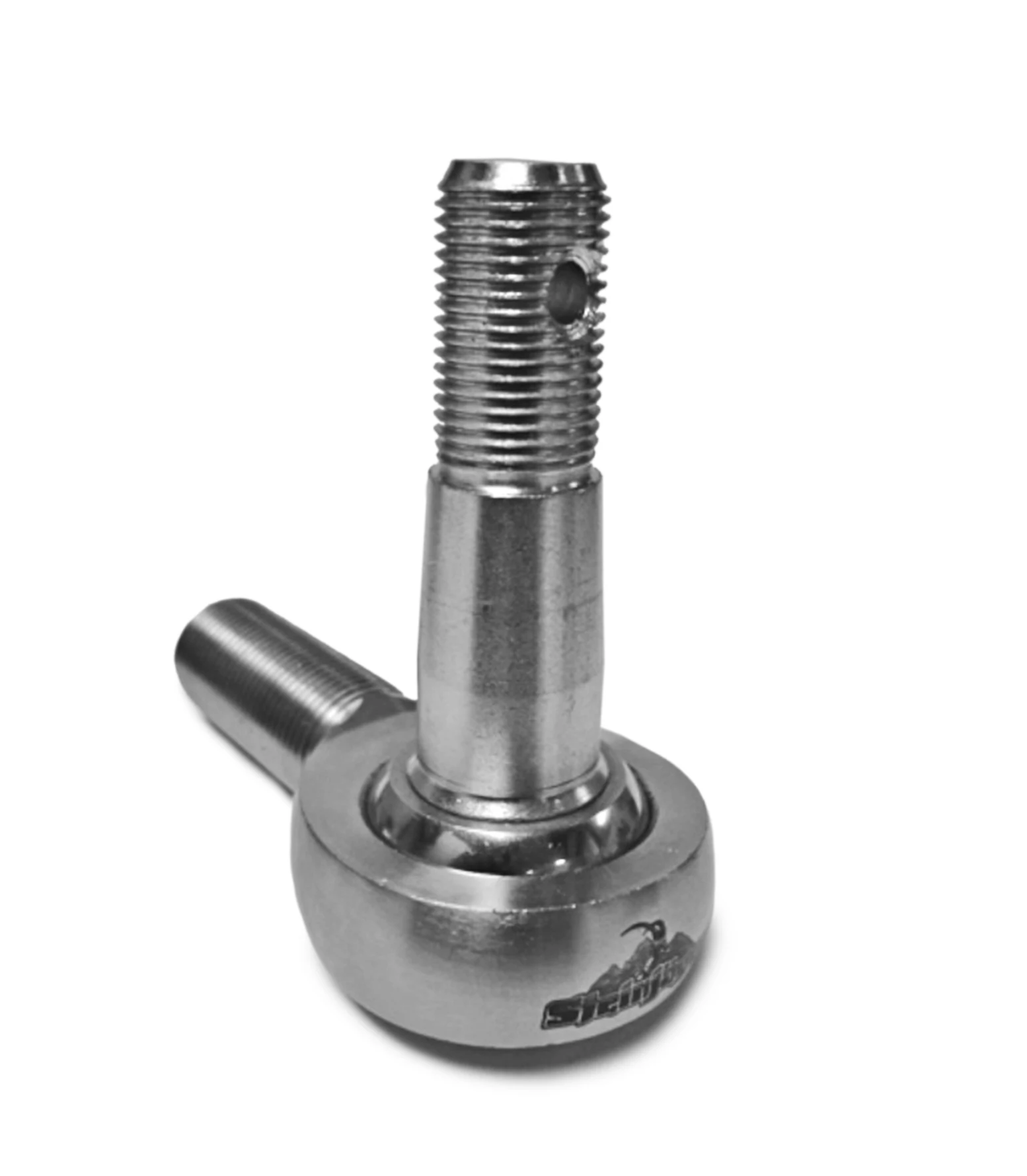

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$47.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing construction | Chrome Moly |
|---|---|
| Race material | Slotted Nylon |
| Housing thread | 3/4-16 LH |
| Stud thread | 5/8-18 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $47.21 |
| 2+ | $36.15 |
| 3+ | $35.31 |
| 4+ | $26.99 |
| 5+ | $26.74 |
| 10+ | $23.61 |
| 25+ | $21.99 |
| 50+ | $18.59 |
| 100+ | $15.91 |

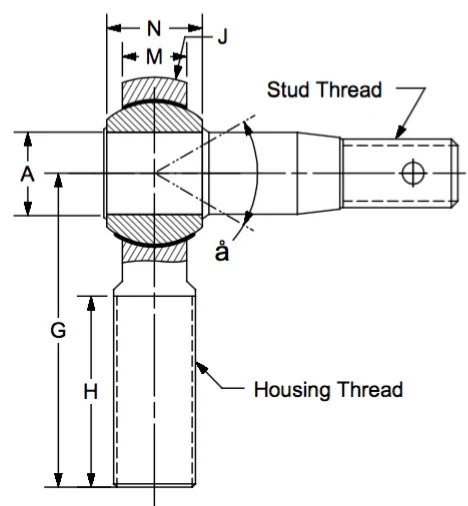

Drawing dimensions
| Housing Threads | 3/4-16 LH |
|---|---|
| A | 0.751 |
| G | 2.875 |
| H | 1.750 |
| J | 1.755 |
| M | 0.593 |
| N | 0.875 |
| a° | 36 |
| Ultimate Radial Static Load (lbs) | 27019 lbs 120,180 N |
| Stud Threads | 5/8-18 RH |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: slotted nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Housing: 4130 heat treated chrome moly steel
Application: Our chrome moly rod MXM rod ends are ideal for most automotive after market suspensions such as control arms, end links.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
