MXMX-16, Bearings, Spherical Rod End, Male 1-12 RH Chrome Moly Housing, Slotted Nylon Race 1.001 Bore Extra Long Housing and Threads
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$96.94 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1-12 RH |
|---|---|
| Bore diameter | 1.001 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $96.94 |
| 2+ | $72.84 |
| 3+ | $64.80 |
| 4+ | $64.39 |
| 5+ | $64.14 |
| 10+ | $58.24 |
| 20+ | $50.79 |
| 30+ | $43.49 |

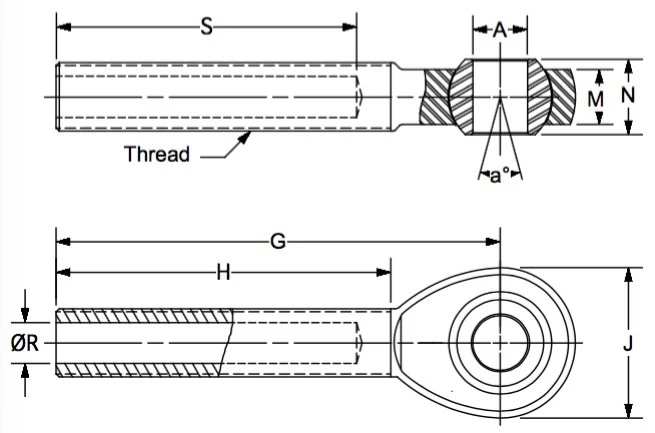

Drawing dimensions
| Threads | 1-12 RH |
|---|---|
| a° | 34 |
| A | 1.001 |
| G | 8.375 |
| H | 6.375 |
| J | 2.750 |
| M | 1.000 |
| N | 1.375 |
| J | 0.563 |
| S | 4.781 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Special Feature: 3x standard thread length with hollow stem for weight reduction.
