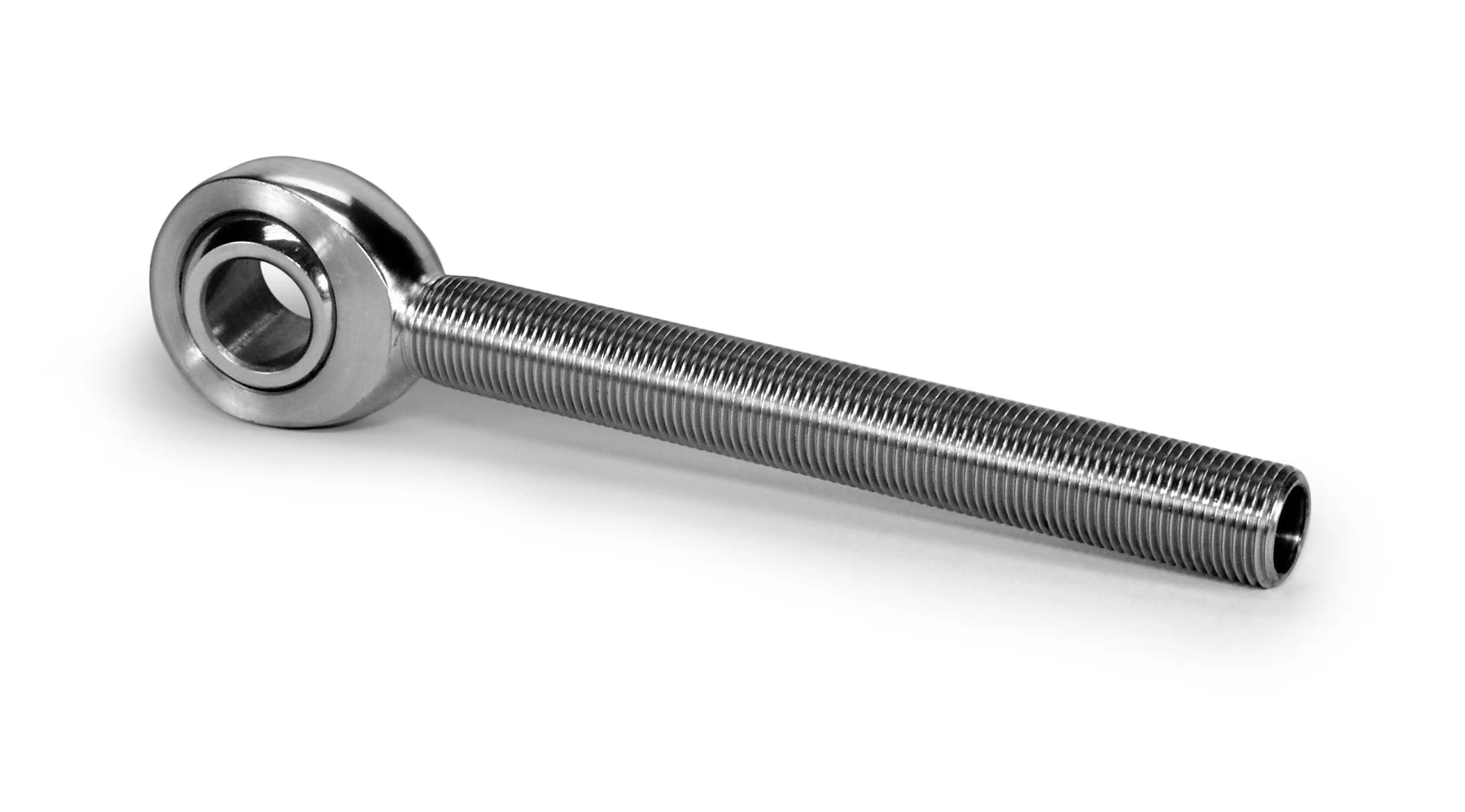

MXMX-4, Bearings, Spherical Rod End, Male 1/4-28 RH Chrome Moly Housing, Slotted Nylon Race 0.251 Bore Extra Long Housing and Threads
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$26.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Bore diameter | 0.251 |
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $26.27 |
| 2+ | $20.90 |
| 3+ | $17.77 |
| 4+ | $17.35 |
| 8+ | $15.29 |
| 12+ | $11.63 |
| 16+ | $11.53 |
| 20+ | $10.31 |
| 40+ | $10.19 |

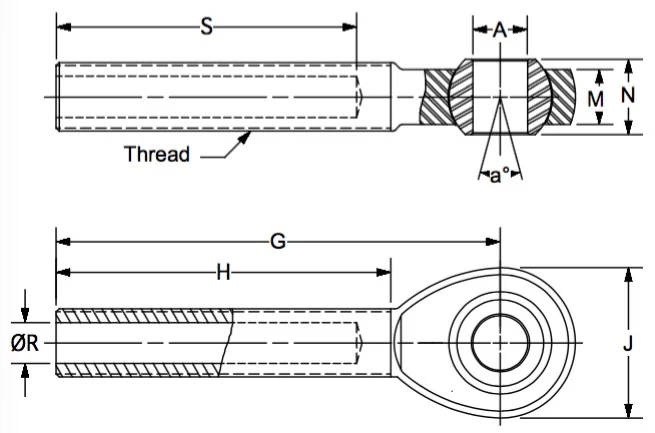

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| a° | 42 |
| A | 0.251 |
| G | 3.562 |
| H | 3.000 |
| J | 0.750 |
| M | 0.281 |
| N | 0.375 |
| J | 0.138 |
| S | 2.250 |
| Ultimate Radial Static Load (lbs) | 1666 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Special Feature: 3x standard thread length with hollow stem for weight reduction.
