MCPBearings, Spherical Rod End · Male
MXMXT-20-16

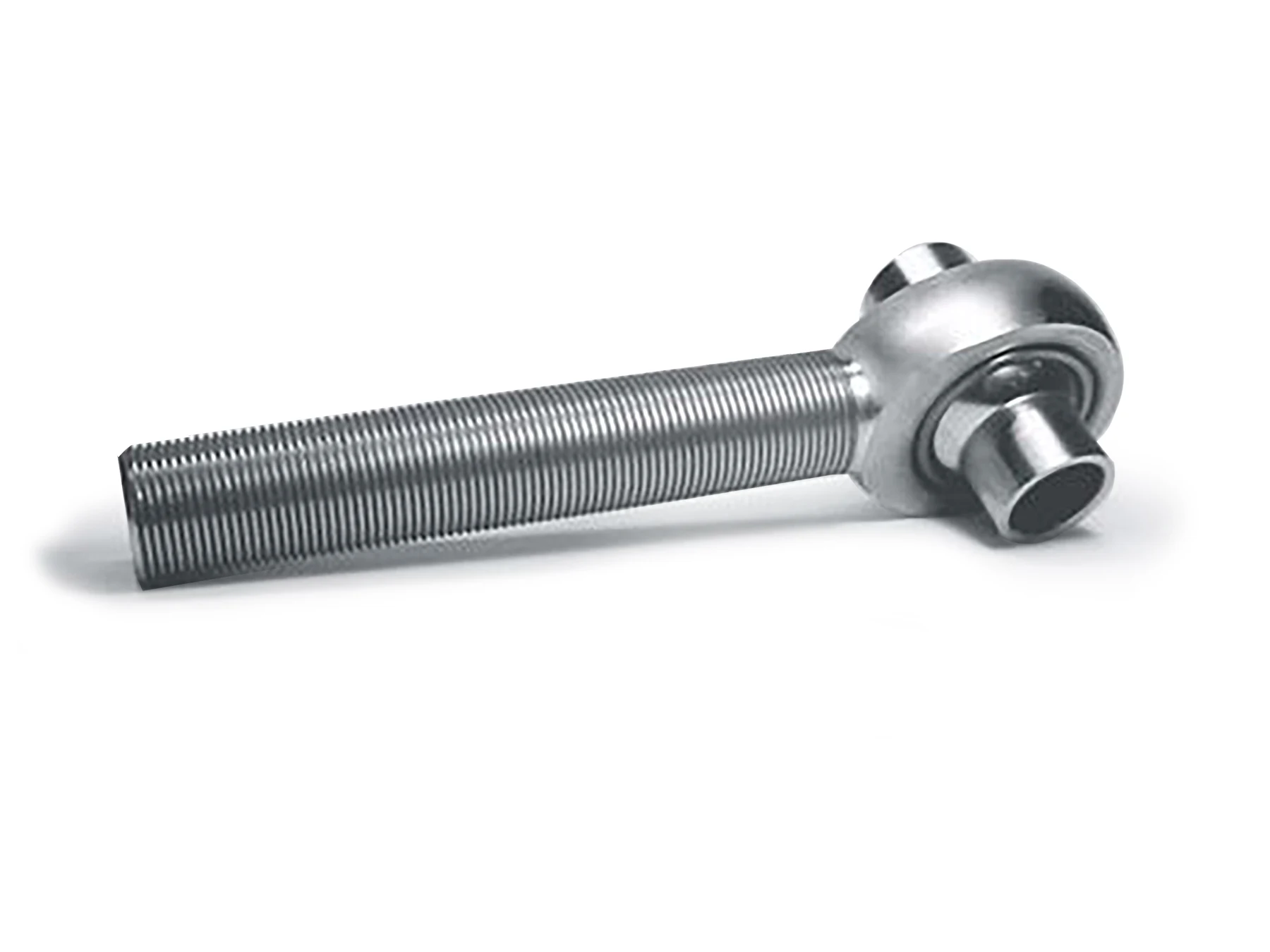

MXMXT-20-16, Bearings, Spherical Rod End, Male 1.25-12 RH Chrome Moly Housing, PTFE Race 1.001 Bore Trunion (Wide) Ball
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$99.46 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1.25-12 RH |
|---|---|
| Bore diameter | 1.001 |
| Housing construction | Chrome Moly |
| Race material | PTFE |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $99.46 |
| 2+ | $74.78 |
| 3+ | $66.56 |
| 4+ | $66.14 |
| 8+ | $61.81 |
| 12+ | $59.76 |
| 16+ | $52.26 |
| 20+ | $52.20 |
| 24+ | $52.16 |
| 32+ | $44.56 |
| 40+ | $44.52 |

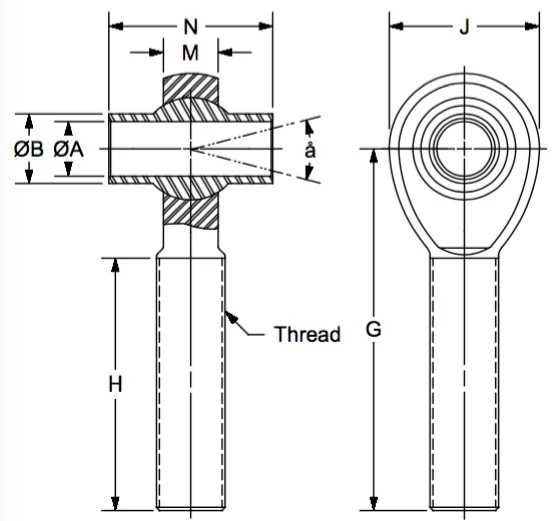

Drawing dimensions
| Threads | 1.25-12 RH |
|---|---|
| a° | 29 |
| A | 1.001 |
| B | 1.275 |
| G | 8.375 |
| H | 6.375 |
| J | 2.750 |
| M | 1.000 |
| N | 3.000 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: PTFE
Ball: heat treated, hard chrome plated bearing steel, trunion style
Finish: bright polished chrome
Special Feature: 3x standard thread length, trunion ball for high misalignment applications such as automotive aftermarket control arms for off-roading.
