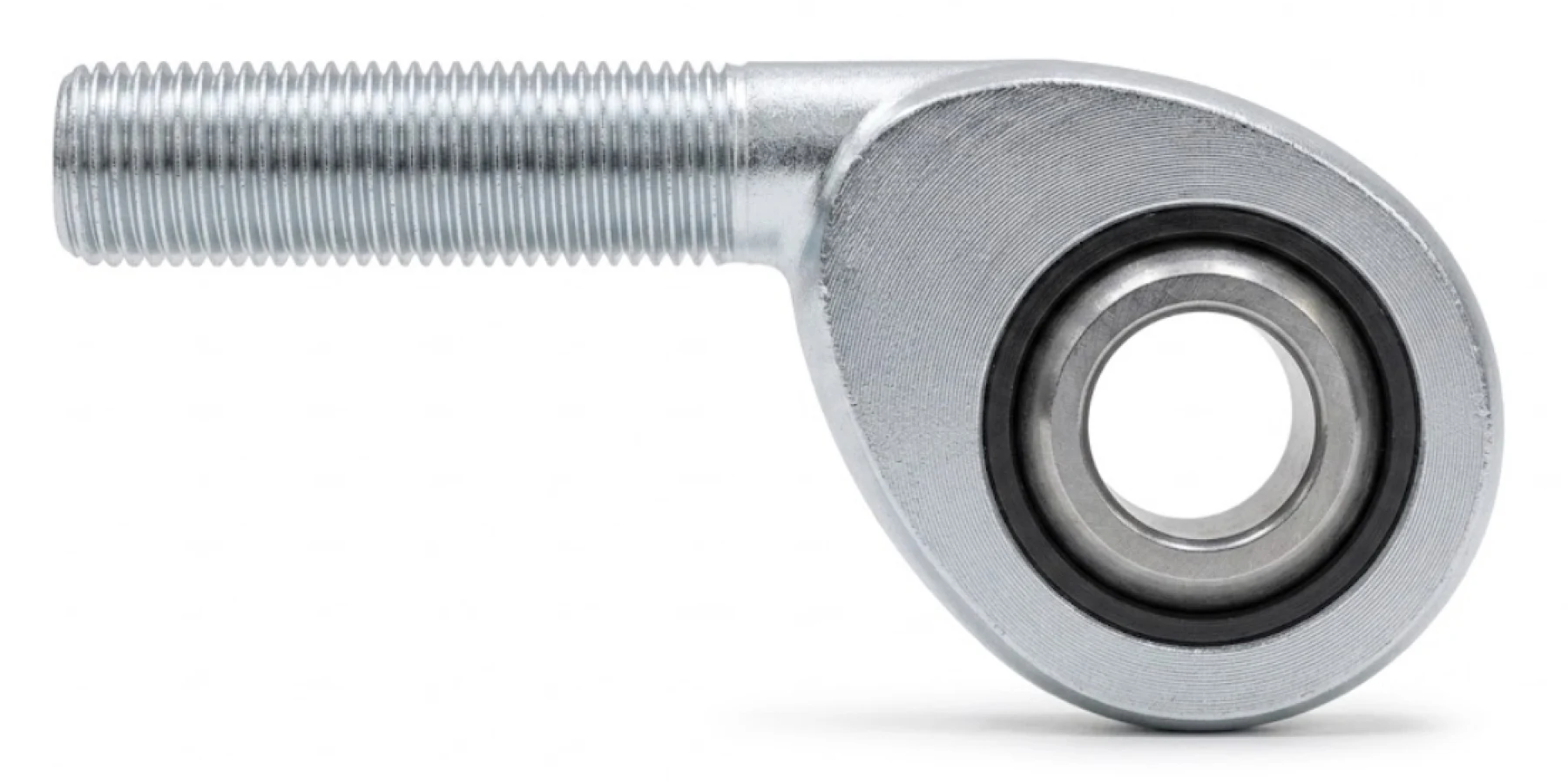

MCPBearings, Spherical Rod End · Male
MXOL-3
MXOL-3, Bearings, Spherical Rod End, Male 10-32 LH Chrome Moly Housing, Nylon Race Offset Housing

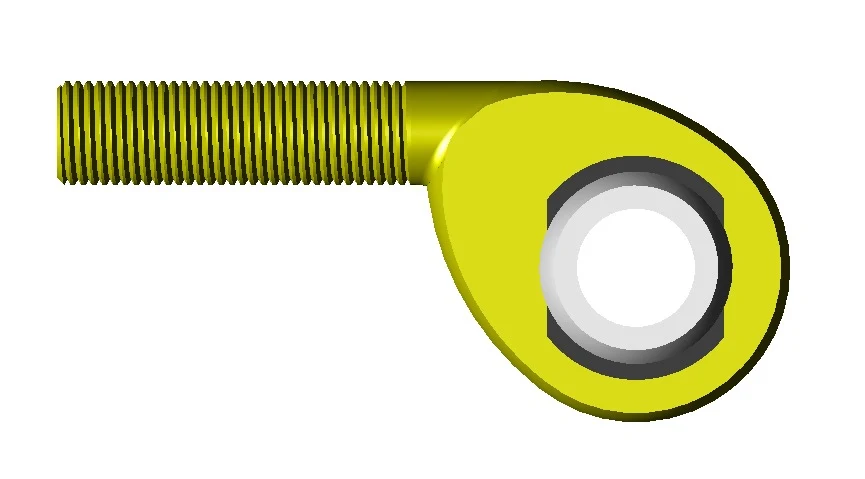

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$27.58 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 LH |
|---|---|
| Bore diameter | 0.19 |
| Housing construction | Chrome Moly |
| Race material | Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $27.58 |
| 2+ | $22.03 |
| 3+ | $18.76 |
| 4+ | $18.34 |
| 5+ | $16.57 |
| 10+ | $12.41 |
| 25+ | $10.89 |
| 50+ | $10.18 |
| 100+ | $8.60 |

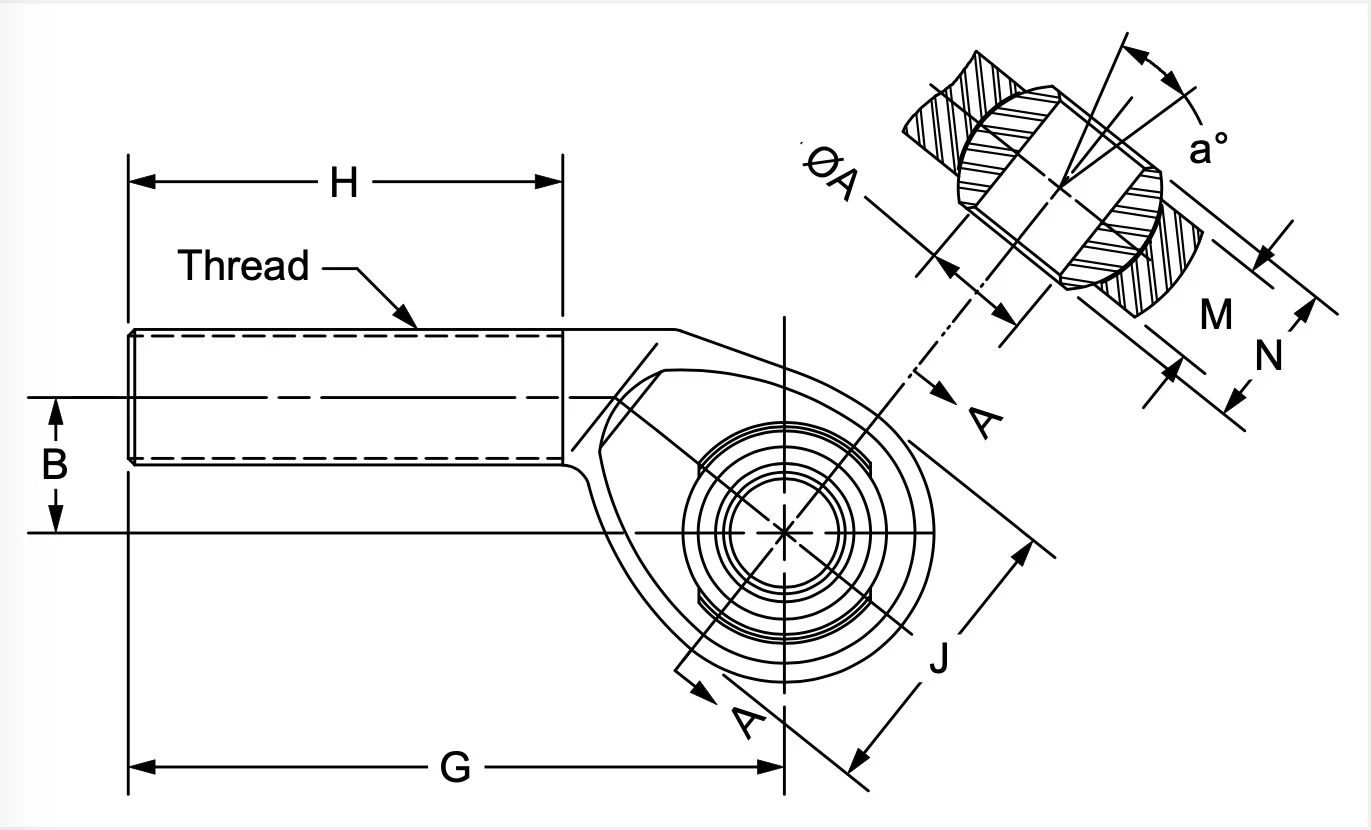

Drawing dimensions
| Thread | 10-32 LH |
|---|---|
| A (Bore) | 0.190 |
| B | 0.309 |
| G | 1.327 |
| H | 0.750 |
| J | 0.625 |
| M | 0.250 |
| N | 0.312 |
| a° | 25 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: MXO-series spherical rod ends may be assembled to a pipe or tube connecting linkage to allow misalignment between two moving points. The offset thread feature provides for a unique unlimited adjustment opportunity
Ball: heat treated, hard chrome plated bearing steel
Bearing Race: slotted nylon
Finish: bright polished chrome
Housing: 4130 heat treated chrome moly steel
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
