MCPBearings, Spherical Rod End · Male
MXTT-8

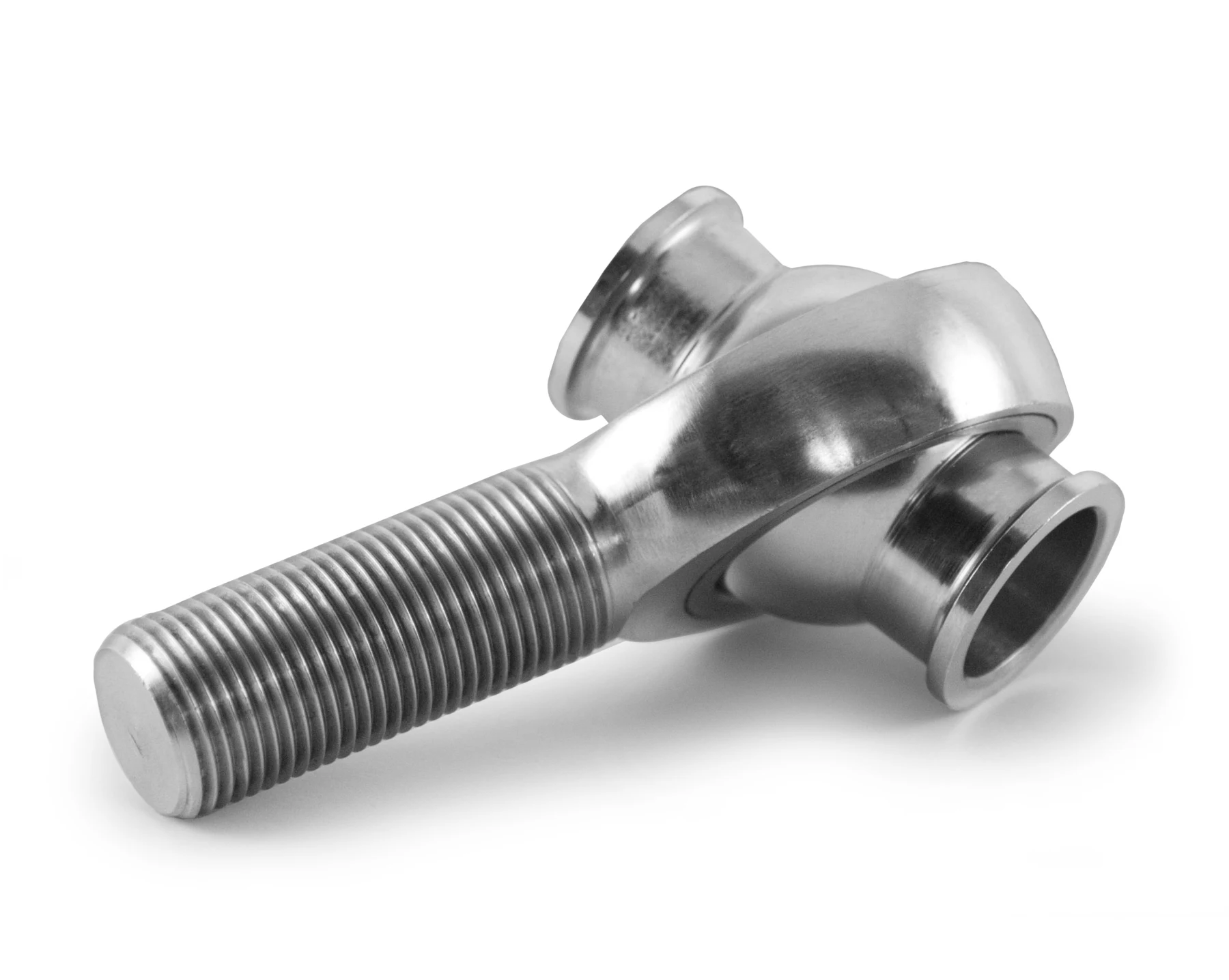

MXTT-8, Bearings, Spherical Rod End, Male 1/2-20 RH Chrome Moly Housing, PTFE Race 0.501 Bore 1.481 Wide Trunion Ball

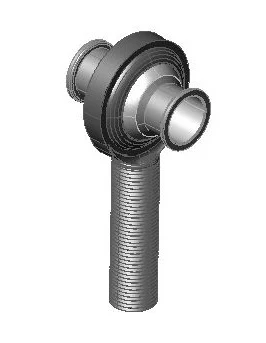

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$33.41 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 RH |
|---|---|
| Bore diameter | 0.501 |
| Housing construction | Chrome Moly |
| Race material | PTFE |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $33.41 |
| 2+ | $24.00 |
| 3+ | $23.17 |
| 4+ | $20.83 |
| 5+ | $20.58 |
| 10+ | $15.48 |
| 20+ | $13.69 |
| 40+ | $12.80 |
| 60+ | $12.38 |
| 80+ | $10.82 |
| 100+ | $10.80 |
| 140+ | $9.26 |
| 180+ | $9.25 |
| 240+ | $9.25 |

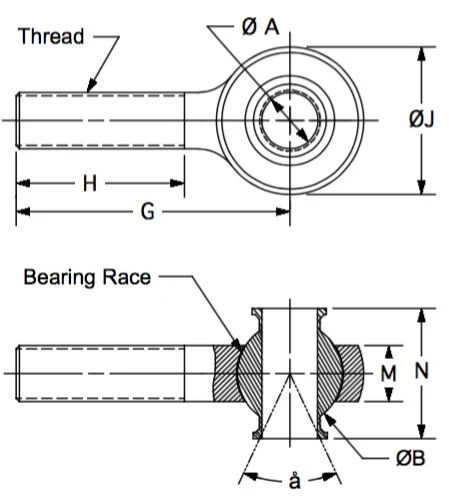

Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| A | 0.501 |
| a° | 36° |
| B | 0.937 |
| G | 2.438 |
| H | 1.500 |
| J | 1.312 |
| M | 0.453 |
| N | 1.481 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: PTFE
Finish: Chrome Plated
Special Feature: Trunnion ball
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
