MCPBearings, Spherical Rod End · Female
OTF-4

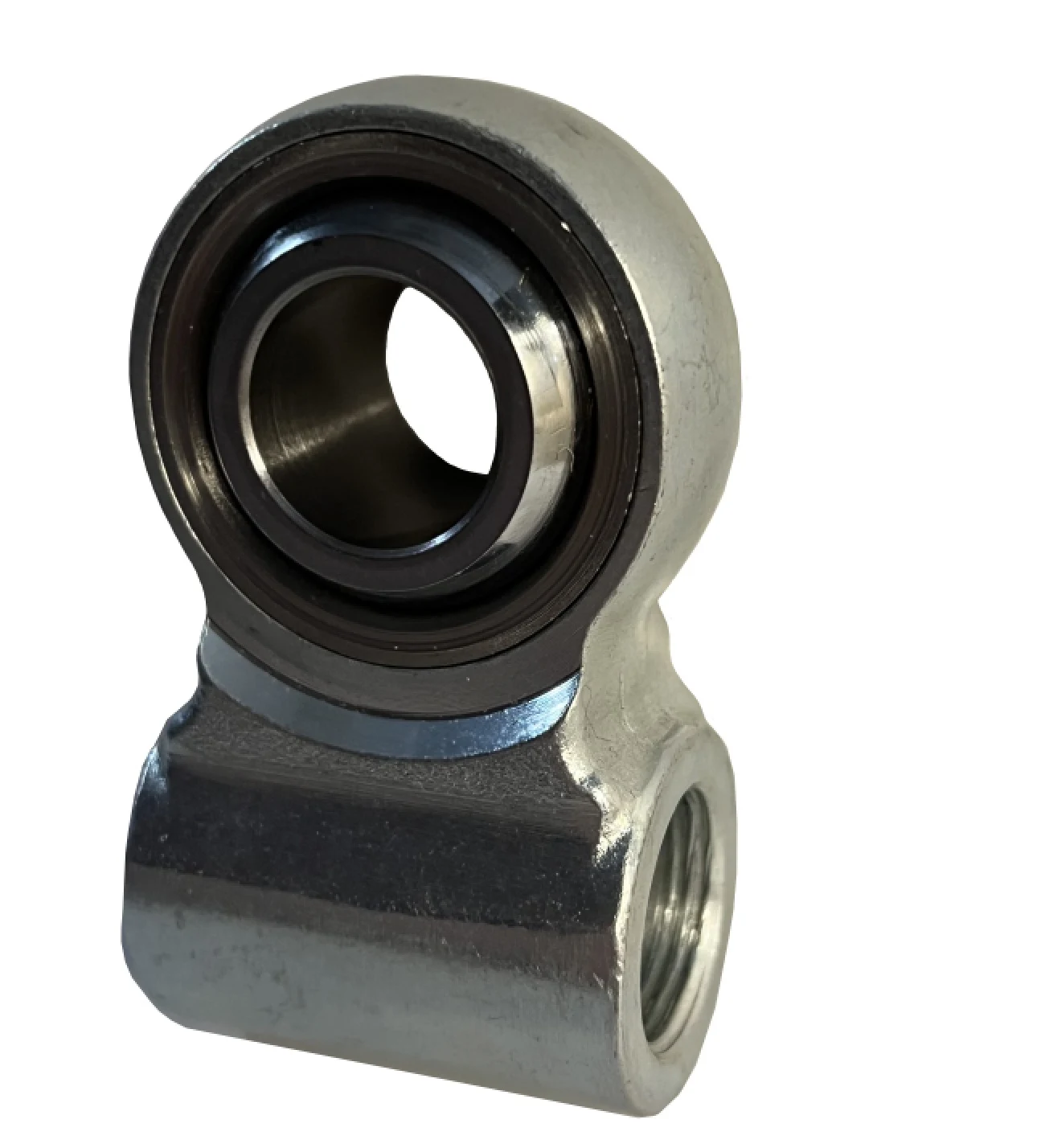

OTF-4, Bearings, Spherical Rod End, Female 1/4-28 RH Steel Housing, PTFE Race Offset Housing Thread Design Patent Pending

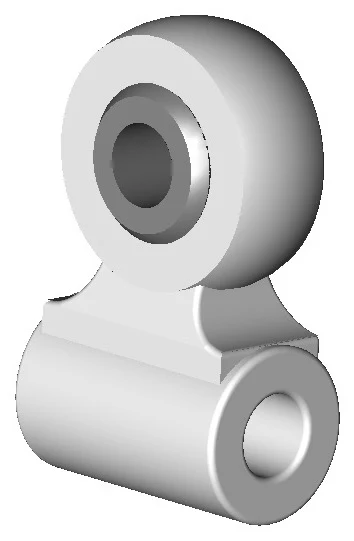

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.94 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Housing construction | Steel |
| Race material | PTFE |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.94 |
| 2+ | $15.08 |
| 3+ | $12.55 |
| 4+ | $12.13 |
| 5+ | $10.52 |
| 10+ | $9.17 |
| 25+ | $6.83 |
| 50+ | $6.05 |
| 100+ | $5.66 |

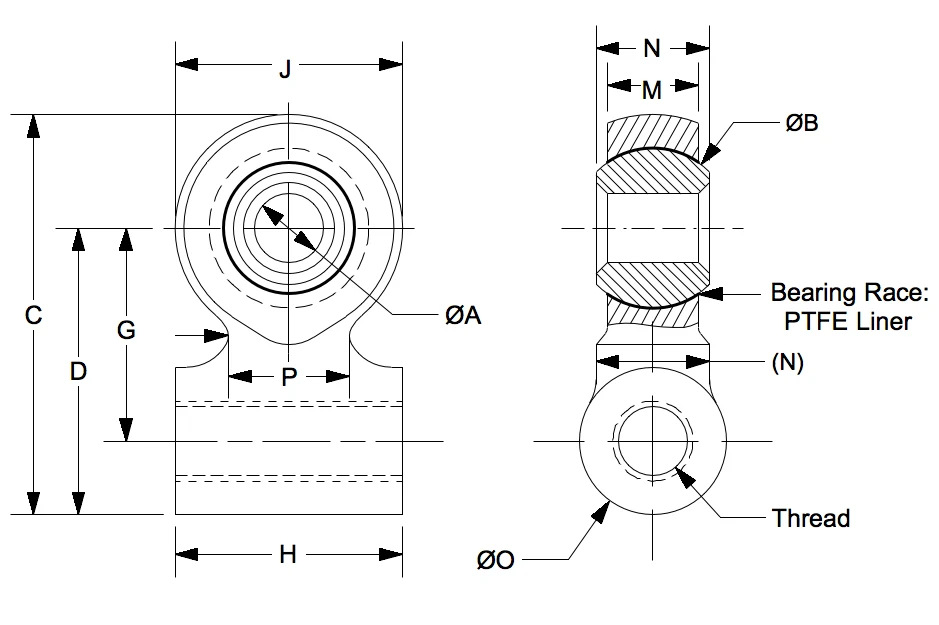

Drawing dimensions
| Thread | 1/4-28 RH |
|---|---|
| A | 0.251 |
| B | 0.509 |
| C | 1.279 |
| D | 0.905 |
| G | 0.670 |
| H | 0.750 |
| J | 0.750 |
| M | 0.276 |
| N | 0.375 |
| O | 0.469 |
| P | 0.438 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: OTF-series spherical rod ends may be assembled to a rod, pipe, tube or cable connecting linkage to allow misalignment between two moving points. The offset thread feature provides for a unique unlimited adjustment opportunity
Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance.
Bearing Race: PTFE
Housing: low carbon steel, plated and dichromate treated for corrosion resistance.
Patented: US Patent# D1,097,902
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
