Rods, Bent · Standard Designs

PBR-375

PBR-375, Rods, Bent, Standard Designs 3/8-24 RH Zinc Plated

Product image
PBR-375 product image

$17.00 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Thread3/8-24 RH

Values without units follow the drawing.

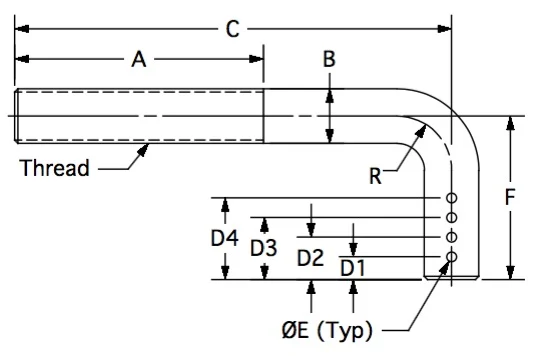

Drawing & dimensions

PBR-375 dimension drawing
Threads3/8-24 RH
A1.500
B0.375
C2.875
D10.188
D20.375
D30.563
D40.750
E0.125
F1.375
R0.406
Item envelope L × W × H (in)2.875 × 1.375 × 0.375
Unit weight (lb)0.129

Lettered dimensions refer to the drawing for this part.

Additional photos

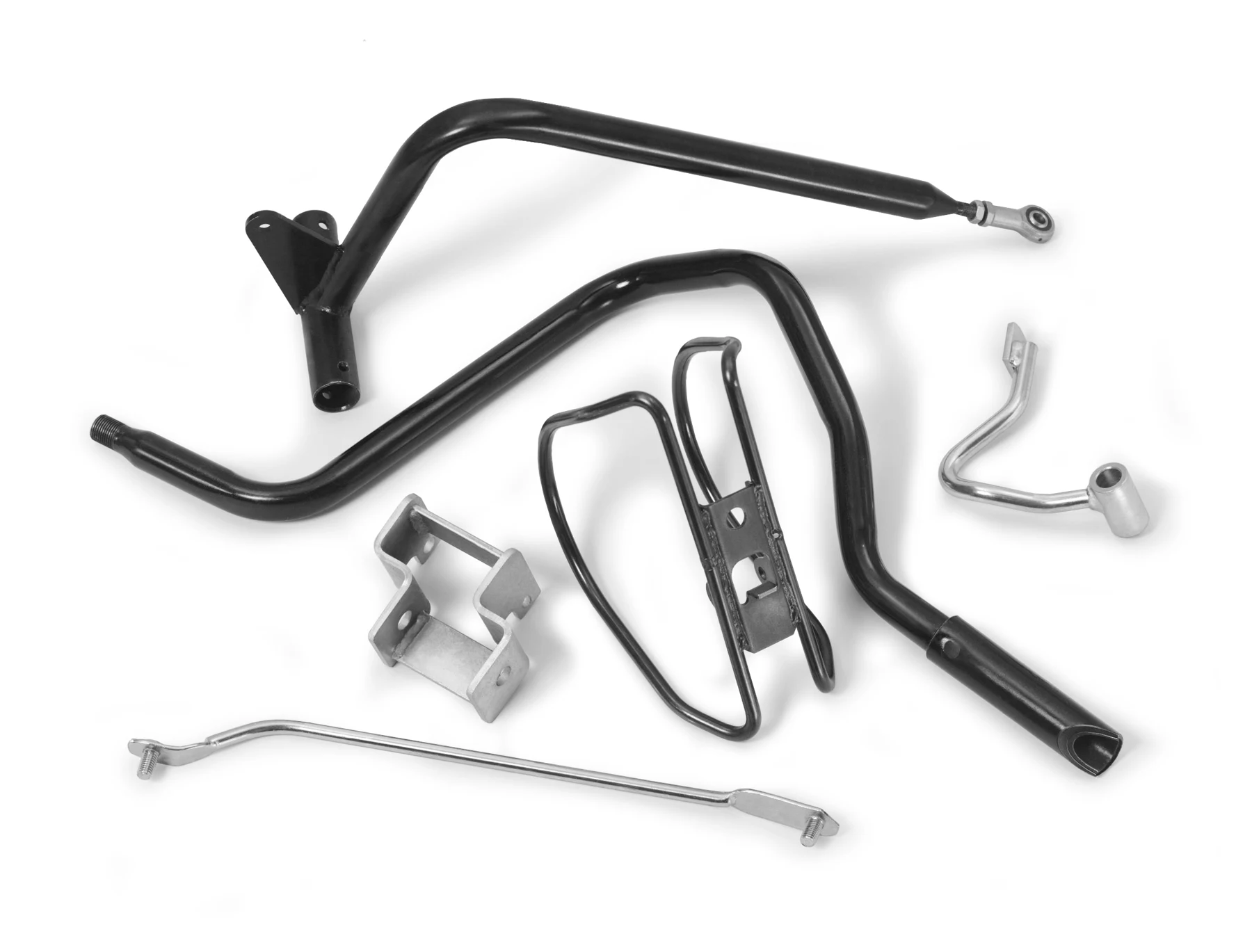

Additional product photo
PBR-375 additional product photo

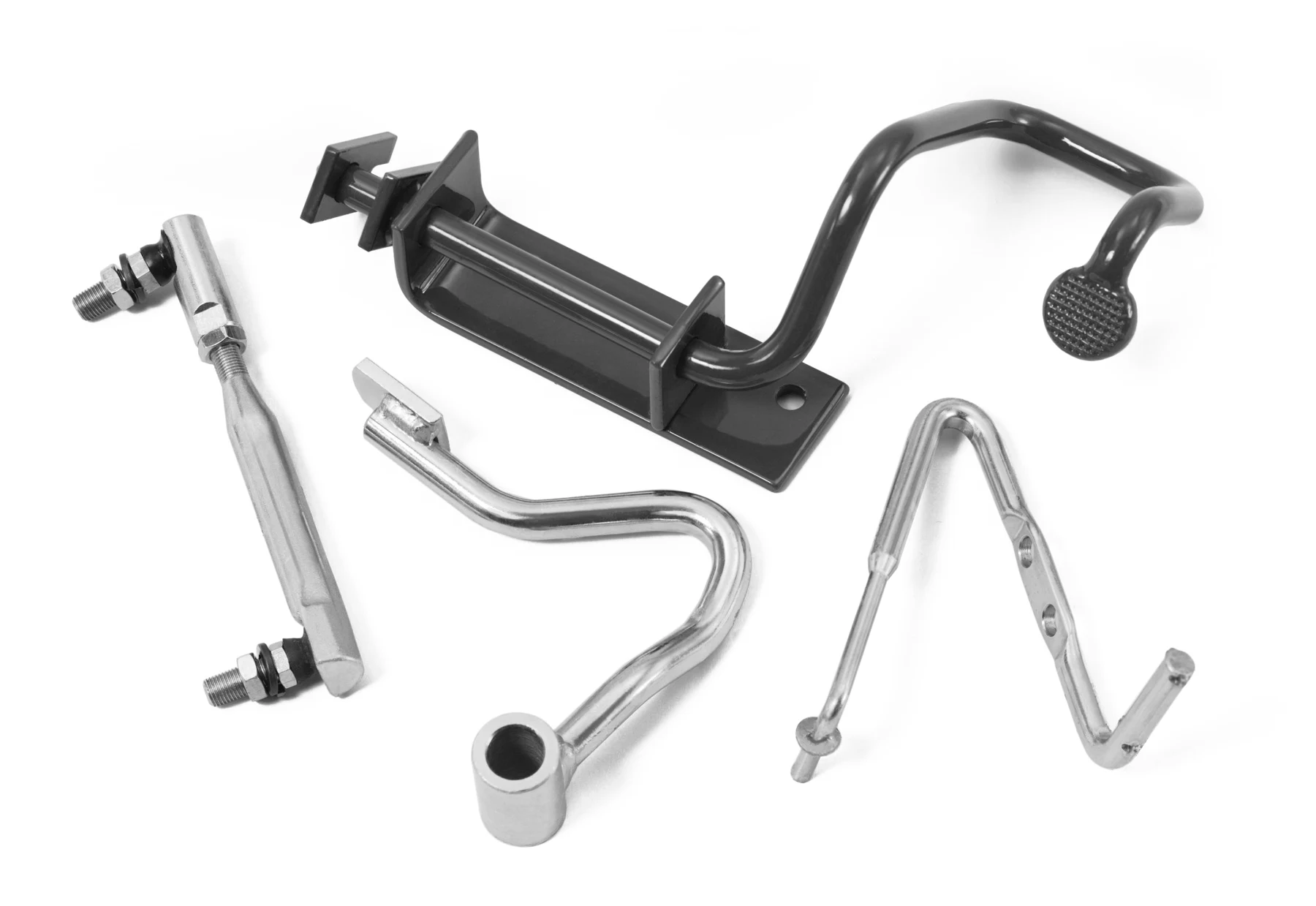

Additional product photo
PBR-375 additional product photo

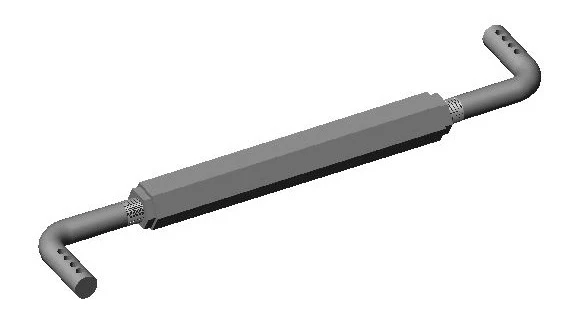

Additional product photo
PBR-375 additional product photo

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$17.00
2+$10.84
3+$9.19
4+$8.78
5+$7.51
10+$6.20
25+$4.17
50+$3.67
100+$3.62
250+$2.87

Product information

Material: C1018 steel Finish: Plated Zinc Clear Custom Rods: Midwest Control Products fabricates thousands of unique, customer-specific rod and wireform designs, utilizing cnc bending, rotary bending, press bending, press forming, hot and cold forming, hot and cold forging, upset forging, cold heading, roll threading, cut threading, cnc lathe machining, closed die forging, zinc plating, drilling, rotary swaging, assembly, in-house powder painting, in-house tooling, milling and more.

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
