MCPRod Ends, Isolated · Female
PREF-08R-08-1.500
PREF-08R-08-1.500, Rod Ends, Isolated, Female 1/2-20 RH 0.510 Bore 1.424 Width 2.125 Length Polyurethane Bushing

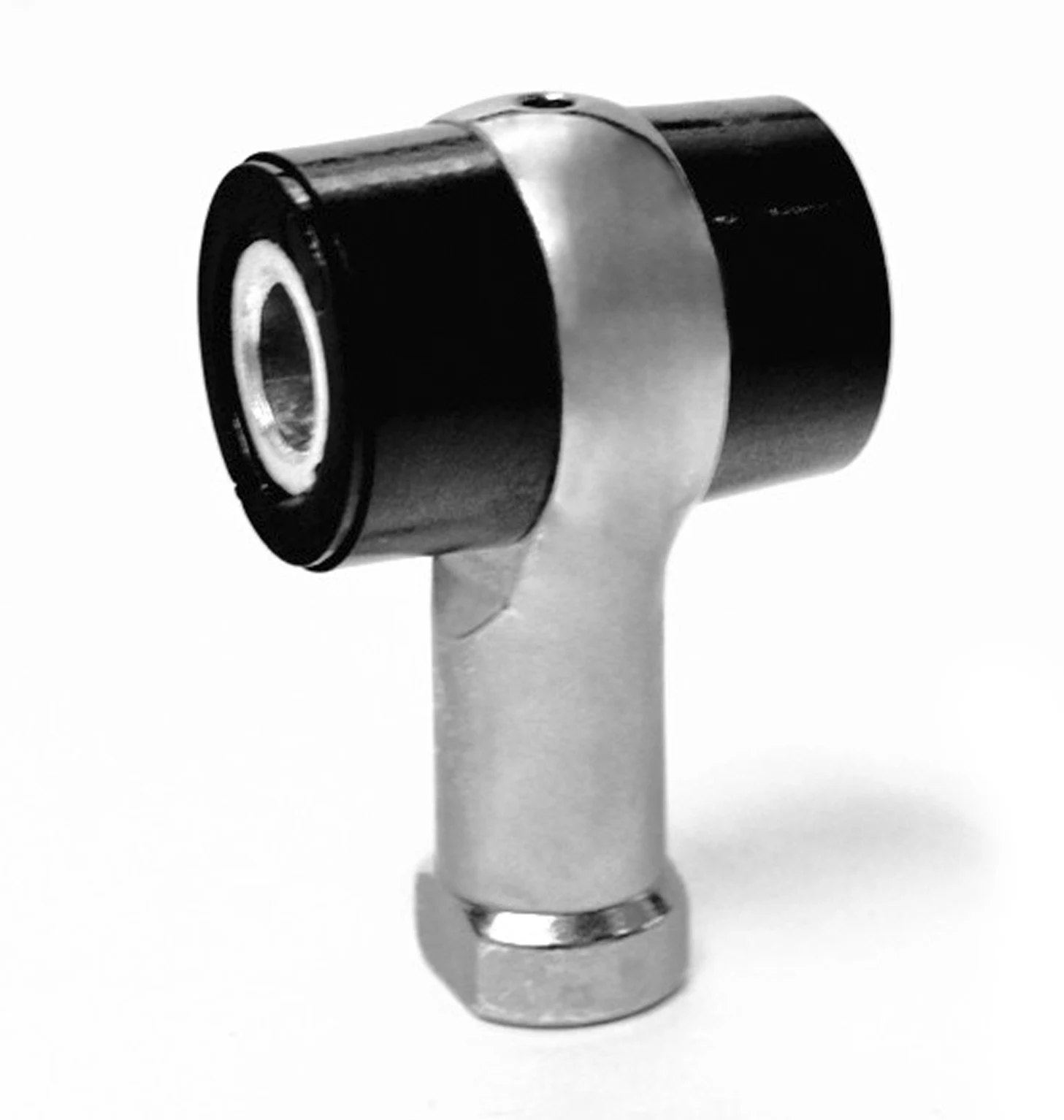

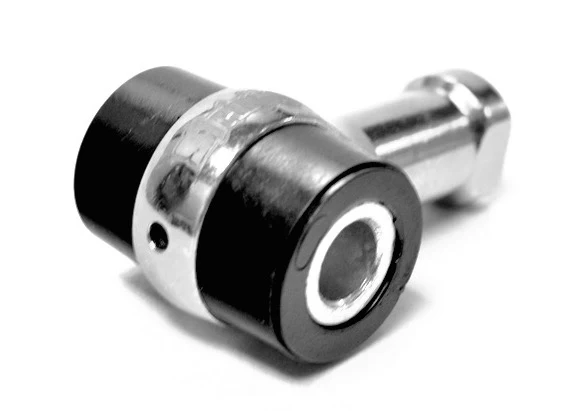

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$32.73 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 RH |
|---|---|
| Length | 2.125 |
| Bore diameter | 0.51 |
| Width | 1.424 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $32.73 |
| 2+ | $26.49 |
| 3+ | $22.66 |
| 4+ | $20.37 |
| 5+ | $20.12 |
| 10+ | $15.13 |
| 25+ | $13.33 |
| 50+ | $12.10 |
| 100+ | $10.56 |
| 250+ | $9.01 |
| 500+ | $8.85 |
| 1,000+ | $8.85 |
Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| A | 0.510 |
| C | 2.781 |
| G | 2.125 |
| H | 1.187 |
| J | 1.312 |
| N | 1.424 |
| O | 0.875 |
| P | 0.750 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: MCP isolated linkage rod ends may be assembled to a rod, pipe, tube or cable connecting linkage to reduce the structural noise and vibration often generated by drive lines, engines, transmissions, motors, mufflers, hydraulic systems, steering pumps, etc. An isolated rod end interrupts the traditional noise path found in control cables, cab mounts, hydraulic lines, radiator mounts, sub frames, control linkages, supports and braces.
Construction: forged steel housing, plated zinc yellow, with an polyurethane bushing and a plated steel insert.
Specials: Specials are available upon request and in volume.
Video: https://www.youtube.com/watch?v=sxzO_ZCOEl4
