MCPBall Joints · Female
QD250

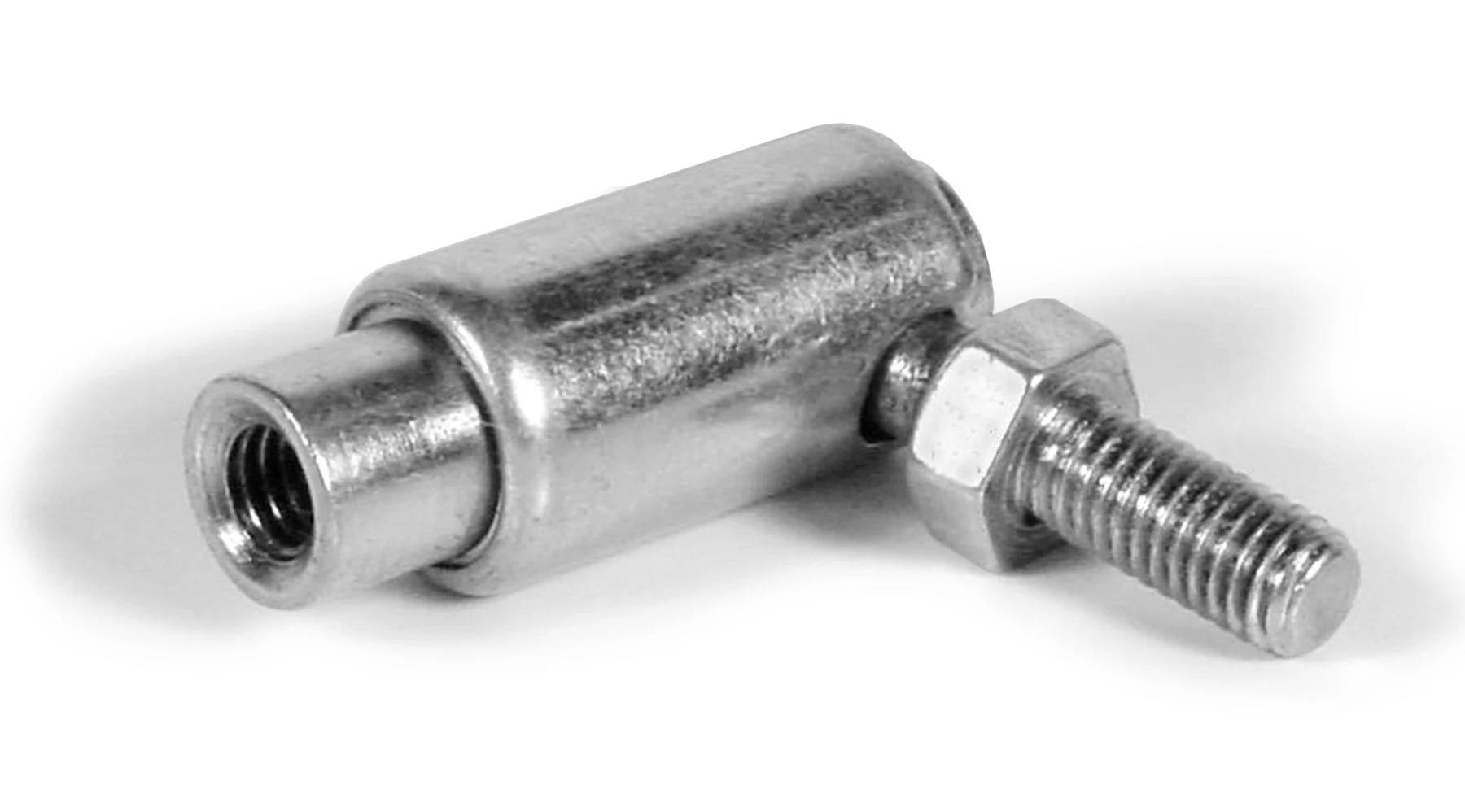

QD250, Ball Joints, Female 1/4-28 RH Housing 1/4-28 RH Stud Quick Disconnect
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$14.75 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/4-28 RH |
|---|---|
| Stud thread | 1/4-28 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $14.75 |
| 2+ | $9.28 |
| 3+ | $8.45 |
| 4+ | $7.37 |
| 5+ | $7.12 |
| 10+ | $5.13 |
| 25+ | $4.42 |
| 50+ | $3.32 |
| 100+ | $2.94 |
| 150+ | $2.93 |
| 300+ | $2.66 |
| 350+ | $2.33 |
| 700+ | $1.99 |
Drawing dimensions
| Housing Threads | 1/4-28 RH |
|---|---|
| Stud Threads | 1/4-28 RH |
| A | 0.125 |
| B (Ball Ø) | 0.287 |
| F | 0.469 |
| G | 0.562 |
| J | 0.375 |
| K (neck Ø) | 0.182 |
| L | 0.562 |
| M | 1.250 |
| N | 0.969 |
| P | 0.531 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: zinc plated steel
Feature: spring loaded outer housing can be temporarily slipped back to allow removal of the ball stud.
Design: Per SAE J490 Type S Style 1.
Video: https://www.youtube.com/watch?v=mnn-AjcFuKw
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
