MCPBall Joints · Female
QD375

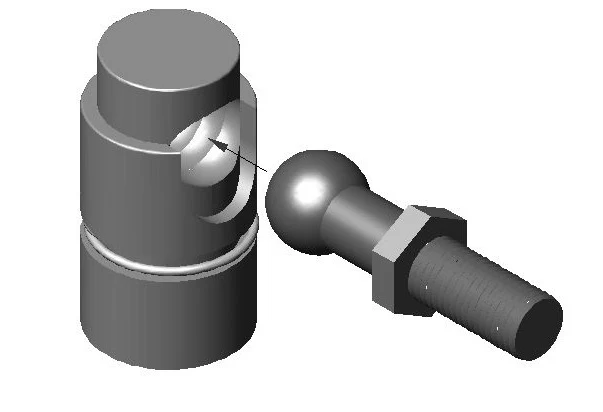

QD375, Ball Joints, Female 3/8-24 RH Housing 3/8-24 RH Stud Quick Disconnect
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 3/8-24 RH |
|---|---|
| Stud thread | 3/8-24 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.27 |
| 2+ | $12.68 |
| 3+ | $11.85 |
| 4+ | $10.05 |
| 5+ | $9.80 |
| 10+ | $7.52 |
| 30+ | $5.54 |
| 50+ | $4.92 |
| 100+ | $4.59 |
| 200+ | $3.88 |
| 300+ | $3.88 |
| 400+ | $3.32 |
| 800+ | $3.31 |
Drawing dimensions
| Housing Threads | 3/8-24 RH |
|---|---|
| Stud Threads | 3/8-24 RH |
| A | 0.187 |
| B (Ball Ø) | 0.491 |
| F | 0.687 |
| G | 0.875 |
| J | 0.500 |
| K (neck Ø) | 0.268 |
| L | 0.750 |
| M | 1.750 |
| N | 1.375 |
| P | 0.812 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: zinc plated steel
Feature: spring loaded outer housing can be temporarily slipped back to allow removal of the ball stud.
Design: Per SAE J490 Type S Style 1.
Video: https://www.youtube.com/watch?v=mnn-AjcFuKw
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
