MCPBall Joints · Female
Qi250

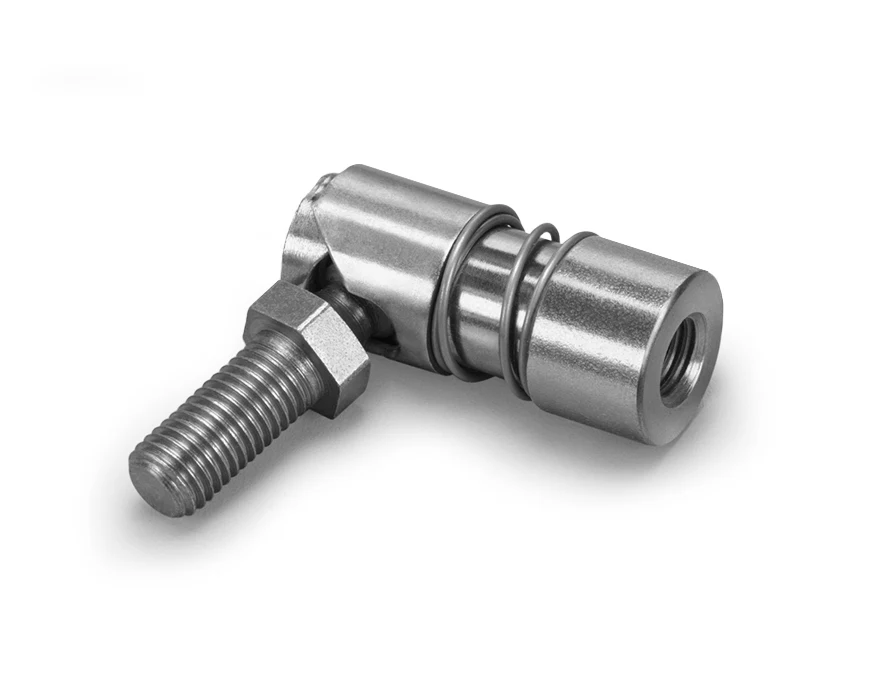

Qi250, Ball Joints, Female 1/4-28 RH Housing 1/4-28 RH Stud Quick Disconnect
3D CAD preview

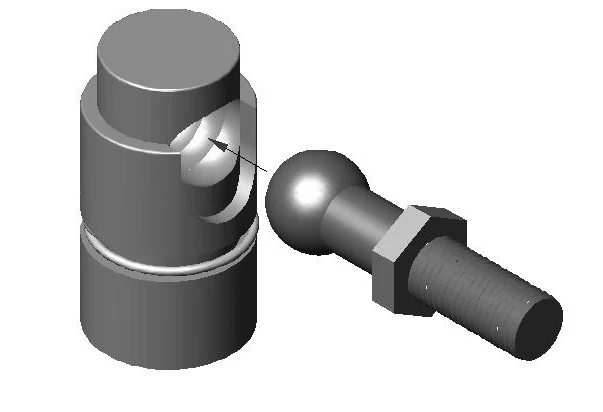

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$15.03 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/4-28 RH |
|---|---|
| Stud thread | 1/4-28 RH |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $15.03 |
| 2+ | $9.47 |
| 3+ | $7.96 |
| 4+ | $7.54 |
| 5+ | $7.29 |
| 10+ | $5.26 |
| 25+ | $4.54 |
| 50+ | $3.42 |
| 75+ | $3.05 |
| 100+ | $3.03 |
| 250+ | $2.74 |
| 300+ | $2.40 |
| 600+ | $2.05 |
| 1,200+ | $2.05 |

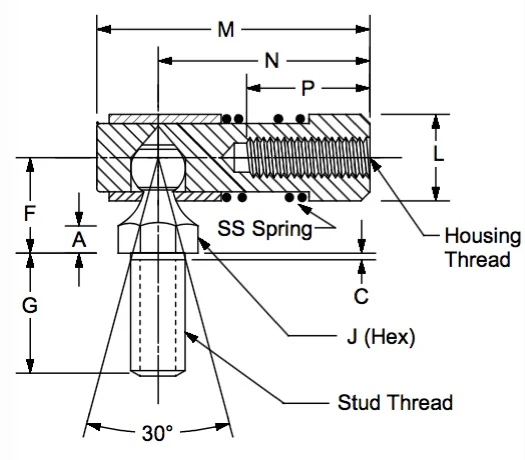

Drawing dimensions
| Housing Thread | 1/4-28 RH |
|---|---|
| Stud Thread | 1/4-28 RH |
| Finish | Zinc Yellow |
| A | 0.125 |
| F | 0.4690 |
| G | 0.5620 |
| J | 0.3750 |
| L | 0.5620 |
| M | 1.250 |
| N | 0.9690 |
| P | 0.5310 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel. Design per SAE J490 Type S Style 2.
Application: Quick Disconnect Ball Joints are used in applications where the housing needs to be easily disconnected from the ball stud. This is accomplished by pulling back the spring-loaded outer housing.
Plating: parts are plated zinc with a yellow dichromate finish.
Specials: Special sizes and configurations are available in volume.
Video: https://www.youtube.com/watch?v=mnn-AjcFuKw
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More ball joints
Compare specifications and drawings to select the right part.
