MCPBall Joints · Female
QIL500

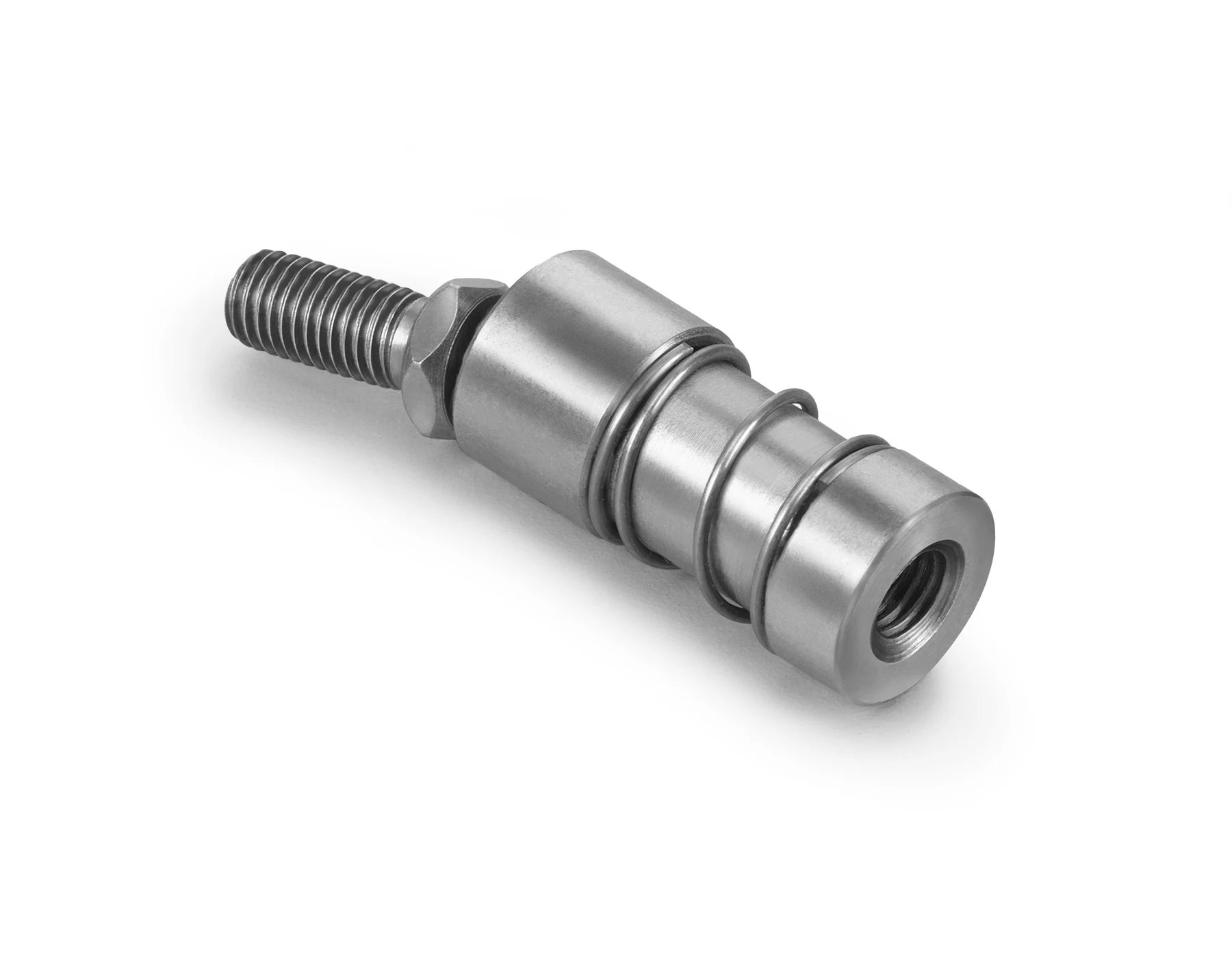

QIL500, Ball Joints, Female 1/2-20 RH Housing 1/2-20 RH Stud Quick Disconnect, Inline
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$37.95 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/2-20 RH |
|---|---|
| Stud thread | 1/2-20 RH |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $37.95 |
| 2+ | $27.44 |
| 3+ | $24.38 |
| 4+ | $23.97 |
| 5+ | $23.72 |
| 10+ | $17.88 |
| 25+ | $15.80 |
| 50+ | $14.37 |
| 100+ | $12.54 |

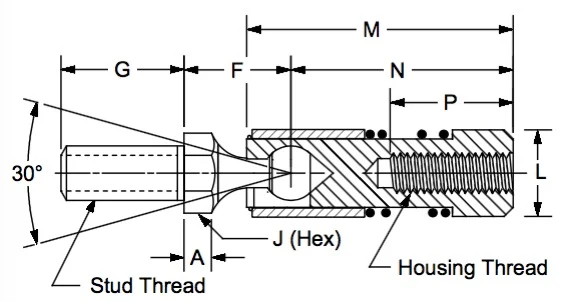

Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| Finish | Zinc Yellow |
| A | 0.250 |
| F | 0.8750 |
| G | 1.1250 |
| J | 0.6250 |
| L | 1.0000 |
| M | 2.530 |
| N | 2.0300 |
| P | 1.000 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: the QIL series ball joints provide a 180° misalignment joint and the quick disconnect feature.
Construction: the QIL series is made from zinc plated low carbon steel.
Metric: available in large volume.
Video: https://www.youtube.com/watch?v=mnn-AjcFuKw
