MCPBoots, Rubber · 1/2
RB-8
RB-8, Boots, Rubber, 1/2 for Male Rod Ends Fits High Misalignment Inserts

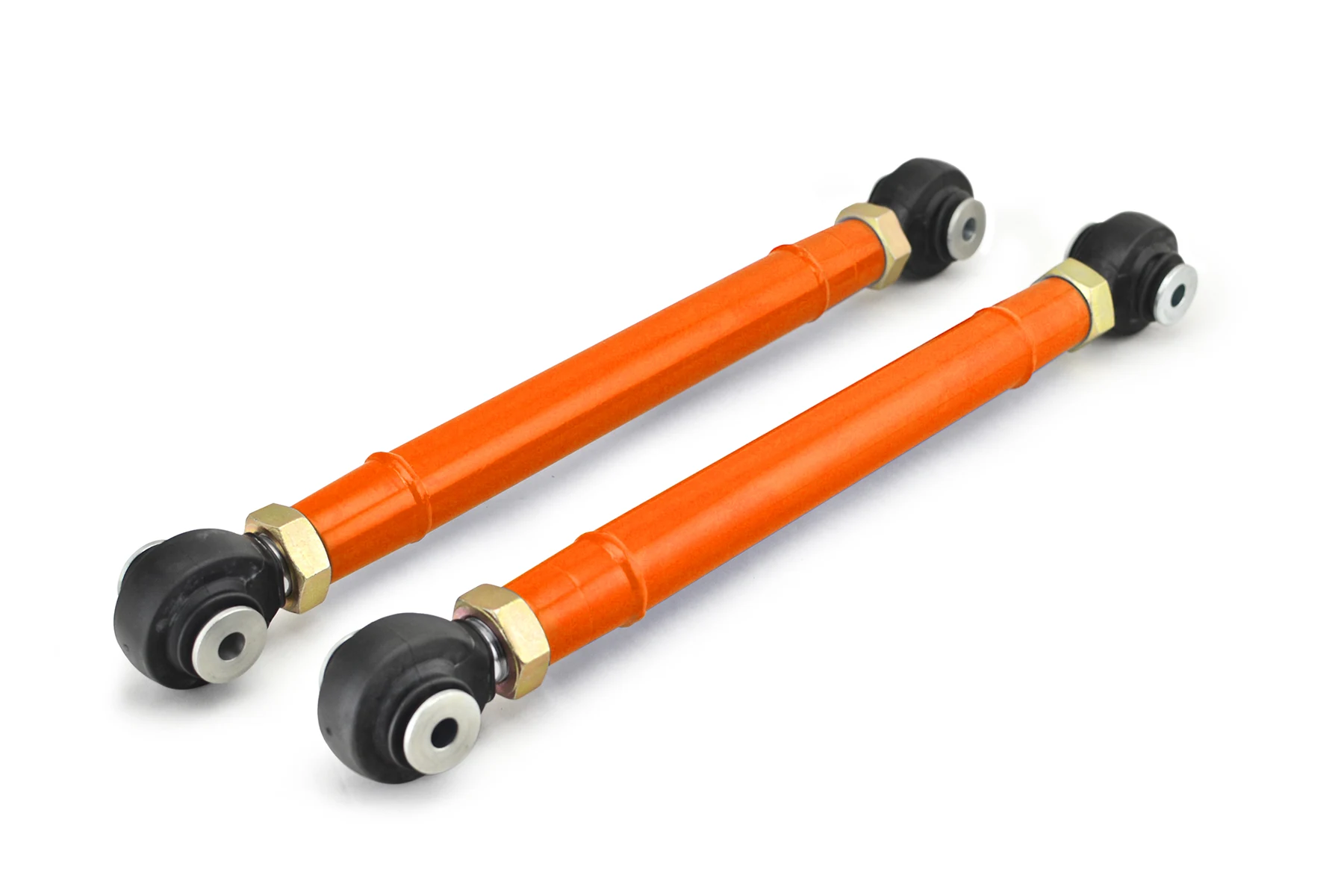

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.37 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Fits rod end | MXM-8 with HMBZC-8-6 inserts |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.37 |
| 2+ | $8.22 |
| 3+ | $7.39 |
| 4+ | $6.41 |
| 5+ | $6.16 |
| 10+ | $4.97 |
| 20+ | $3.81 |
| 40+ | $2.85 |
| 80+ | $2.50 |
| 160+ | $2.47 |
| 400+ | $1.96 |
| 560+ | $1.96 |
| 720+ | $1.68 |

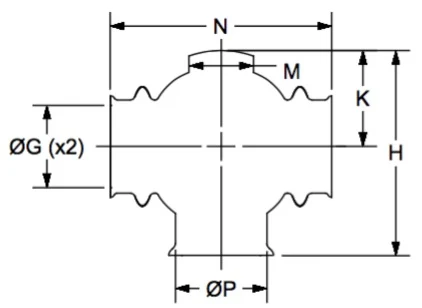

Drawing dimensions
| Fits Rod End | MXM-8 with HMBZC-8-6 inserts |
|---|---|
| G | 0.500 |
| H | 1.325 |
| K | 0.656 |
| M | 0.453 |
| N | 1.621 |
| P | 0.470 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Neoprene Rubber resistant to water, petroleum-based oils, greases and chemical compounds.

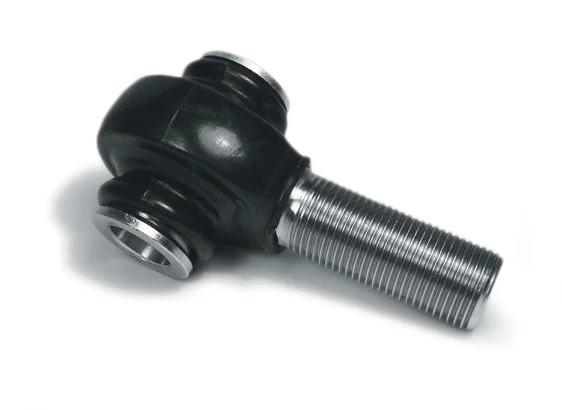

Application: Design intended for use on male spherical rod ends already fitted with a flared ball, trunion ball, or high misalignment inserts.
