MCPBoots, Rubber · 3/16
RFS-3
RFS-3, Boots, Rubber, 3/16 Female Rod Ends Wrap Around

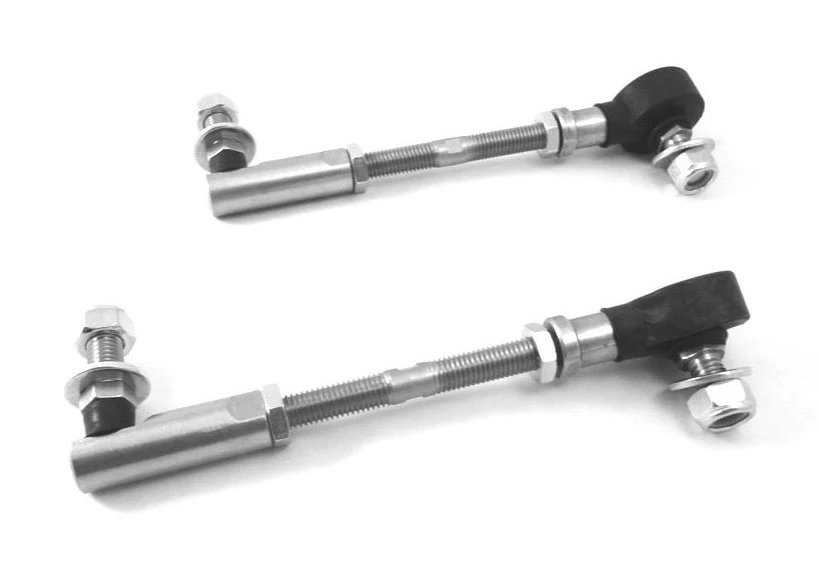

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.44 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 10-32 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.44 |
| 2+ | $2.94 |
| 3+ | $2.11 |
| 4+ | $1.69 |
| 5+ | $1.44 |
| 10+ | $0.94 |
| 25+ | $0.63 |
| 50+ | $0.40 |
| 100+ | $0.32 |
| 200+ | $0.26 |
| 1,000+ | $0.15 |
| 2,000+ | $0.13 |

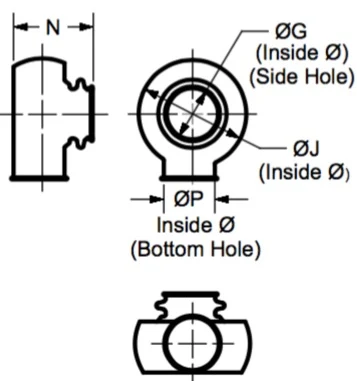

Drawing dimensions
| Nominal Size | 10-32 |
|---|---|
| G | 0.200 |
| J | 0.875 |
| N | 0.518 |
| P | 0.282 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Neoprene Rubber resistant to water, petroleum-based oils, greases and chemical compounds.
Application: Design intended for use on female studded rod ends.
Comment: These boots are reasonably priced, but we feel they are somewhat difficult to assemble. We encourage serious customers to request a sample prior to ordering to make sure you are satisfied with the means of assembly.
