MCPBoots, Rubber · 5/16
RFS-5
RFS-5, Boots, Rubber, 5/16 Female Rod Ends Wrap Around

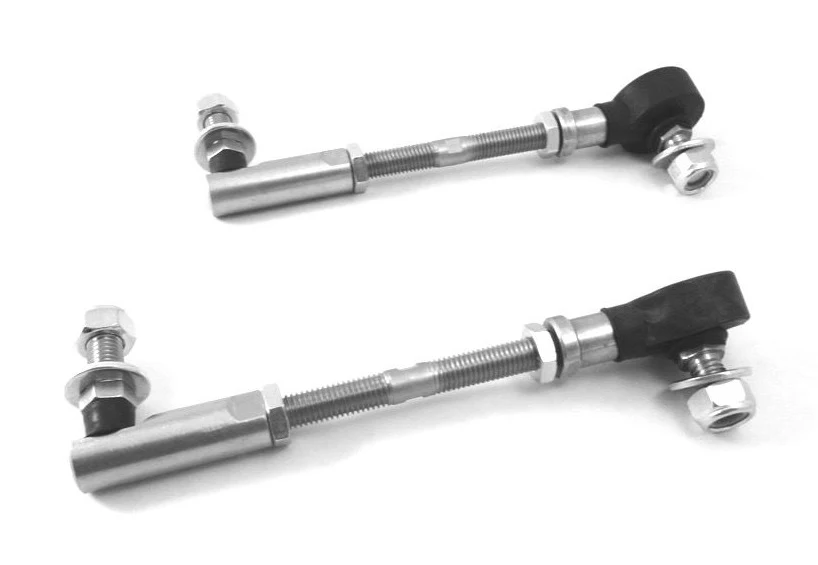

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.40 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 5/16 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.40 |
| 2+ | $4.90 |
| 3+ | $4.07 |
| 4+ | $3.61 |
| 16+ | $1.79 |
| 40+ | $1.25 |
| 80+ | $1.08 |
| 160+ | $0.81 |
| 240+ | $0.80 |
| 400+ | $0.71 |
| 800+ | $0.67 |

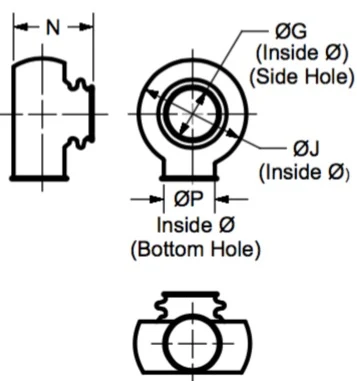

Drawing dimensions
| Nominal Size | 5/16 |
|---|---|
| G | 0.325 |
| J | 1.000 |
| N | 0.693 |
| P | 0.407 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Neoprene Rubber resistant to water, petroleum-based oils, greases and chemical compounds.
Application: Design intended for use on female studded rod ends.
Comment: These boots are reasonably priced, but we feel they are somewhat difficult to assemble. We encourage serious customers to request a sample prior to ordering to make sure you are satisfied with the means of assembly.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
