MCPMFG

Boots, Rubber · for 5/16 diameter Rods

RLB-375R

RLB-375R, Boots, Rubber, for 5/16 diameter Rods 2.375 inches long 2.25 inches diameter

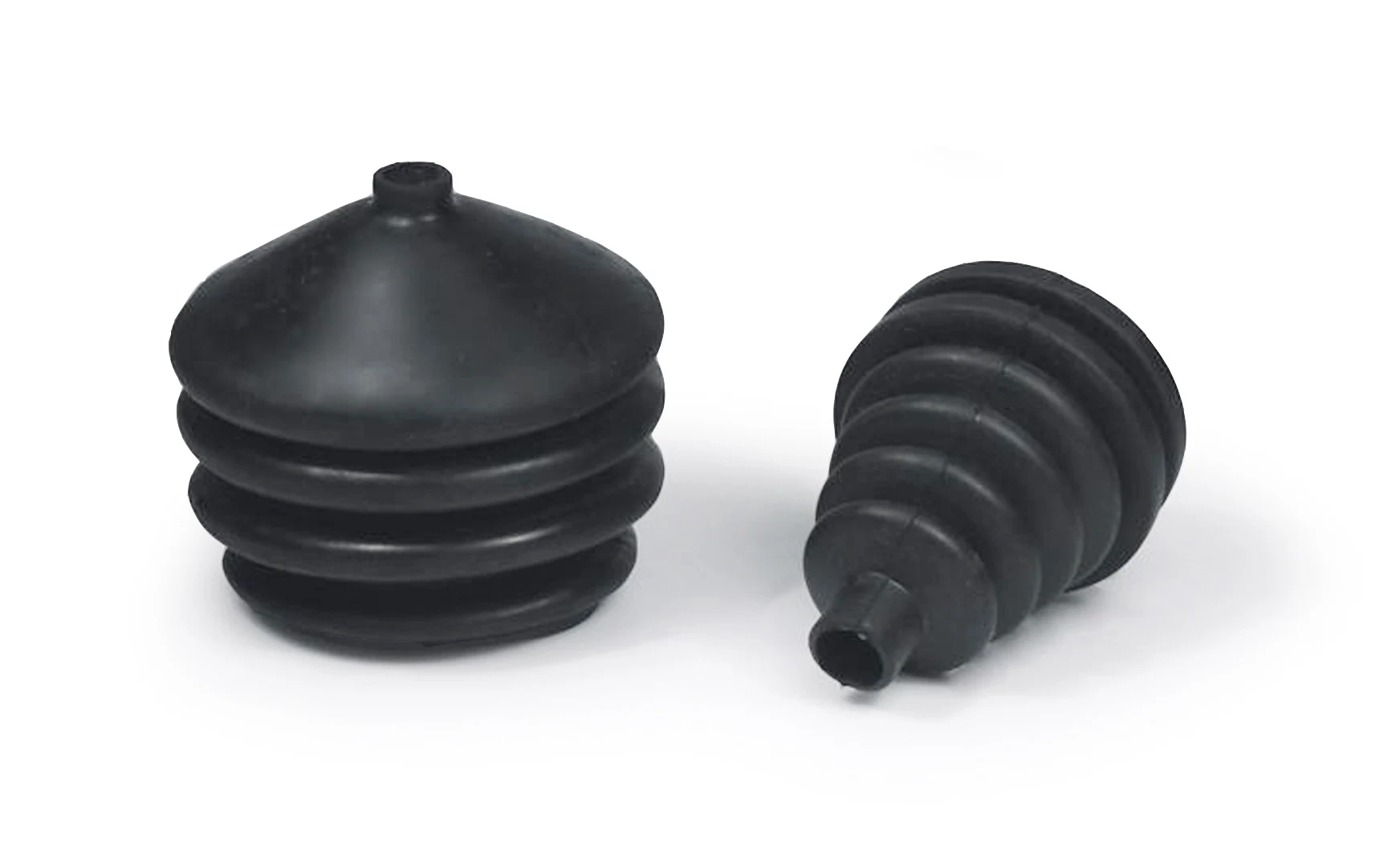

Product image
RLB-375R product image

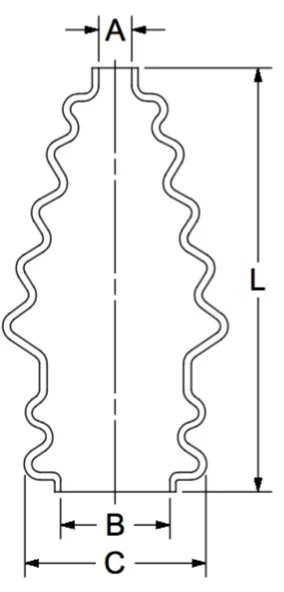

Dimension drawing 1
RLB-375R dimension drawing 1
Additional photos

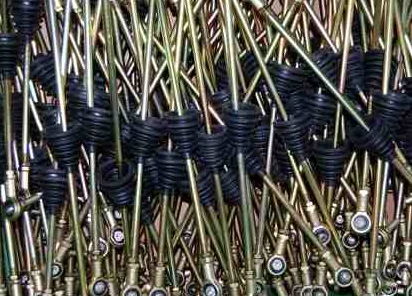

Additional product photo
RLB-375R additional product photo

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.52 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Length2.375 in

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.52
2+$6.02
3+$5.12
4+$4.71
8+$3.03
16+$2.49
24+$2.08
32+$1.80
40+$1.77
80+$1.56
120+$1.19

Drawing dimensions

A5/16
B1.87
C2.25
L2.375
Max Width2.58
# of Bellows3
FeatureBase has an internal retaining wire

Lettered dimensions refer to the drawing for this part.

Product information

Material: Neoprene (Rubber)

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
