MCPBoots, Rubber · 3/8
RS375
RS375, Boots, Rubber, 3/8 Male and Female Rod Ends Face Seal Type
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.17 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 3/8 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.17 |
| 2+ | $6.67 |
| 3+ | $5.77 |
| 4+ | $4.10 |
| 5+ | $3.85 |
| 10+ | $3.07 |
| 25+ | $2.15 |
| 50+ | $1.87 |
| 100+ | $1.41 |
| 250+ | $1.24 |
| 500+ | $1.16 |
| 750+ | $0.98 |
| 1,500+ | $0.83 |
| 3,000+ | $0.83 |
| 4,500+ | $0.82 |

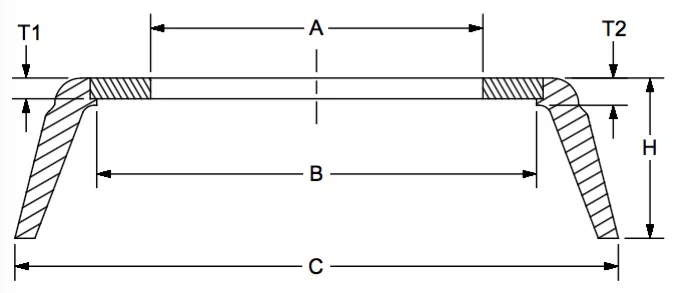

Drawing dimensions
| Nominal Size | 3/8 |
|---|---|
| A | 0.385 |
| B | 0.530 |
| C | 0.800 |
| H | 0.220 |
| T1 | 0.047 |
| T2 | 0.057 |
Lettered dimensions refer to the drawing for this part.
Product information

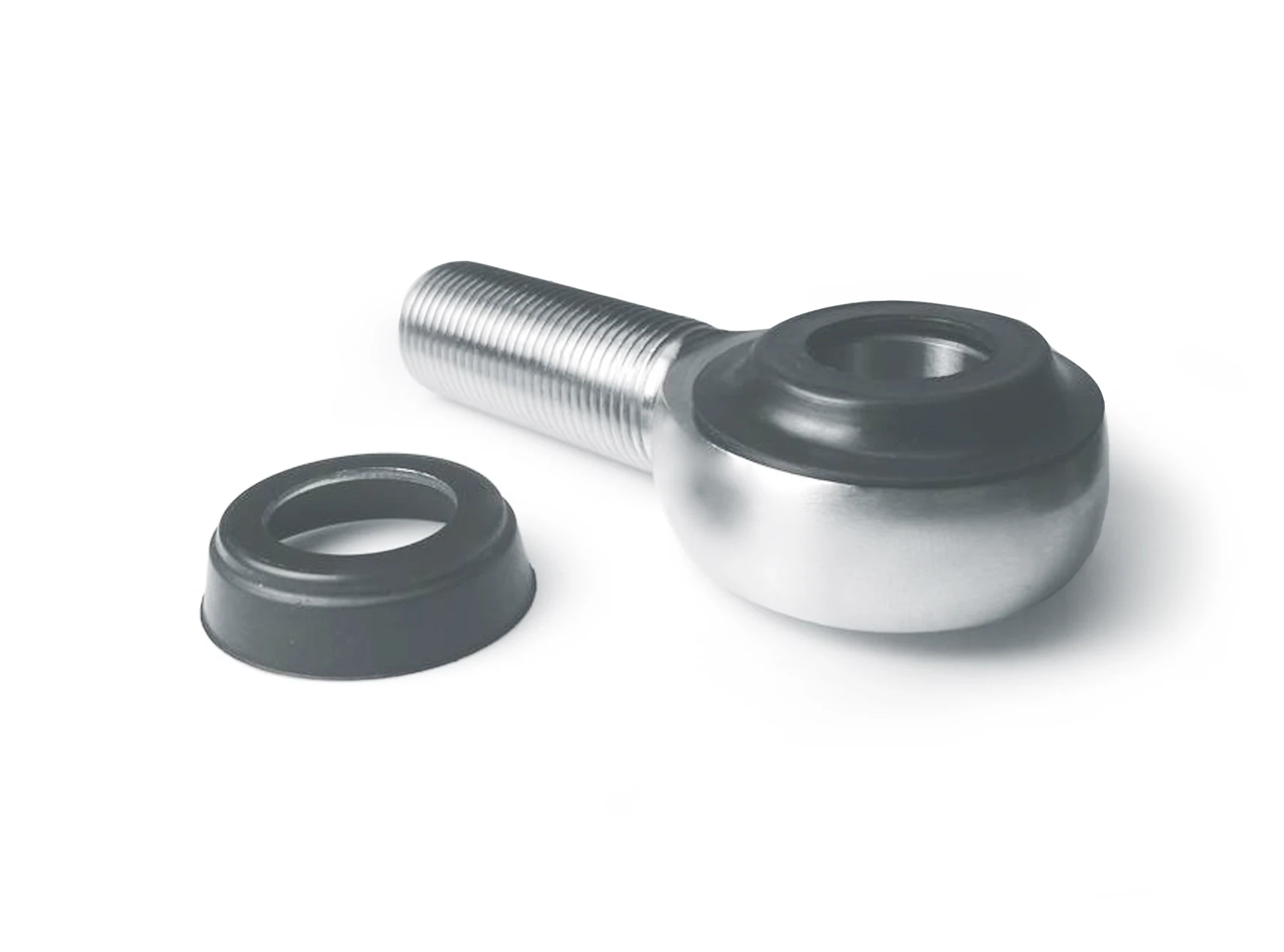

Material: neoprene rubber bonded to a steel washer.
Application: our rod end seals are used to minimize contaminants in the bearing housing.
