MCPSwivels · 10-32 RH
S188F424-081 ZY

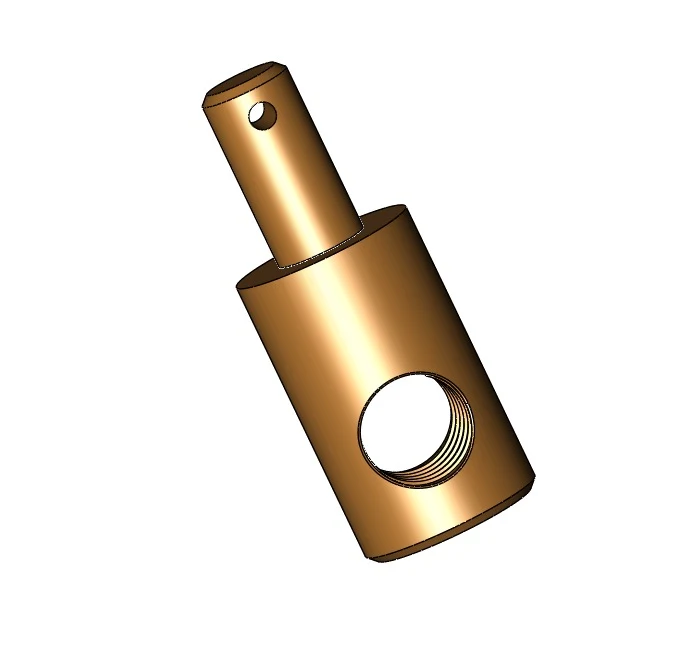

S188F424-081 ZY, Swivels, 10-32 RH 0.185 Stem Diameter 0.718 Overall Length
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 RH |
|---|---|
| Finish / plating | Zinc Yellow |
| Construction | B |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.21 |
| 2+ | $10.29 |
| 3+ | $8.70 |
| 4+ | $8.28 |
| 5+ | $8.03 |
| 10+ | $5.82 |
| 25+ | $5.05 |
| 50+ | $3.81 |
| 100+ | $3.38 |
| 200+ | $3.07 |
| 300+ | $2.68 |

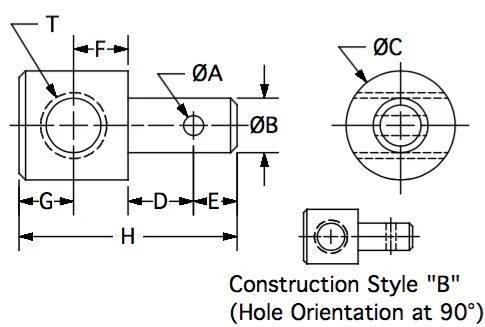

Drawing dimensions
| Threads | 10-32 RH |
|---|---|
| Plating | Zinc Yellow |
| Construction | B |
| A | 0.081 |
| B | 0.185 |
| C | 0.438 |
| D | 0.236 |
| E | 0.107 |
| J | 0.1875 |
| G | 0.1875 |
| H | 0.718 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Swivels are used as mounting points on the ends of threaded rods, tubes and push-pull cables. A swivel replaces the traditional yoke and clevis pin construction. Common applications include light duty shifter control linkages, lawn tractor mower deck linkages, and push-pull cable eyelet swivel pivots. Sometimes referred to as 'Brake Link Anchors' on walk-behind commercial lawn mowers.
Construction: low carbon steel, plated and dichromate treated for corrosion resistance
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
