MCPSwivels · M10 x 1.50 RH
S394F-1
S394F-1, Swivels, M10 x 1.50 RH 10mm Stem Diameter 32.5mm Overall Length
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$11.01 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M10 x 1.5 RH |
|---|---|
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $11.01 |
| 2+ | $8.41 |
| 3+ | $5.77 |
| 4+ | $5.36 |
| 5+ | $4.71 |
| 10+ | $3.71 |
| 25+ | $2.76 |
| 50+ | $2.06 |
| 100+ | $1.81 |
| 250+ | $1.68 |

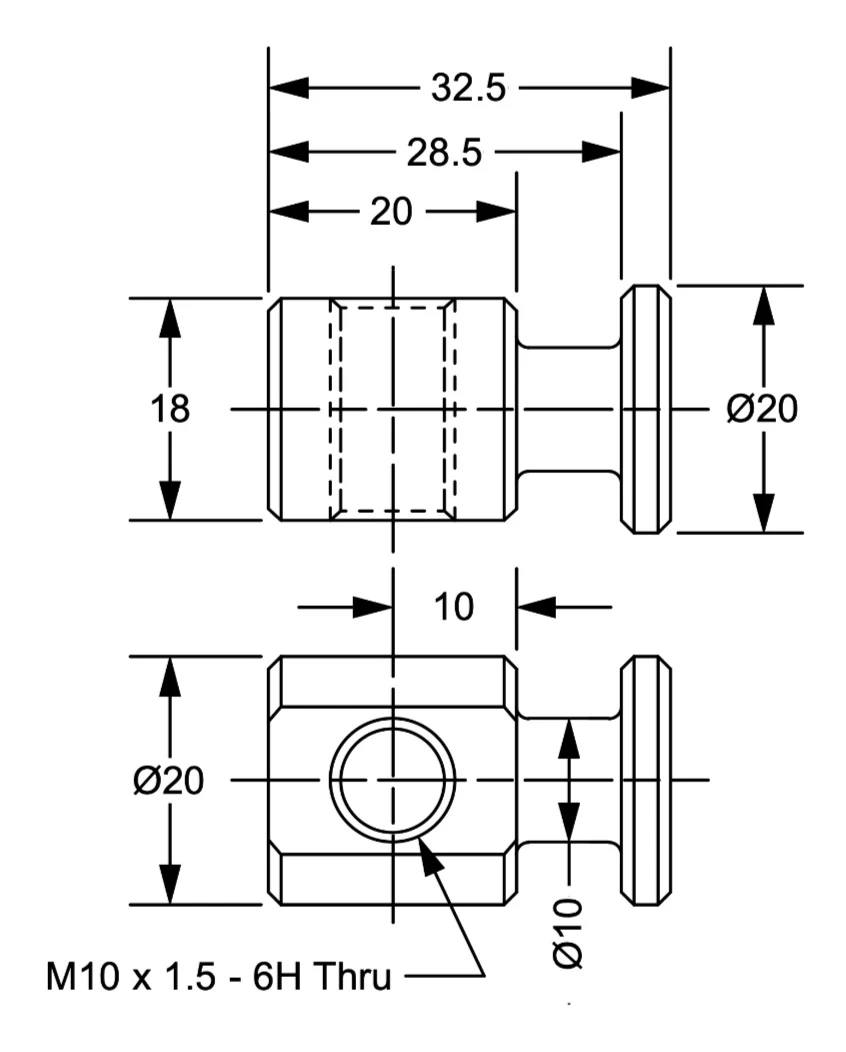

Drawing dimensions
| Threads | M10 x 1.50 RH |
|---|---|
| Plating | Zinc Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Swivels are used as mounting points on the ends of threaded rods, tubes and push-pull cables. A swivel replaces the traditional yoke and clevis pin construction. Common applications include light duty shifter control linkages, lawn tractor mower deck linkages, and push-pull cable eyelet swivel pivots. Sometimes referred to as 'Brake Link Anchors' on walk-behind commercial lawn mowers.
Construction: low carbon steel, plated and dichromate treated for corrosion resistance
