MCPSwivels · 1/2-13 RH
S500C6125 ZY
S500C6125 ZY, Swivels, 1/2-13 RH 0.613 Stem Diameter 2.250 Overall Length

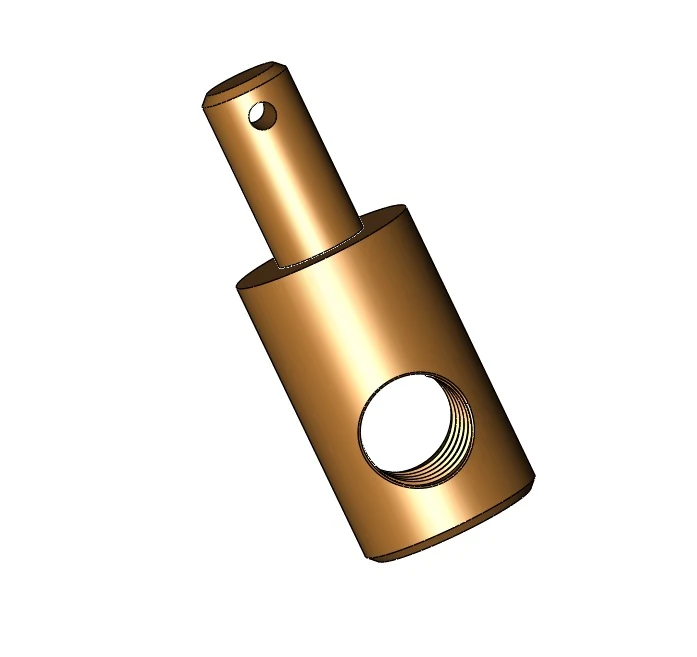

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.83 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-13 RH |
|---|---|
| Finish / plating | Zinc Yellow |
| Construction | A |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.83 |
| 2+ | $6.33 |
| 3+ | $5.43 |
| 4+ | $3.87 |
| 5+ | $3.62 |
| 10+ | $2.87 |
| 25+ | $2.00 |

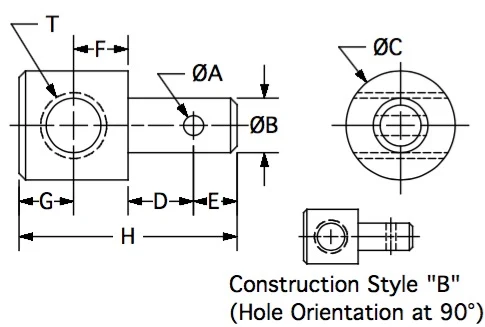

Drawing dimensions
| Threads | 1/2-13 RH |
|---|---|
| Plating | Zinc Yellow |
| Construction | A |
| A | 0.219 |
| B | 0.613 |
| C | 1.000 |
| D | 0.635 |
| E | 0.235 |
| J | 0.8800 |
| G | 0.5000 |
| H | 2.250 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Swivels are used as mounting points on the ends of threaded rods, tubes and push-pull cables. A swivel replaces the traditional yoke and clevis pin construction. Common applications include light duty shifter control linkages, lawn tractor mower deck linkages, and push-pull cable eyelet swivel pivots. Sometimes referred to as 'Brake Link Anchors' on walk-behind commercial lawn mowers.
Construction: low carbon steel, plated and dichromate treated for corrosion resistance
