Rod End Studs · Install Your Own

SBAS-12

SBAS-12, Rod End Studs, Install Your Own M12 x 1.75 RH Scotty Bolt Style

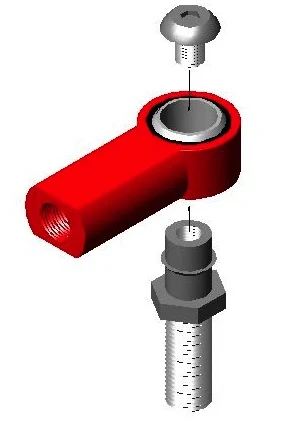

Product image
SBAS-12 product image

$12.41 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

ThreadM12 x 1.75 RH

Values without units follow the drawing.

Drawing & dimensions

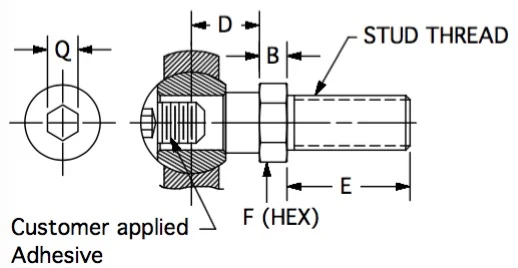

SBAS-12 dimension drawing
ThreadsM12 x 1.75 RH
B6.35
D14.09
E28.57
Q6.00
FitsFits ASFM-12, ASMM-12, MPF-12mm and MPM-12mm rod ends
Item envelope L × W × H (in)1.93 × 0.625 × 0.625
Unit weight (lb)0.164

Lettered dimensions refer to the drawing for this part.

Additional photos

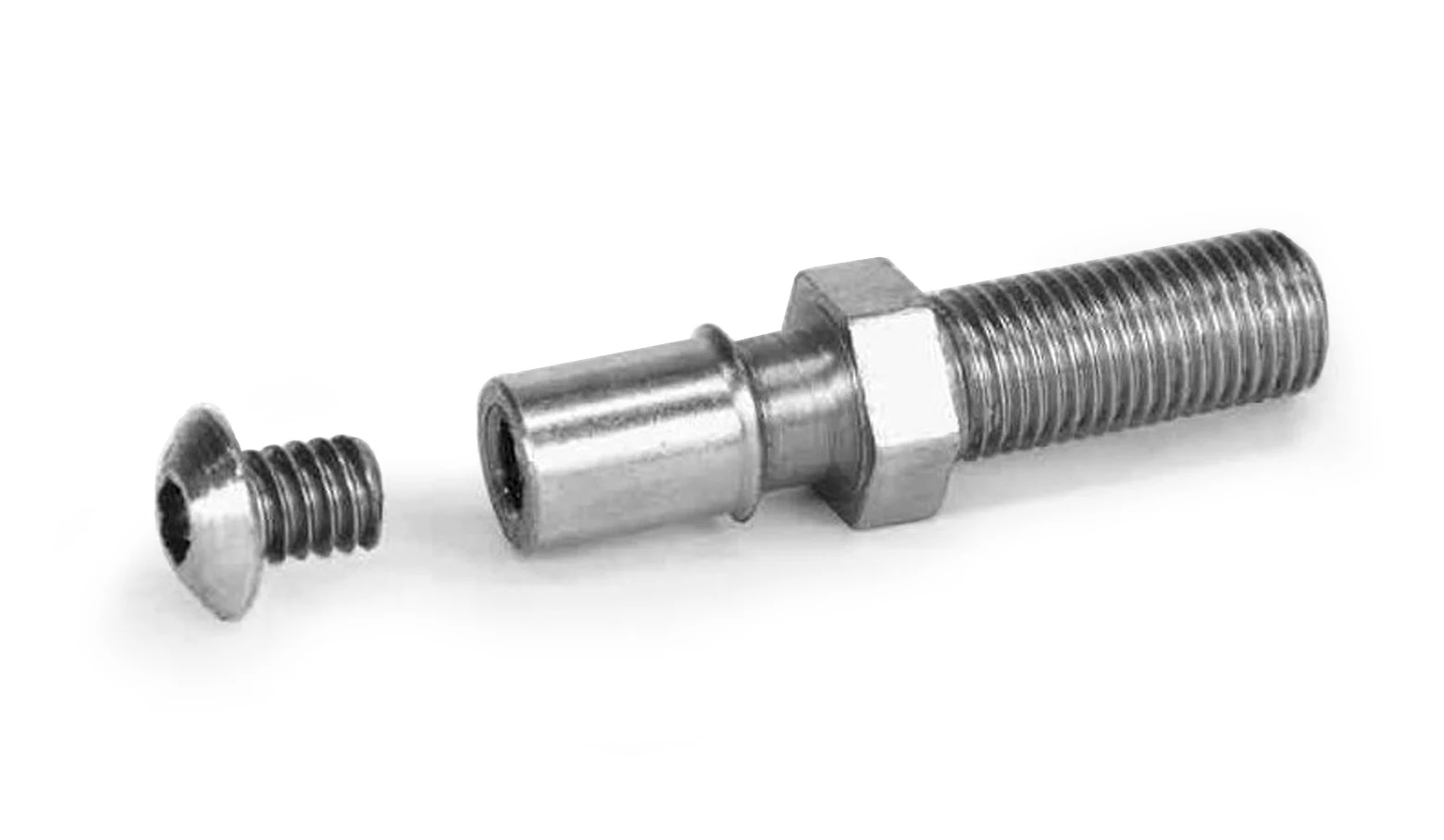

Additional product photo
