MCPRod End Studs · Install Your Own
SBAS-8
SBAS-8, Rod End Studs, Install Your Own M8 x 1.25 RH Scotty Bolt Style

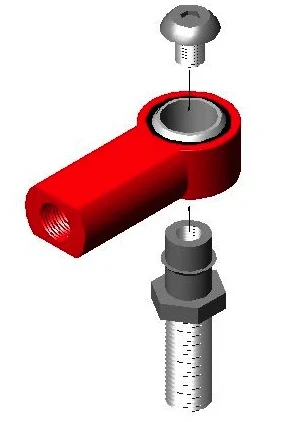

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.92 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M8 x 1.25 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.92 |
| 2+ | $7.33 |
| 3+ | $6.50 |
| 4+ | $4.61 |
| 5+ | $4.36 |
| 10+ | $3.53 |
| 25+ | $2.49 |
| 50+ | $2.19 |
| 100+ | $1.65 |

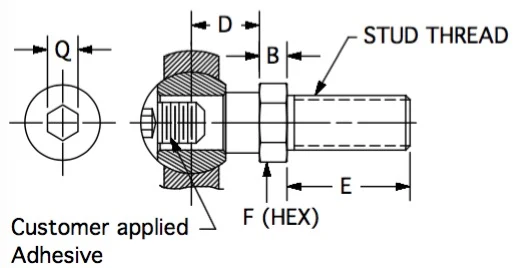

Drawing dimensions
| Threads | M8 x 1.25 RH |
|---|---|
| B | 3.18 |
| D | 9.31 |
| E | 17.45 |
| Q | 3.00 |
| Fits | Fits ASFM-8, ASMM-8, MPF-8mm and MPM-8mm rod ends |
Lettered dimensions refer to the drawing for this part.
