MCPBall Joints · Female
SBJ-3
SBJ-3, Ball Joints, Female 10-32 RH Housing 10-32 RH Stud Tensioned Ball Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.23 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 10-32 RH |
|---|---|
| Stud thread | 10-32 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.23 |
| 2+ | $14.44 |
| 3+ | $13.61 |
| 4+ | $11.58 |
| 5+ | $10.04 |
| 10+ | $8.73 |
| 25+ | $6.49 |
| 50+ | $5.75 |
| 100+ | $5.38 |
| 200+ | $4.55 |
| 300+ | $4.54 |
| 500+ | $3.88 |

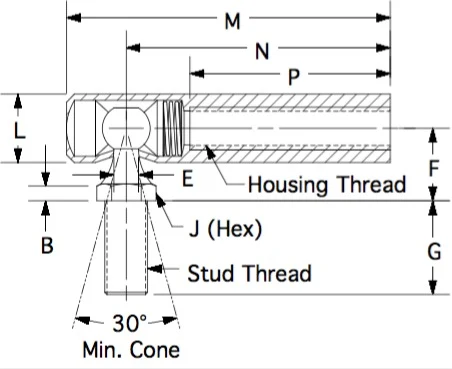

Drawing dimensions
| Threads | 10-32 RH |
|---|---|
| B | 0.125 |
| E | 0.135 |
| F | 0.406 |
| G | 0.437 |
| J | 0.312 |
| L | 0.375 |
| M | 1.250 |
| N | 0.875 |
| P | 0.437 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: SBJ-series ball joints feature a spring-loaded ball stud. This special feature reduces backlash on the ball stud.
Constructions: Low carbon steel, plated with a yellow dichromate finish. Per SAE J490 Type A.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More ball joints
Compare specifications and drawings to select the right part.
