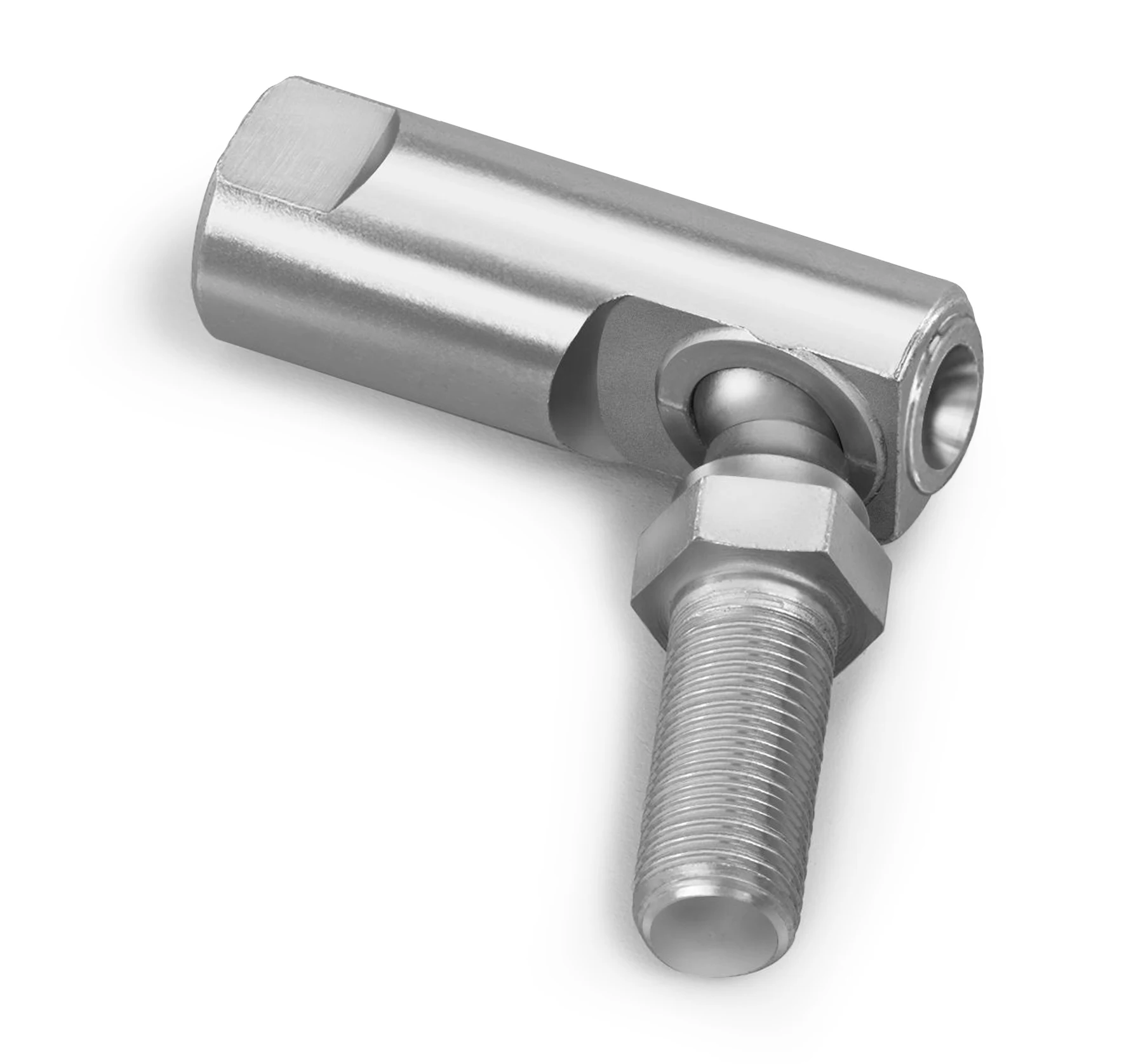

SBJ-4, Ball Joints, Female 1/4-28 RH Housing 1/4-28 RH Stud Tensioned Ball Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.07 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/4-28 RH |
|---|---|
| Stud thread | 1/4-28 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.07 |
| 2+ | $12.49 |
| 3+ | $11.66 |
| 4+ | $9.89 |
| 5+ | $9.64 |
| 10+ | $7.39 |
| 25+ | $5.47 |
| 50+ | $4.83 |
| 100+ | $4.51 |
| 150+ | $4.36 |
| 200+ | $3.81 |
| 300+ | $3.80 |

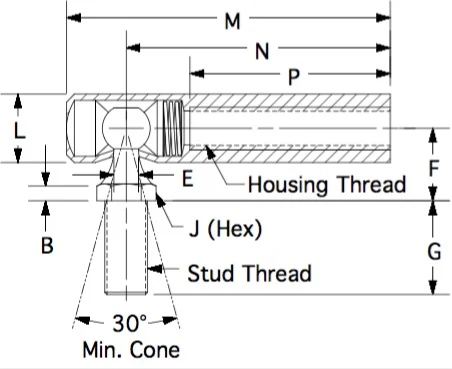

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| B | 0.125 |
| E | 0.151 |
| F | 0.469 |
| G | 0.562 |
| J | 0.375 |
| L | 0.437 |
| M | 1.375 |
| N | 0.969 |
| P | 0.500 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: SBJ-series ball joints feature a spring-loaded ball stud. This special feature reduces backlash on the ball stud.
Constructions: Low carbon steel, plated with a yellow dichromate finish. Per SAE J490 Type A.
