MCPBalls, Rod End Bearing · Bulk
SBT-5

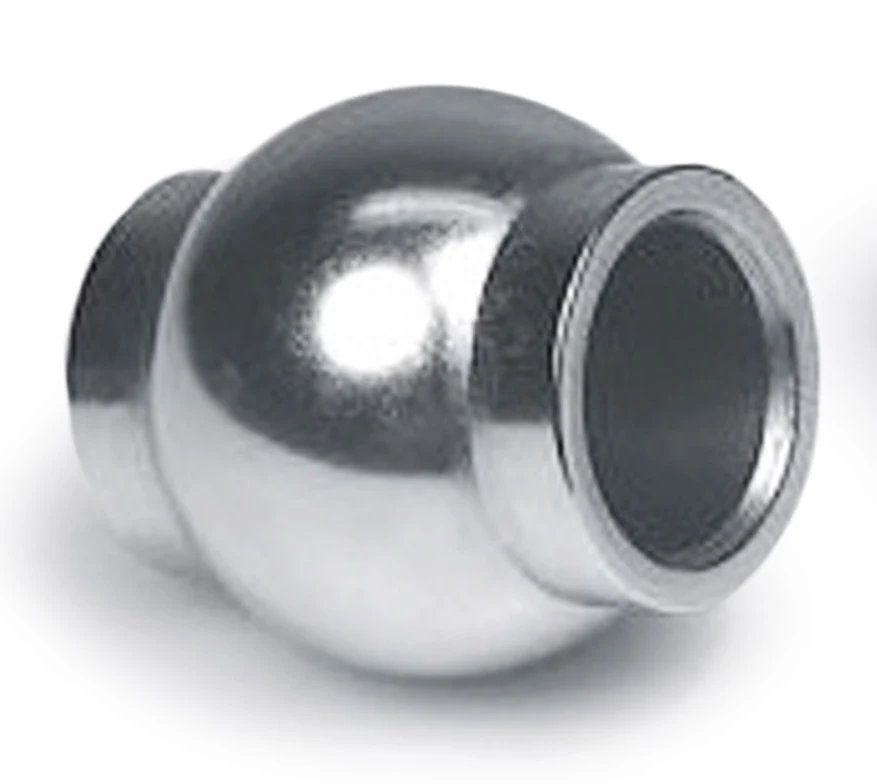

SBT-5, Balls, Rod End Bearing, Bulk 5/16 trunion
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.68 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 5/16 |
|---|---|
| Configuration | trunion |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.68 |
| 2+ | $5.18 |
| 3+ | $4.35 |
| 4+ | $3.88 |
| 5+ | $3.63 |
| 10+ | $2.33 |
| 25+ | $1.63 |
| 50+ | $1.35 |
| 75+ | $1.21 |
| 100+ | $1.19 |
| 250+ | $0.80 |
| 500+ | $0.79 |
| 1,000+ | $0.72 |
Drawing dimensions
| Nominal | 5/16 |
|---|---|
| Configuration | trunion |
| A | .3135 |
| B | .616 |
| D | .433 |
| E | .688 |
| G | .438 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel, heat treated.
Finish: zinc plated and burnished.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
