MCPClevis Spring Pins, Clips and Cotters · Clips
SC-375
SC-375, Clevis Spring Pins, Clips and Cotters, Clips for 3/8 Clevis Pins Spring Steel Standard Style
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.47 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 3/8 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.47 |
| 2+ | $2.97 |
| 3+ | $2.14 |
| 4+ | $1.72 |
| 5+ | $1.47 |
| 10+ | $0.97 |
| 25+ | $0.66 |
| 50+ | $0.42 |
| 100+ | $0.34 |
| 300+ | $0.24 |
| 500+ | $0.21 |
| 1,000+ | $0.16 |
| 1,500+ | $0.14 |

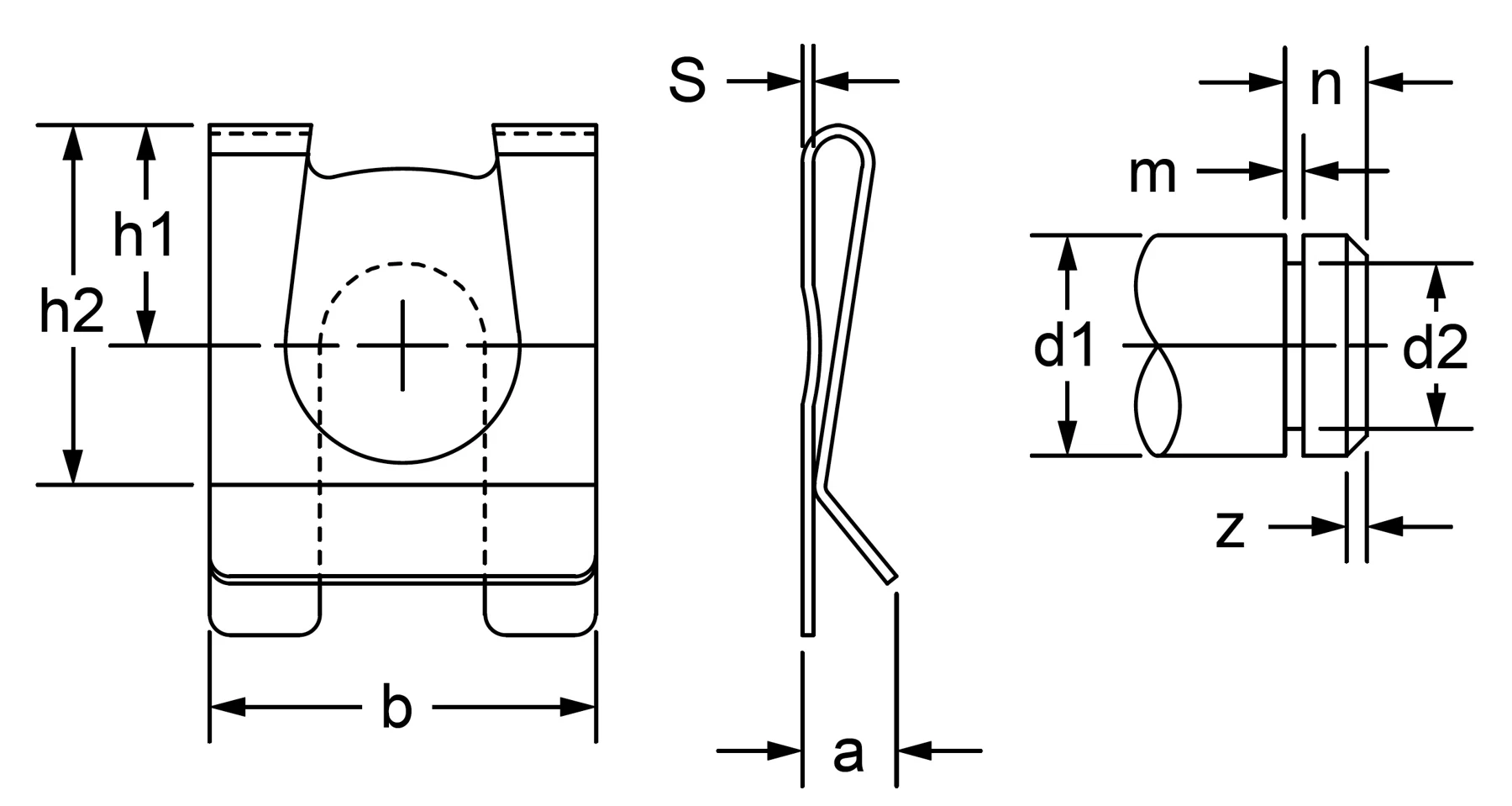

Drawing dimensions
| Nominal Size | 3/8 |
|---|---|
| b | 0.710 |
| h2 | 0.844 |
| h1 | 0.385 |
| a | 0.211 |
| s | 0.02 |
| d1 | 0.375 |
| d2 | 0.301 |
| m | 0.037 |
| n | 0.167 |
| z | .037 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Use safety clips and bayonet clips on grooved rods or grooved clevis pins instead of the traditional cotter pin.
Construction: Spring steel, plated zinc clear.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More clevis spring pins, clips and cotters
Compare specifications and drawings to select the right part.
