MCPBall Joints · Female
SQIL375
SQIL375, Ball Joints, Female 3/8-24 RH Housing 3/8-24 RH Stud Quick Disconnect, Inline Stainless Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$36.09 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 3/8-24 RH |
|---|---|
| Stud thread | 3/8-24 RH |
| Material | Stainless steel |
| Finish / plating | Stainless |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $36.09 |
| 2+ | $26.03 |
| 3+ | $23.10 |
| 4+ | $22.68 |
| 5+ | $22.43 |
| 10+ | $16.89 |
| 25+ | $14.91 |
| 50+ | $13.55 |

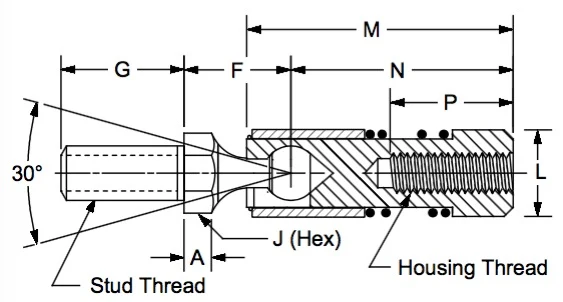

Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| Finish | Stainless |
| A | 0.187 |
| F | 0.6870 |
| G | 0.8750 |
| J | 0.5000 |
| L | 0.7500 |
| M | 1.750 |
| N | 1.3750 |
| P | 0.8120 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: 300 series stainless steel
Video: https://www.youtube.com/watch?v=mnn-AjcFuKw
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
