MCPFasteners · Retaining Ring (Snap Ring)
SR-05
SR-05, Fasteners, Retaining Ring (Snap Ring) 0.831 diameter
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.45 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.45 |
| 2+ | $2.95 |
| 3+ | $2.12 |
| 4+ | $1.70 |
| 5+ | $1.45 |
| 10+ | $0.95 |
| 25+ | $0.64 |
| 50+ | $0.41 |
| 100+ | $0.33 |
| 250+ | $0.23 |

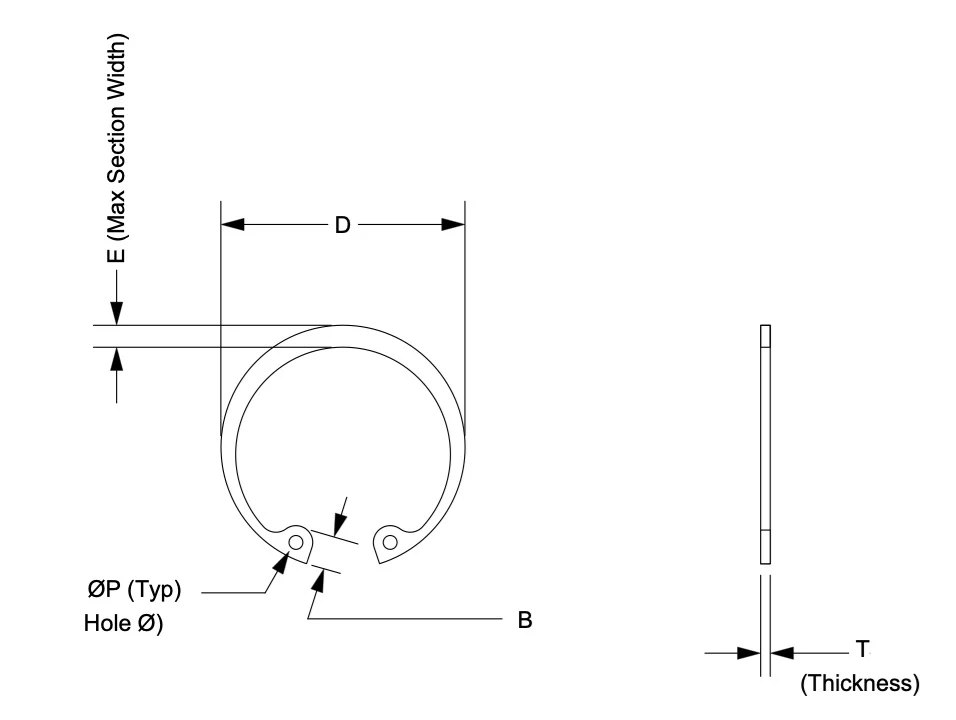

Drawing dimensions
| B | 0.142 |
|---|---|
| D | 0.831 |
| E | 0.07 |
| P | 0.062 |
| T | 0.035 |
Lettered dimensions refer to the drawing for this part.
Product information
The SR-05 Retaining Ring (Snap Ring) is designed to fit with our UBC-05 Uniball Cup as part of an assembly to hold spherical plain bearings.
Material: Spring Steel
Finish: Black Zinc Plating
Dimensions Shown are at uncompressed position.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
