SS-06, Rod End Studs, Install Your Own 3/8-24 RH Straight Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$22.58 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | Grade 8 |
|---|---|
| Finish / plating | Bright Decorative Chrome Plating |
| Connection 1 thread | 3/8-24 RH |
| Connection 2 thread | 3/8-24 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $22.58 |
| 2+ | $18.36 |
| 3+ | $15.39 |
| 4+ | $13.25 |
| 5+ | $13.00 |
| 10+ | $11.43 |
| 25+ | $7.70 |
| 50+ | $7.60 |
| 100+ | $6.91 |
| 250+ | $5.16 |

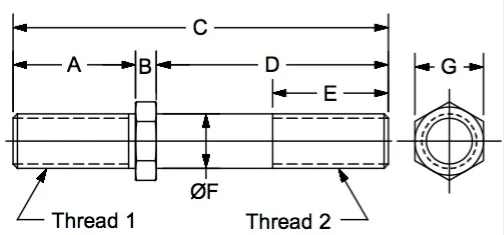

Drawing dimensions
| Thread 1 | 3/8-24 RH |
|---|---|
| Thread 2 | 3/8-24 RH |
| A | 0.875 |
| B | 0.188 |
| C | 3.500 |
| D | 2.437 |
| E | 0.938 |
| G | 0.500 |
| Finish | Bright Decorative Chrome Plating |
| Material | Grade 8 |
Lettered dimensions refer to the drawing for this part.
Product information

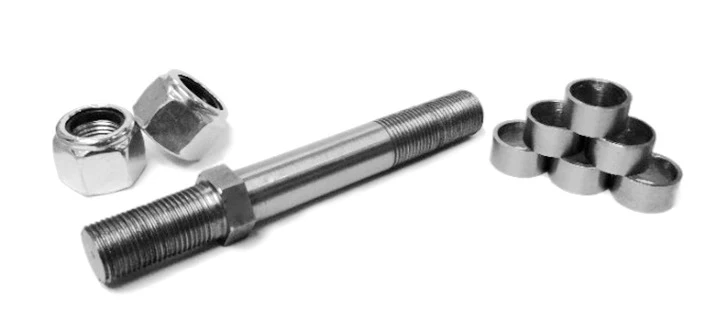

Kit Includes: One field installable stud. Includes two zinc plated lock nuts and six zinc plated spacers.
