SS-08
SS-08, Rod End Studs, Install Your Own 1/2-20 RH Straight Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$38.49 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | Grade 8 |
|---|---|
| Finish / plating | Bright Decorative Chrome Plating |
| Connection 1 thread | 1/2-20 RH |
| Connection 2 thread | 1/2-20 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $38.49 |
| 2+ | $27.84 |
| 3+ | $24.75 |
| 4+ | $24.33 |
| 5+ | $24.08 |
| 10+ | $18.15 |
| 25+ | $16.04 |
| 50+ | $14.58 |
| 100+ | $12.72 |
| 250+ | $10.88 |

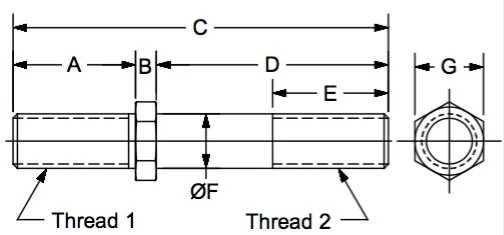

Drawing dimensions
| Thread 1 | 1/2-20 RH |
|---|---|
| Thread 2 | 1/2-20 RH |
| A | 1.125 |
| B | 0.250 |
| C | 4.500 |
| D | 3.125 |
| E | 1.250 |
| G | 0.625 |
| Finish | Bright Decorative Chrome Plating |
| Material | Grade 8 |
Lettered dimensions refer to the drawing for this part.
Product information
Kit Includes: One field installable stud. Includes two zinc plated lock nuts and six zinc plated spacers.
